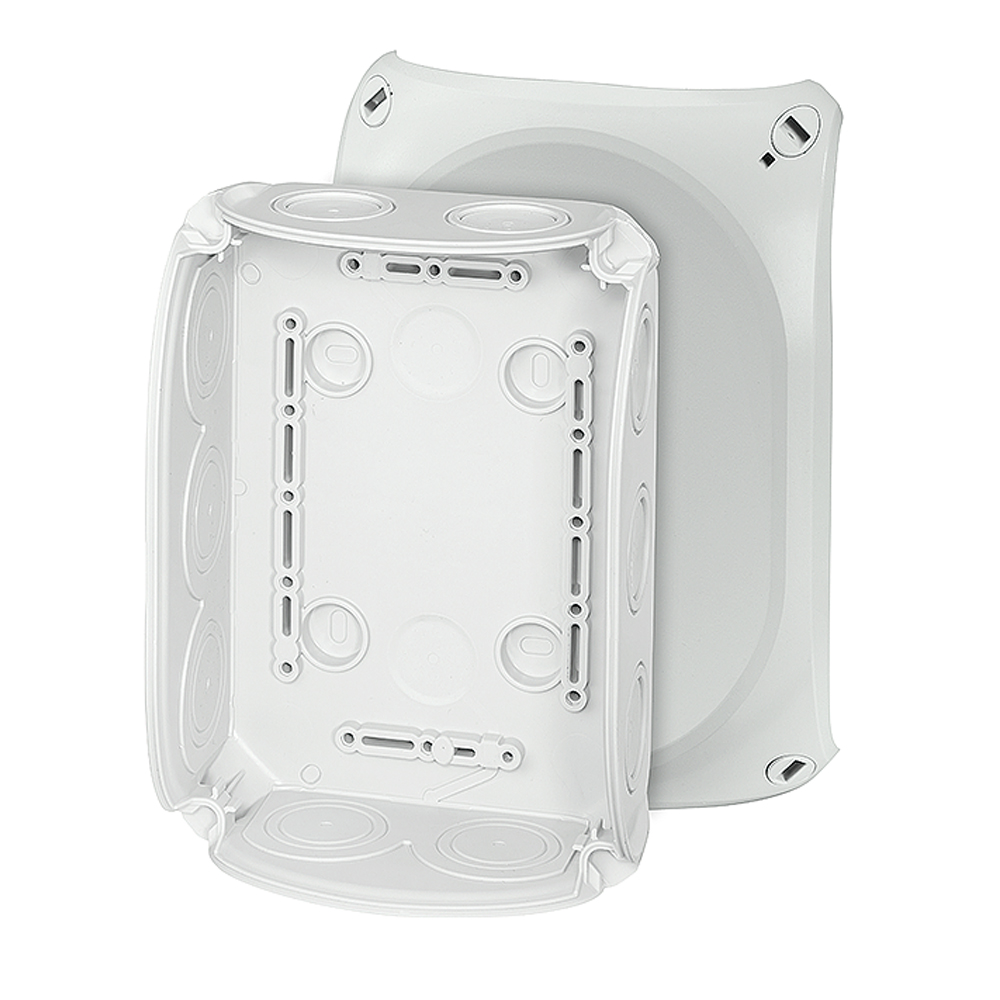

Sealcon #: DK1000G
Size: DK ENYCASE G - without Terminals
Material: DK 180 x 130 x 77 mm
Hensel #: DK 1000 G
Cover screws and mounting screws included.
without terminals
with elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-21.0 mm
with two cable entries in the bottom, sealing range Ø 9.0-20.0 mm
lid fasteners sealable without accessories
retaining strap and external brackets for wall fixing included
To close opened membranes use grommets type EDK.
Degree of protection = IP 66.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
![](https://www.sealconusa.com/images/products/industrial-enclosure/hensel/drawings/DK1000G.gif)
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 1000 V a.c./d.c.
Material PP (polypropylene)
Mounting width 150 mm
Mounting height 97 mm
Max. installation depth 62 mm
Width 180 mm
Height 130 mm
Depth 77 mm
Weight 0,241 kg
In accordance with IEC 60670-22ImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750° C
