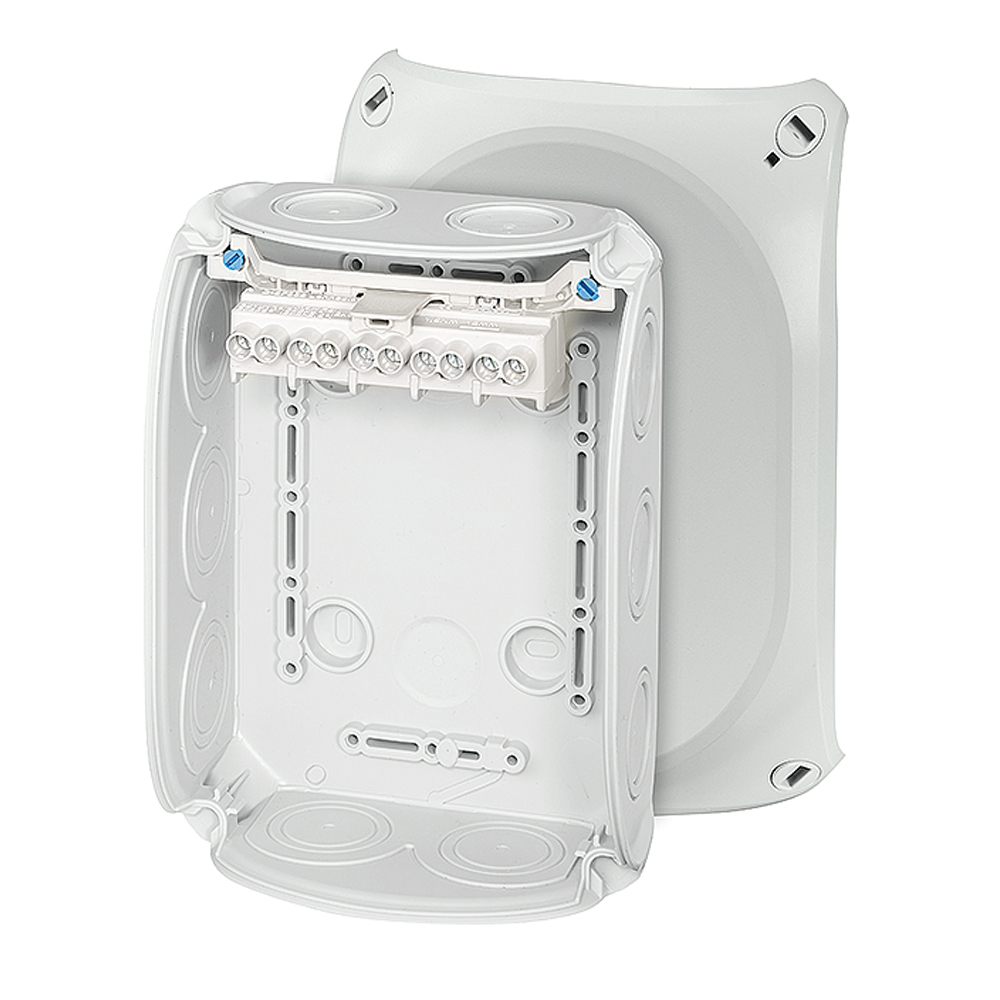

Sealcon #: DK1006G
Size: DK ENYCASE G
Material: DK 180 x 130 x 77 mm
Hensel #: DK 1006 G
Cover screws and mounting screws included.
1.5-6 mm², Cu 3~
Terminal with 2 clamping units per pole
5-pole per pole 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 2 x 10 mm² r / f
With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-21.0 mm
With two cable entries in the bottom, sealing range Ø 9.0-20.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
To close opened membranes use grommets type EDK.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 40 A
Material PP (polypropylene)
Width 180 mm
Height 130 mm
Depth 77 mm
Weight 0,318 kg
Tightening torque for terminal 1.5 Nm
In accordance with IEC 60670-22
VDE approval VDE (Association of German Electrical Engineers)
