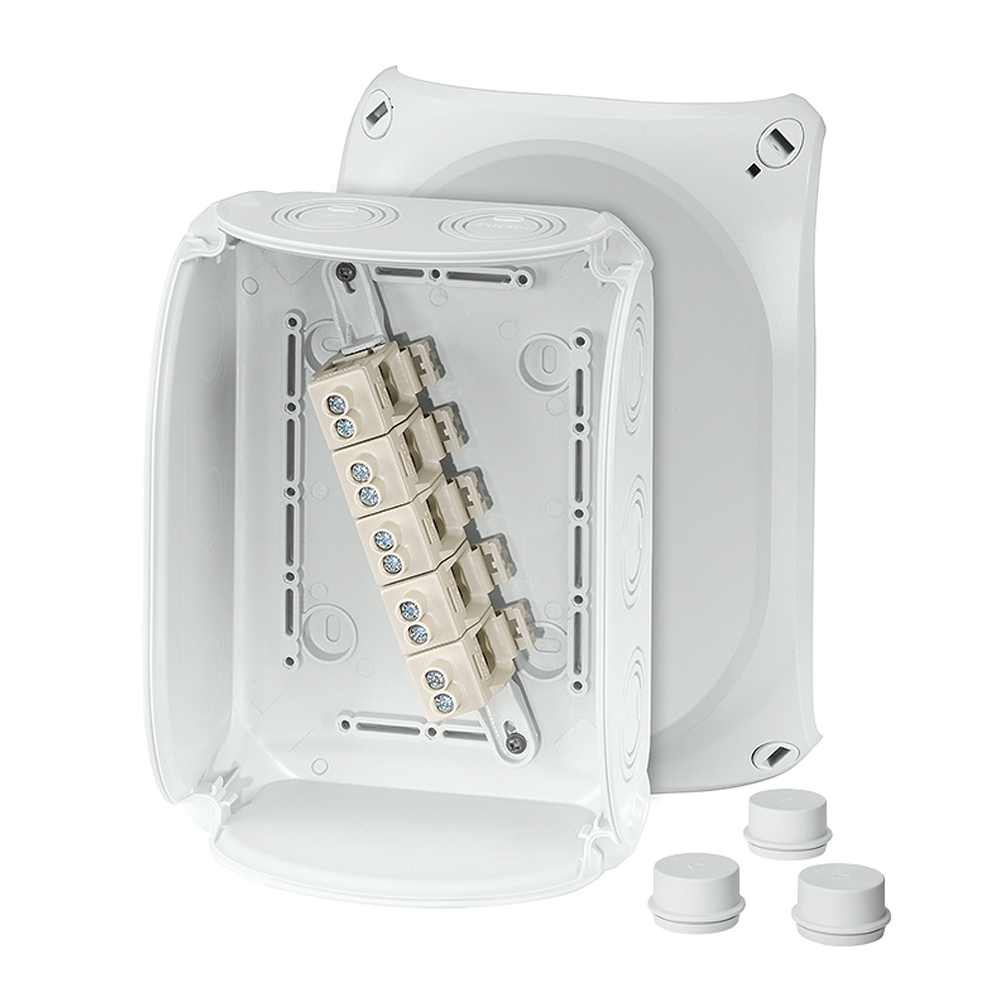

Sealcon #: DK1610G
Size: DK ENYCASE G
Material: DK 210 x 155 x 92 mm
Hensel #: DK 1610 G
Cover screws and mounting screws included.
2.5-10 mm², Cu 3~
Terminal with 2 clamping units per pole
5-pole per pole 6 x 2.5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 4 x 10 mm² r / f, 2 x 16 mm² s / f
Included cable entry: 3 x ESM 40, sealing range Ø 17-30 mm
With two cable entries M 32 from the rear side
Lid fasteners sealable without accessories
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 63 A
Material PC (Polycarbonate)
Degree of protection IP 55 (ESM)
Degree of protection IP 66 (AKM)
Width 210 mm
Height 155 mm
Depth 92 mm
Weight 0,58 kg
Tightening torque for terminal 2.0 Nm
In accordance with IEC 60670-22
VDE approval VDE (Association of German Electrical Engineers)
