Sealcon #: DK2516A
Size: DK ENYCASE A
Material: DK 255 x 205 x 112 mm
Hensel #: DK 2516 A
Cover screws and mounting screws included.
6-16 mm², Cu/Alu 3~
With terminals
5-pole per polel 4 x 6 mm² sol/f, 4 x 10 mm² sol/f, 4 x 16 mm² sol/s/f, conductors are inserted into the screw-type terminal

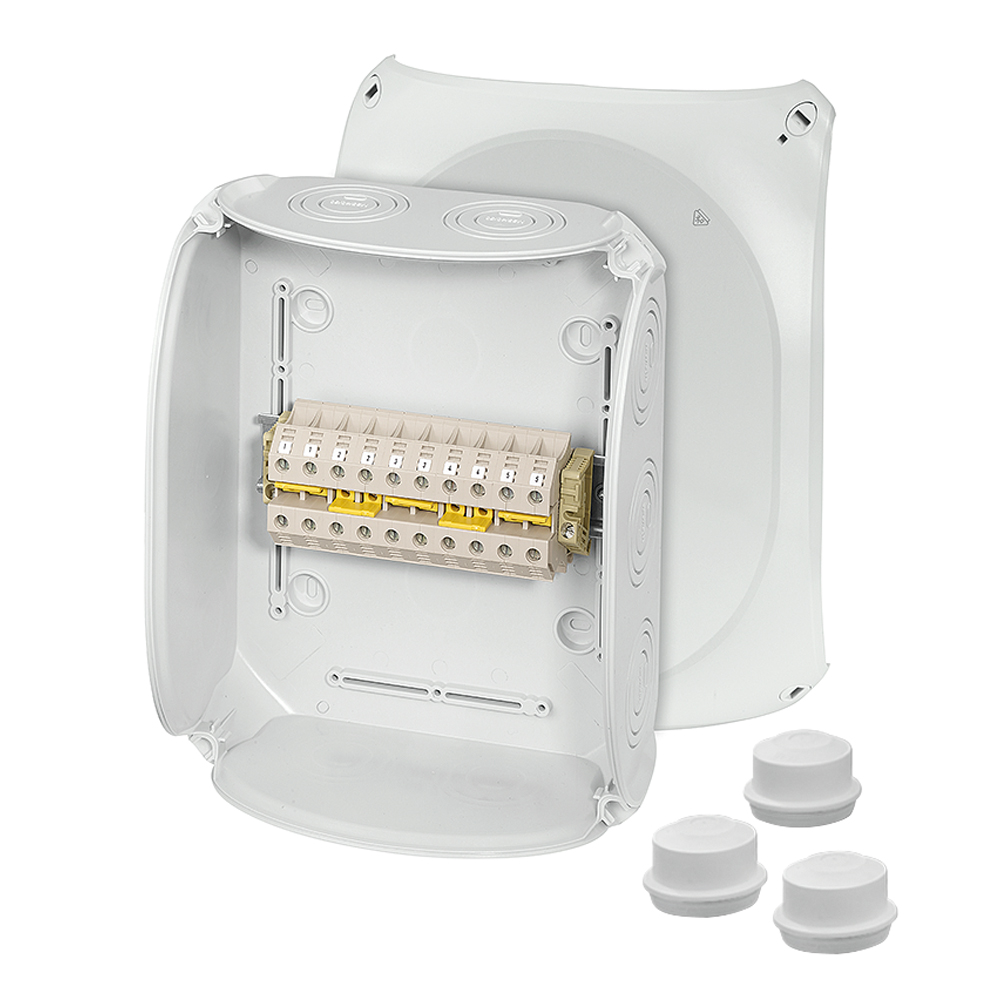

DK Cable junction boxes
Included cable entry: 3 x ESM 40, sealing range Ø 17-30 mm
With two cable entries M 32 from the rear side
Lid fasteners sealable without accessories
Before connecting, aluminum conductors must be pre-treated according to the appropriate technical recommendations
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
![](https://www.sealconusa.com/images/products/industrial-enclosure/hensel/drawings/DK2516A.gif)
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 76 A
Material PC (Polycarbonate)
Degree of protection IP 55 (ESM)
Degree of protection IP 66 (AKM)
Width 255 mm
Height 205 mm
Depth 112 mm
Weight 1,113 kg
Tightening torque for terminal 3.0 Nm
