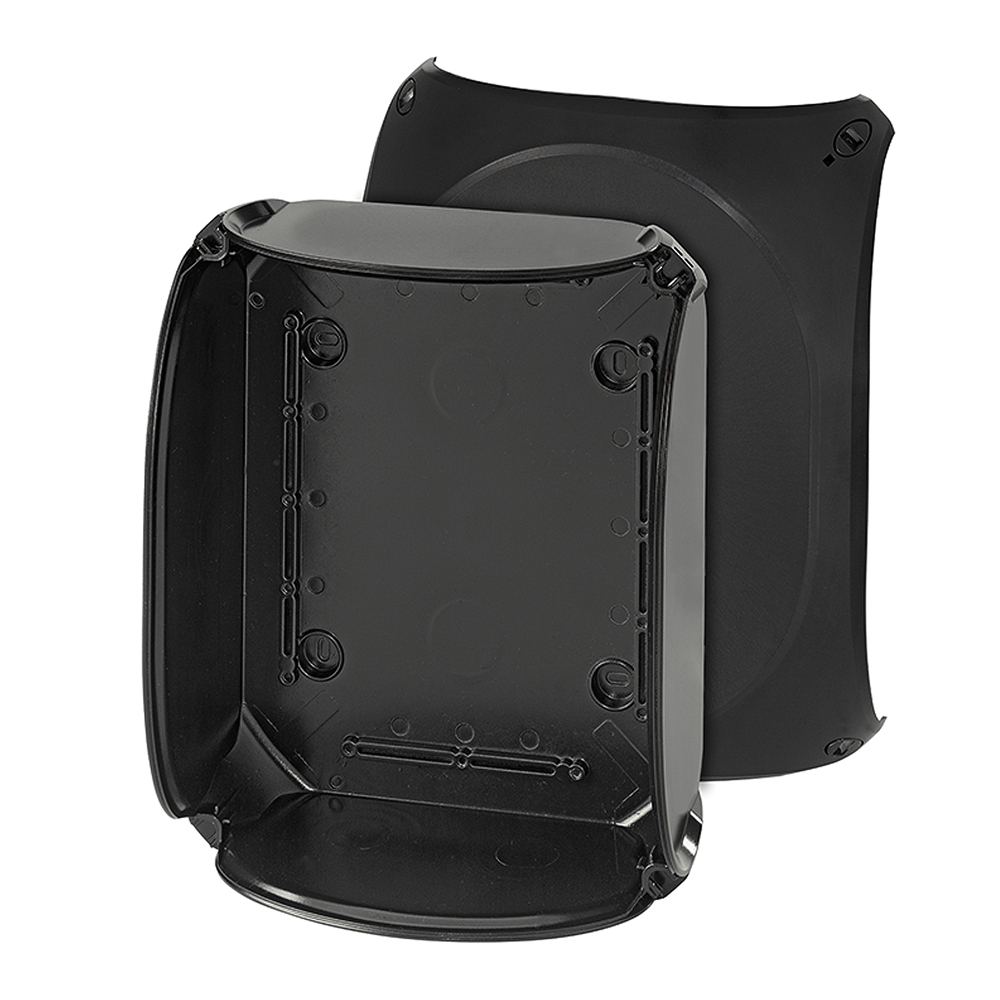

Sealcon #: EB25B
Size: EB ENYCASE B - without Terminals
Material: EB 170 x 220 x 96 mm
Hensel #: EB 25 B
Cover screws and mounting screws included.
Built-in dimensions W 170 x H 220 x D 96 mm
For installation equipment on DIN rails or mounting plates (order separately)
With opaque lid
Fastener for tool operation
Sealable
Box walls without knockouts
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 1000 V a.c./d.c.
Impact strength IK 09 (10 Joule)
Static load mounting plate or DIN rail = 4.4 kg
Lid = 1.2 kg
Power dissipation capability at Δϑ = 40 K Pde = 20 watts
Wall thickness ümbris = 2.5 mm
Lid = 2 mm
Material PC-GFS (polycarbonate)
Degree of protection IP 66
Mounting width 220 mm
Mounting height 170 mm
Max. installation depth 96 mm
Width 255 mm
Height 205 mm
Depth 112 mm
Weight 0,645 kg
In accordance with IEC 62208:2011ImpactFire Resistance
IK 09 (10 Joule)
Glow wire text in accordance with IEC 60695-2-11 650° C for boxes
