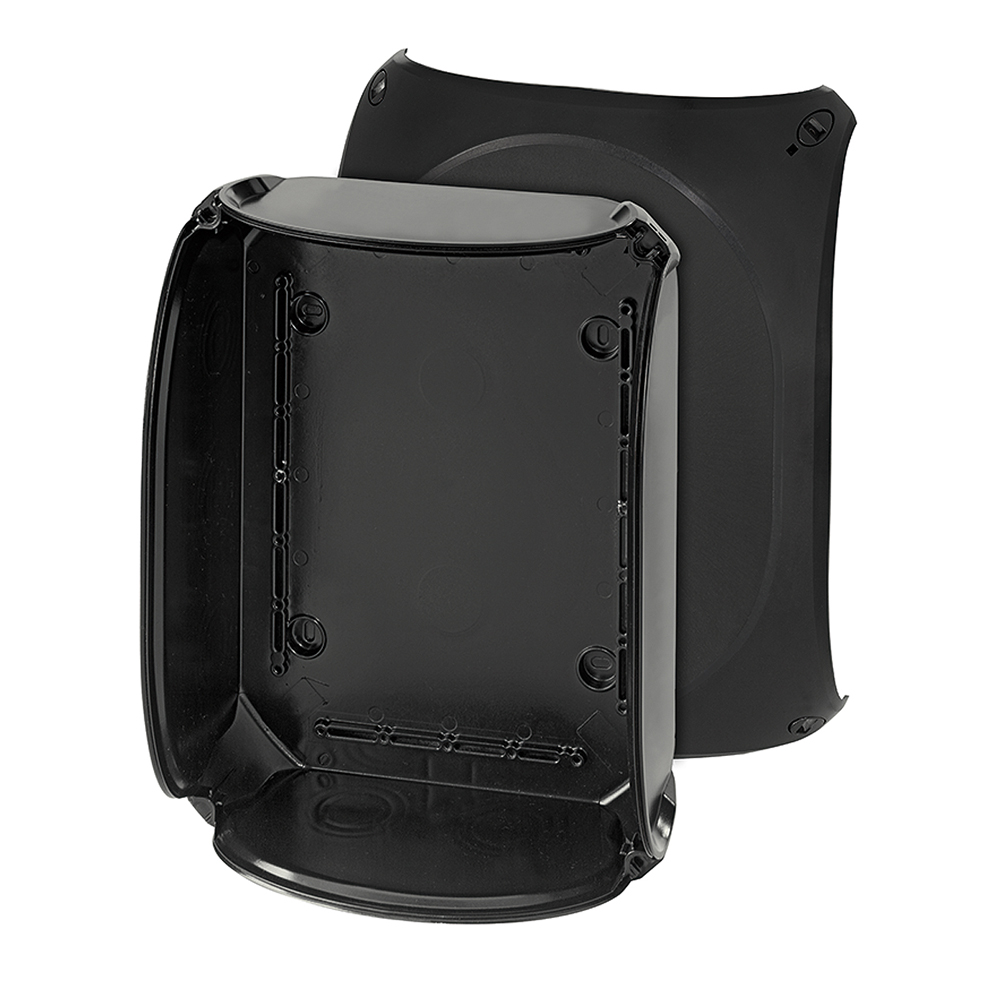

Sealcon #: EB35B
Size: EB ENYCASE B - without Terminals
Material: EB 190 x 260 x 106 mm
Hensel #: EB 35 B
Cover screws and mounting screws included.
Built-in dimensions W 190 x H 260 x D 106 mm
For installation equipment on DIN rails or mounting plates (order separately)
With opaque lid
Fastener for tool operation
Sealable
Box walls without knockouts
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 1000 V a.c./d.c.
Impact strength IK 09 (10 Joule)
Static load mounting plate or DIN rail = 5.1 kg
Lid = 1.7 kg
Power dissipation capability at Δϑ = 40 K Pde = 24 watts
Wall thickness enclosure = 2.8 mm
Lid = 2 mm
Material PC-GFS (polycarbonate)
Degree of protection IP 66
Mounting width 260 mm
Mounting height 190 mm
Max. installation depth 106 mm
Width 295 mm
Height 225 mm
Depth 122 mm
Weight 1,012 kg
In accordance with IEC 62208:2011ImpactFire Resistance
IK 09 (10 Joule)
Glow wire text in accordance with IEC 60695-2-11 650° C for boxes
