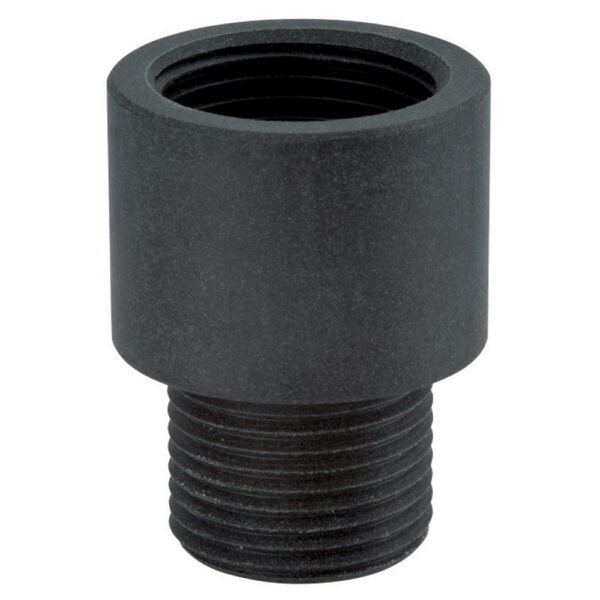

Sealcon #: EM-4050-BK
Color: Black
Cable Range: C
Material: Nylon
Hummel: E-M-PA
Hummel #: 1.239.4050.50
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Thread Type Male (A) | M40 x 1.5 |
|---|---|
| Female (B) | M50 x 1.5 |
| Height (H) | 0.77" (19.5 mm) |
| Thread Length (T) | 0.59" (15 mm) |
| Outer Diameter (D) | 1.18" (30 mm) |
-
Features
Is your thread size off by one size?
These Enlargers will solve that threading problem.Enlargers will allow you to convert holes which fit PG, NPT & Metric threads to a larger female thread of the same thread type to fit your application needs.
Thread Enlargers are available in Black Nylon and Nickel Plated Brass.
-
Materials: Black Nylon Optional O-Ring: Buna-N, FPM or Silicone Optional Seal Ring: Polyethylene or Fiber-reinforced Plastic
Operating Temperature will vary based off selected O-Ring and the material of the product it is applied to.
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
EAC
