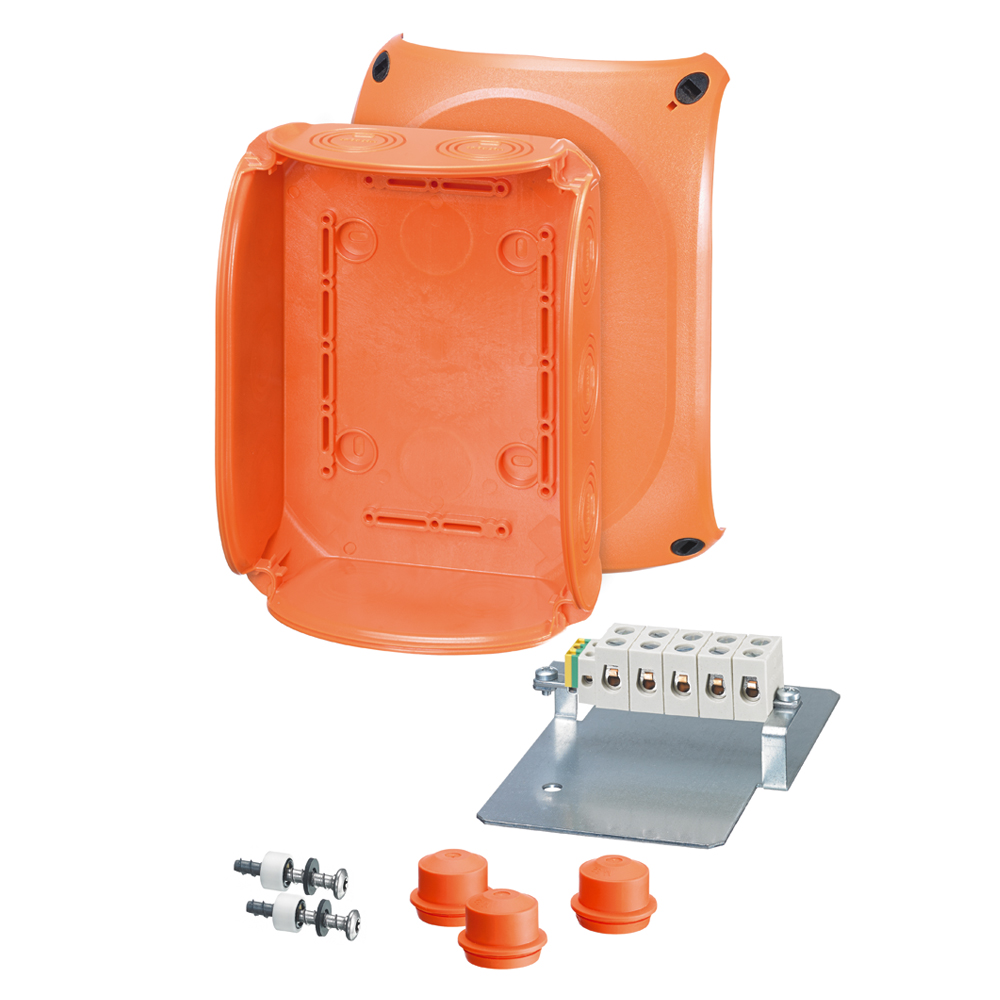

Cable junction box 1.5-6 mm², Cu
Connection box 1.5-6 mm2, Cu
5-pole per pole 12 x 1.5 mm² r, 8 x 2.5 mm² r, 6 x 4 mm² r, 4 x 6 mm² r
Terminal for 4 x 1,5 mm² r or 2 x 2,5 mm² r and PE terminal
Connecting terminal made from ceramic with resistance to high temperatures

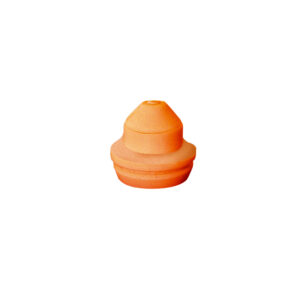

Included cable entry: 3 EDKF 32,
Sealing range: 8-23 mm
Intrinsic fire resistance in accordance with DIN 4102-12 (German standard) in combination with function-retaining cables
Tested with the cable manufacturers Dätwyler and Eupen for the intrinsic fire resistance E30 up to E90, see test certificate no.: P-MPA-E-15-018 valid Till 9 May 2026
Tested for insulation integrity PH120 in accordance with BS EN 50200 in connection with insulation retaining cables, see test certificate, download
Screw anchors enclosed can be used for concrete C20/25, limestone blocks KSV 12, building bricks MZ 12 and clinker bricks KS 12
For normal environment and protected outdoor
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Rated insulation voltage Ui = 400 V a.c./d.c.
Rated current: 41 A
Material PC-GFS (polycarbonate)
Tightening torque for terminal 2.0 Nm
0.5 Nm
Height 155 mm
Width 210 mm
Depth 92 mm
Weight 1,08 kg
In accordance with DIN 4102 part 12
IEC 60670-22
BS EN 50200Impact
IK09 (10 Joule)
