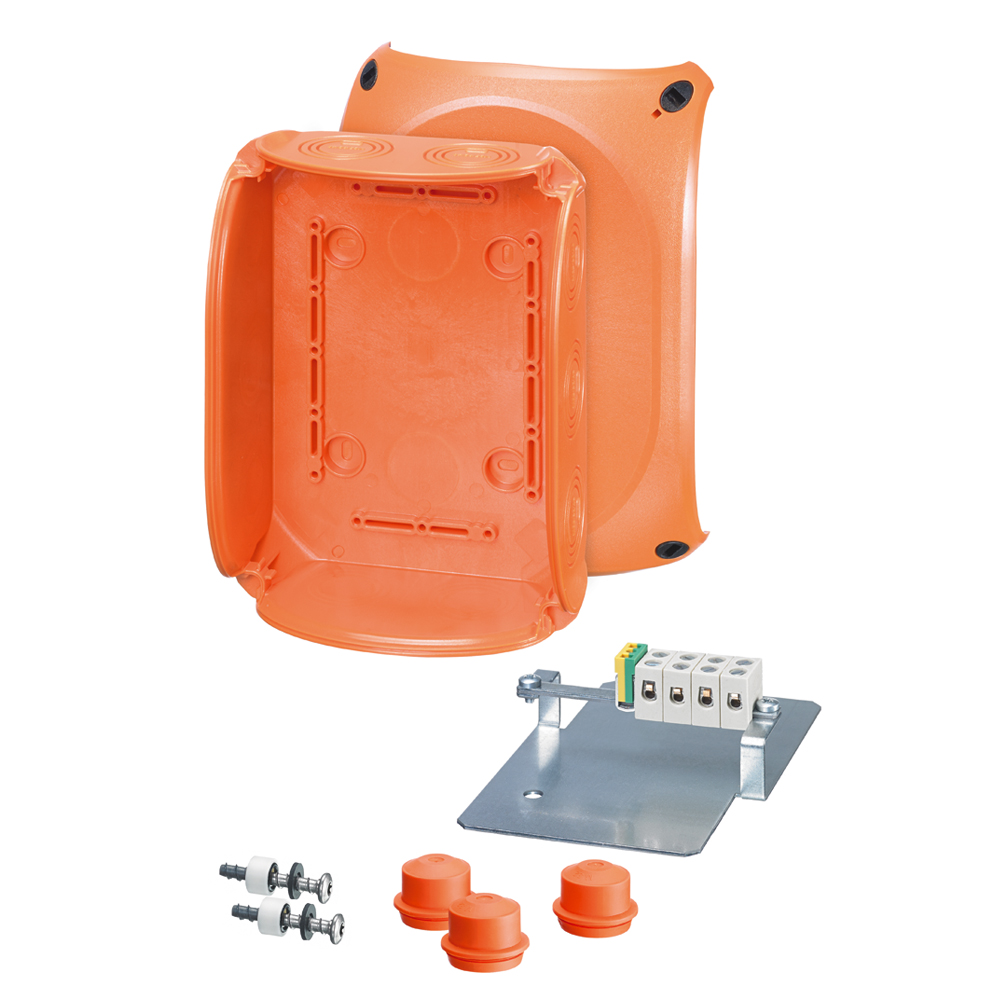

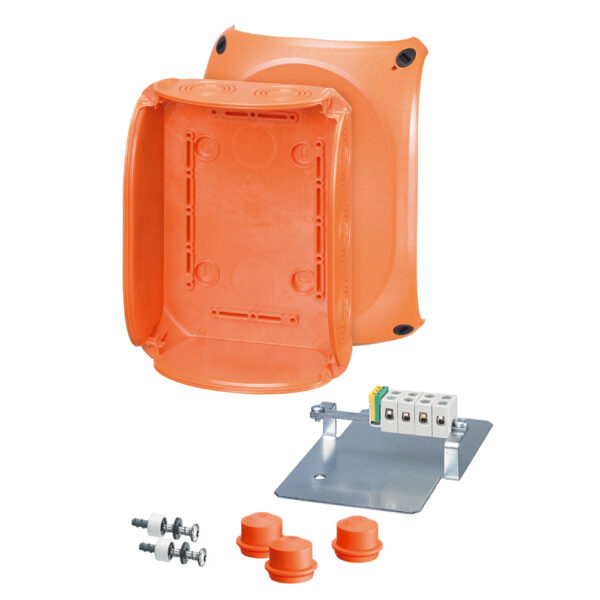

Cable junction box 1.5-2.5 mm², Cu
Connection box 1.5-10 mm², Cu
5-pole per pole 8 x 1.5 mm² r, 4 x 2.5 mm² r, 2 x 4 mm² r, 2 x 6 mm² r, 2 x 10 mm² sol (remove wire protection)
Connecting terminal made from ceramic with resistance to high temperatures
Included cable entry: 3 EDKF 32,
Sealing range: 8-23 mm
Intrinsic fire resistance in accordance with DIN 4102-12 (German standard) in combination with function-retaining cables
Tested with the cable manufacturers Dätwyler and Eupen for the intrinsic fire resistance E30 up to E90, see test certificate no.: P-MPA-E-15-018 valid till 9 May 2026
Tested for insulation integrity PH120 in accordance with BS EN 50200 in connection with insulation retaining cables
Screw anchors enclosed can be used for concrete C20/25, limestone blocks KSV 12, building bricks MZ 12 and clinker bricks KS 12
For normal environment and protected outdoor
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Rated insulation voltage Ui = 400 V a.c./d.c.
Rated current: 57 A
Material PC-GFS (polycarbonate)
Tightening torque for terminal 1.2 Nm
Height 155 mm
Width 210 mm
Depth 92 mm
Weight 0,966 kg
In accordance with DIN 4102 part 12
IEC 60670-22
BS EN 50200Impact
IK09 (10 Joule)
