Sealcon #: FK5210
Size: Hensel Accessories FK
Material: Connecting Device
Hensel #: FK 5210

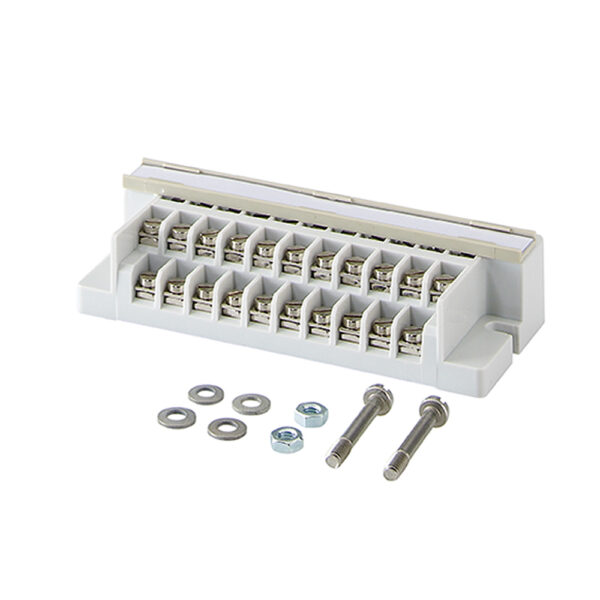

Connecting device for telecommunications
Screw-type connection for 10 pairs
Screw/screw connection technology
For installation on mounting brackets in FK 5000
Suitable for a solid conductor with diameter of 0.4 up to 0.8 mm or for two identical solid conductors with diameters of 0.4 up to 0.65 mm
With fixing screws
With labelling strips
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 100 V a.c.
Ui = 125 V d.c.
Rated current: Solid conductor up to Ø 0.6 mm max. 2.1 A
Solid conductor Ø 0.8 mm max. 5.0 A
Height 45 mm
Width 106 mm
Depth 23 mm
Weight 0,103 kg
