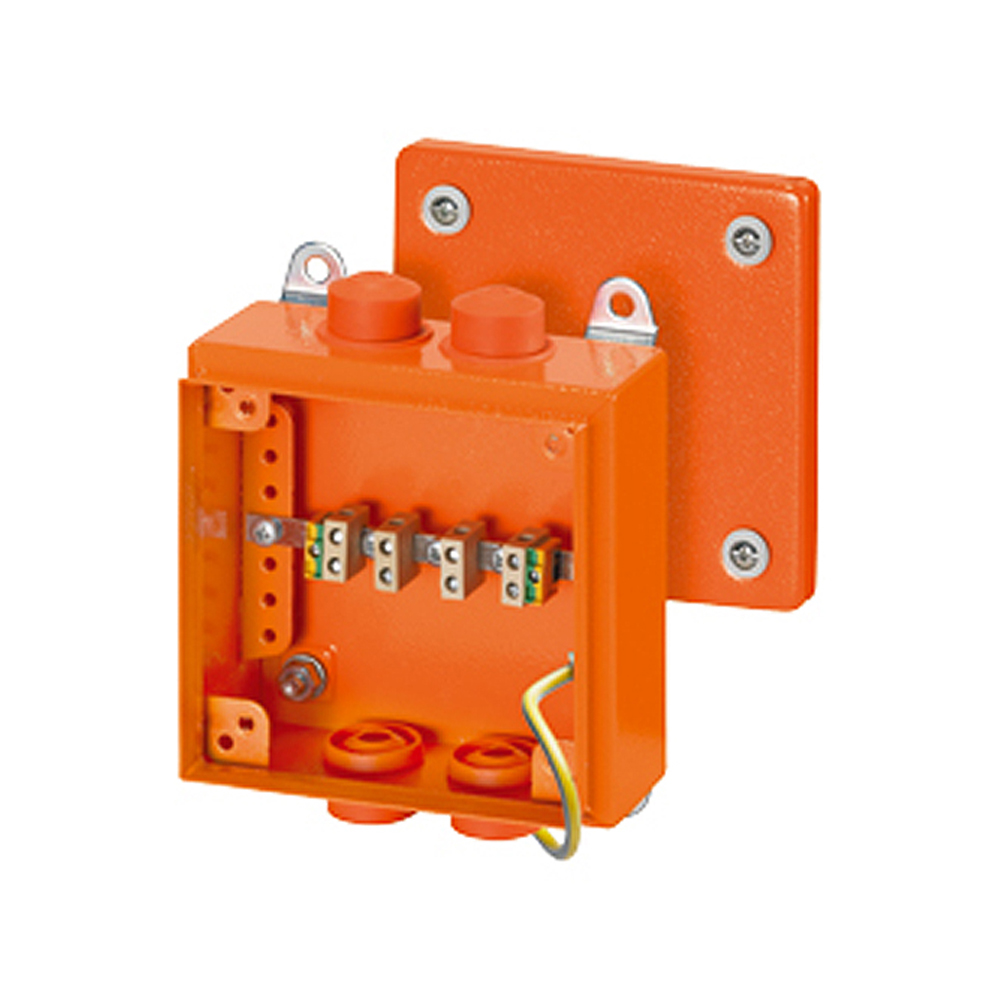

Cable junction box Ø 0.8 mm / 0.5-1.5 mm², Cu
Connection box Ø 0.8 mm / 0.5-4 mm², Cu
5-pole per pole 4 x Ø 0.8 mm / 0.5 mm² sol, 4 x 1.5 mm² r, 2 x 2.5 mm² r, 2 x 4 mm² sol
Connecting terminal made from ceramic with resistance to high temperatures
Mounted grommets 4 EDKF 32,sealing range: Ø 8-23 mm, closed
Intrinsic fire resistance in accordance with DIN 4102-12 (German standard) in combination with function-retaining cables
Tested with cable manufacturers Dätwyler, Eupen, Nexans, Studer, Pirelli and Lynenwerk for the intrinsic fire resistance E30 and E90, see test certificate
no.: P-MPA-E-02-032, valid till 20 March 2023, download available from
Tested for insulation integrity PH120 in accordance with BS EN 50200 in connection with insulation retaining cables
Available from www.hensel-electric.de > type – documents
Mounted using exterior wall fixings,
Bore hole 8.2 mm(for dowels refer to technical data)
For normal environment and protected outdoor
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Rated insulation voltage Ui = 400 V a.c./d.c.
Rated current: 32 A
Material Sheet steel, powder-coated
Tightening torque for terminal 0.5 Nm
Degree of protection IP 66
Height 150 mm
Width 150 mm
Depth 80 mm
Weight 1,493 kg
In accordance with DIN 4102 part 12
IEC 60670-22
BS EN 50200Impact
IK10 (20 Joule)
