Sealcon #: FP12MA-6S
Cable Range: 0.12" - 0.26" (3 to 6.5 mm)
Color: Stainless Steel
Material: 316L Stainless Steel
Hummel #: 1.740.1202.50
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 0.83" (21 mm) |
|---|---|
| Body Length (B) | 1.18" (30 mm) |
| Thread Length (D) | 0.24" (6 mm) |
| Wrench Flat (F1) | 0.55" (14 mm) |
PDF DOWNLOADS
Catalog Page-
Features
- Suitable in wash down (IP68) applications – avoiding bacteria and micro-organism deposits
- Smooth surface (no cavities, no sharp corners) preventing material from sticking
- Silicon seals for higher temp rating – 40°F to 248°F (-40°C to 120°C)
- Chemical resistant 316L Stainless Steel to sustain disinfectant, cleaners, acids and alkalis
- Cable Range: .20″ – .39″ (5 – 10 mm)
- EHEDG listed (European Hygienic Engineering & Design Group)
- Durable – Rugged Construction
- FDA Conforming Materials

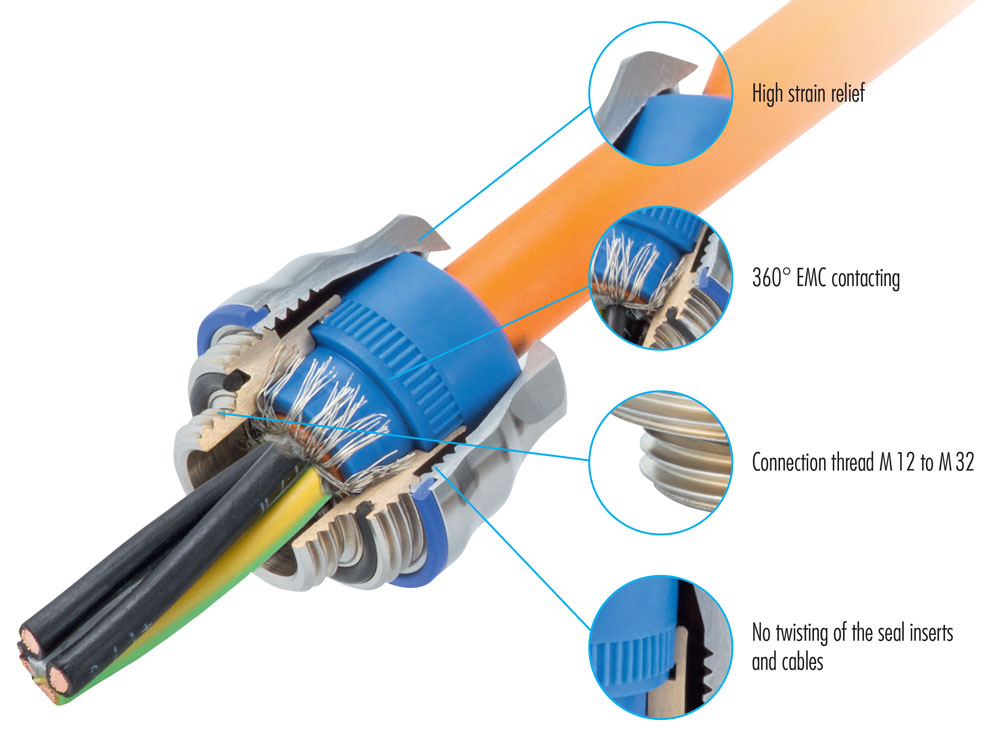

EMC ready for braided cable

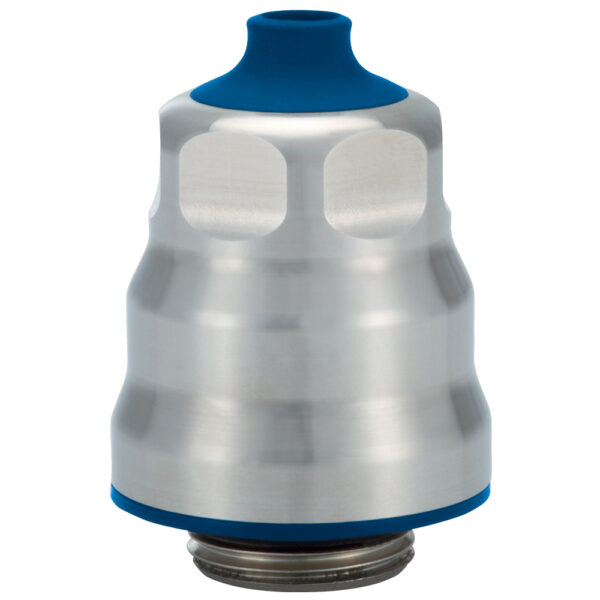

This 316L Stainless Steel Strain Relief Fitting with M12 x 1.5 Thread will provide your application with a product made of exceptional quality.
-
Materials
- Fittings: 316L Stainless Steel
Operating Temperature
-40C° to 120C° (-40°F to 248°F)
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Waste Electrical and Electronic Equipment Directive
