Sealcon #: K0400

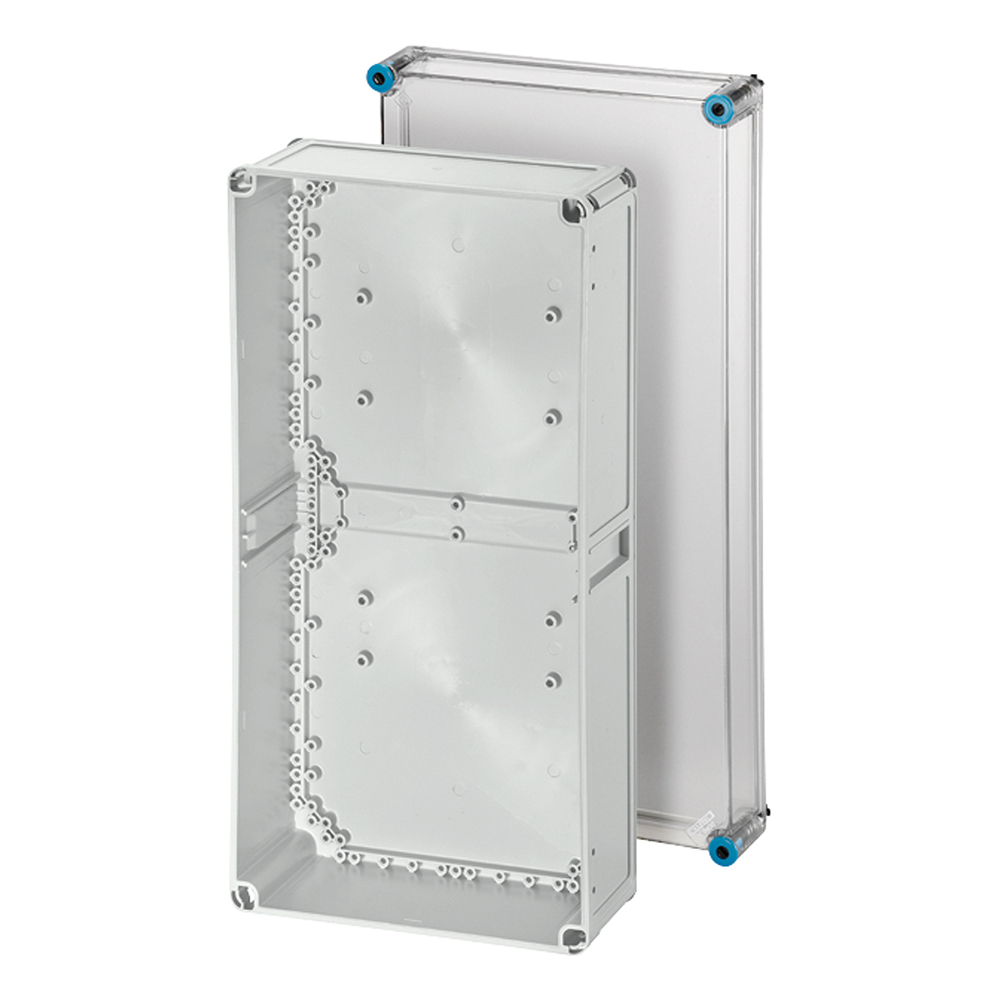

Size: K ENYCASE Empty Box
Material: K 275 x 575 x 150 mm
Hensel #: K 0400
Cover screws and mounting screws included.
Built-in dimensions W 275 x H 575 x D 150 mm
Enclosure size 4, type Mi
For installation equipment on DIN rails or mounting plates (order separately)
Max. installation depth with built-in mounting plate 146 mm,
With built-in DIN rail 135 mm
With transparent lid
Lid fasteners for tool operation
Sealable
Box walls without knockouts
Optional hinges for device installation in the lid
External brackets for wall fixing as accessories
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c. / 1000 V d.c.
Impact strength IK 08 (5 Joule)
Static load mounting plate or DIN rail = 9.2 kg
Lid = 3.2 kg
Power dissipation capability at Δϑ = 40 K Pde = 93 watts
Wall thickness enclosure = 3 mm
Lid = 3 mm
Material PC (Polycarbonate)
Degree of protection IP 66
Mounting width 275 mm
Mounting height 575 mm
Max. installation depth 146 with built-in mounting plate mm
Max. installation depth 135 with built-in DIN rail mm
Hidth 300 mm
Weight 600 mm
Depth 170 mm
Weight 2,933 kg
In accordance with IEC 62208:2011Impact
IK 08 (5 Joule)
