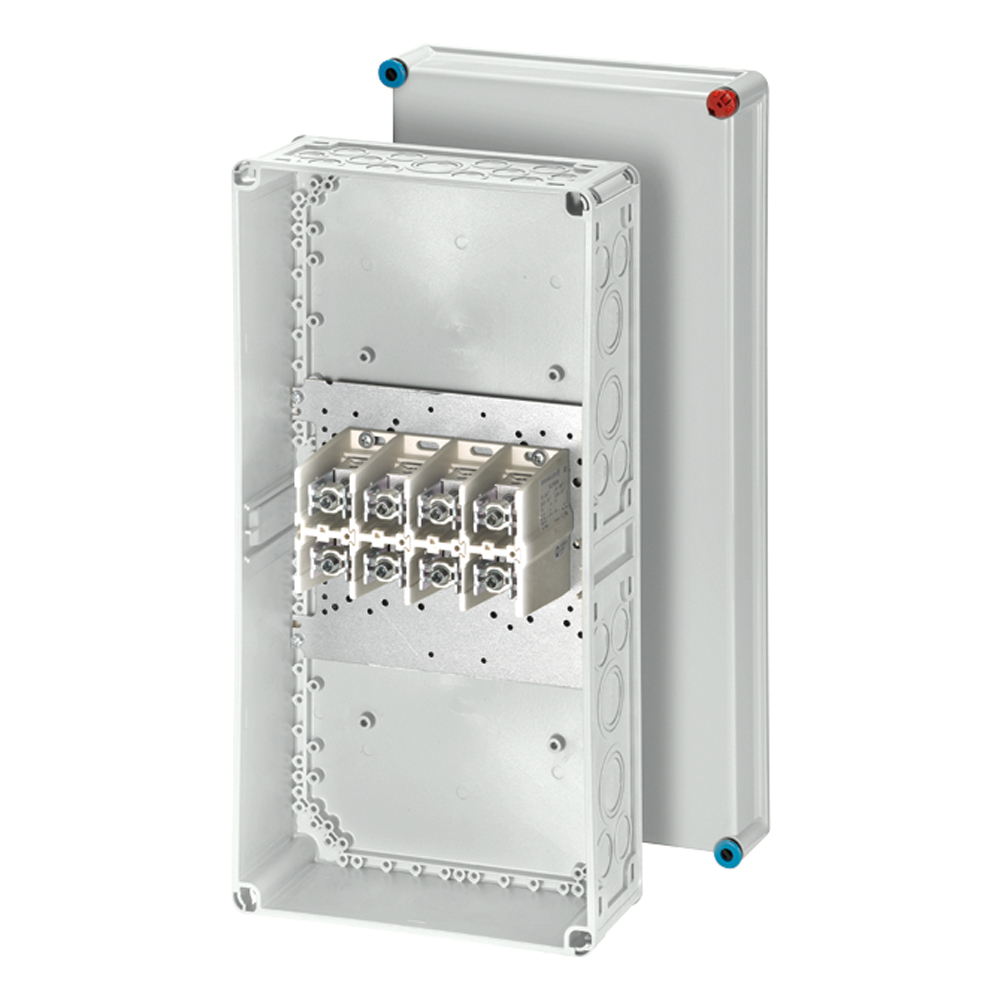

Sealcon #: K2404
Size: K ENYCASE
Material: K 600 x 300 x 170 mm
Hensel #: K 2404
Cover screws and mounting screws included.
25-240 mm², Cu/Alu 3~
With terminals
4-pole per pole 2 x 25-185/240 mm², 4 x 25-120 mm², conductors can be inserted from the front into the clamping unit
Sealable
Order cable glands, flanges and other accessories separately as required
Before connecting, aluminum conductors must be pre-treated according to the appropriate technical recommendations, see technical information aluminum conductors
For normal environment and protected outdoor
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 400 A
Material PC (Polycarbonate)
Degree of protection IP 65
Conductor cross section 2 x 25-50 Cu/Alu, sol (round) mm²
2 x 25-240 Cu/Alu, s / f (round) mm²
2 x 50-185 Cu/Alu, sol (sector) mm²
2 x 35-240 Cu, s (sector) mm²
Conductor cross section 2 x 95-185 Alu, s (sector) mm²
4 x 25-50 Cu/Alu, sol (round) mm²
4 x 25-120 Cu/Alu, s / f (round) mm²
4 x 50-120 Cu/Alu, sol (sector) mm²
Conductor cross section 4 x 35-120 Cu, s (sector) mm²
4 x 50-95 Alu, s (sector) mm²
Width 300 mm
Height 600 mm
Depth 170 mm
Weight 8,357 kg
Tightening torque for terminal 40.0 NmImpactFire Resistance
IK08 (5 Joule)
Glow wire test IEC 60695-2-11: 960 °C
