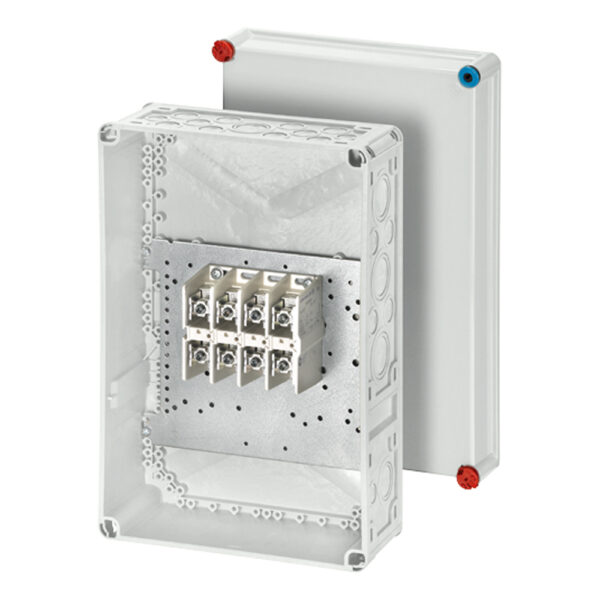

Sealcon #: K7042
Size: K ENYCASE
Material: K 450 x 300 x 170 mm
Hensel #: K 7042
Cover screws and mounting screws included.
10-95 mm² Cu/Alu 3~
With terminals
4-pole per pole 2 x 10-95 mm², conductors can be inserted from the front into the clamping unit, terminal technology
Sealable
Order cable glands, flanges and other accessories separately as required
Before connecting, aluminum conductors must be pre-treated according to the appropriate technical recommendations, see technical information
Aluminum conductors
For normal environment and protected outdoor
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 160 A
Material PC (Polycarbonate)
Degree of protection IP 65
Conductor cross section 2 x 10-50 Cu/Alu, sol (round) mm²
2 x 16-95 Cu/Alu, s / f (round) mm²
2 x 50-95 Cu/Alu, sol (sector) mm²
2 x 35-95 Cu, s (sector) mm²
Conductor cross section 35-70 Alu, s (sector) mm²
Width 300 mm
Height 450 mm
Depth 170 mm
Weight 5,859 kg
Tightening torque for terminal 20.0 NmImpactFire Resistance
IK08 (5 Joule)
Glow wire test IEC 60695-2-11: 960 °C
