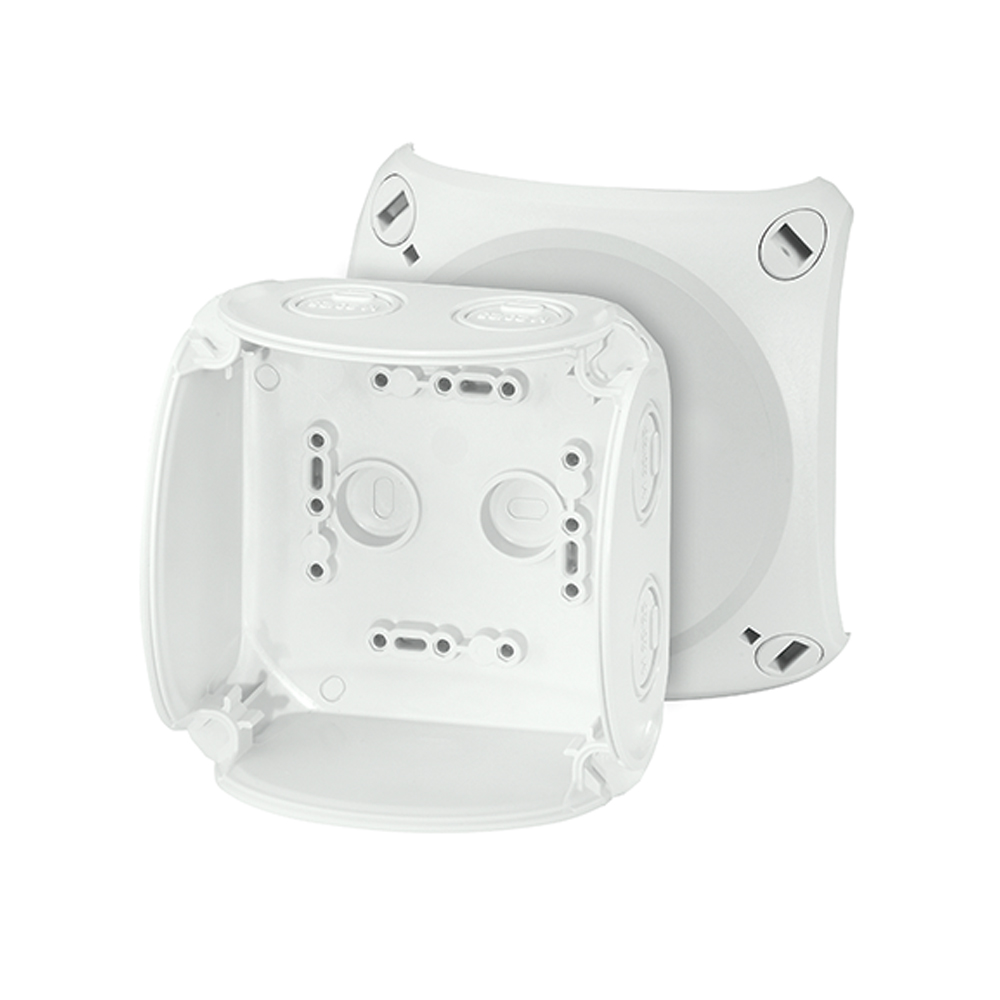

Sealcon #: KF0400G
Size: KF ENYCASE G
Material: KF 104 x 104 x 70 mm
Hensel #: KF 0400 G
Cover screws and mounting screws included.
Without terminals
Cable entries via knockouts
“Weatherproof” resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
saltwater-proof
“Offshore applications”
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 1000 V a.c./d.c.
Material PC-GFS (polycarbonate)
Degree of protection IP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
Mounting width 83 mm
Mounting height 83 mm
Max. installation depth 55 mm
Width 104 mm
Height 104 mm
Depth 70 mm
Weight 0,145 kg
In accordance with IEC 60670-22
In accordance with DNV GL - Certificate No: TAE00000EEImpactFire Resistance
IK09 (10 Joule)
Glow wire test IEC 60695-2-11: 960° C
VDE approval VDE (Association of German Electrical Engineers)
German Lloyd
