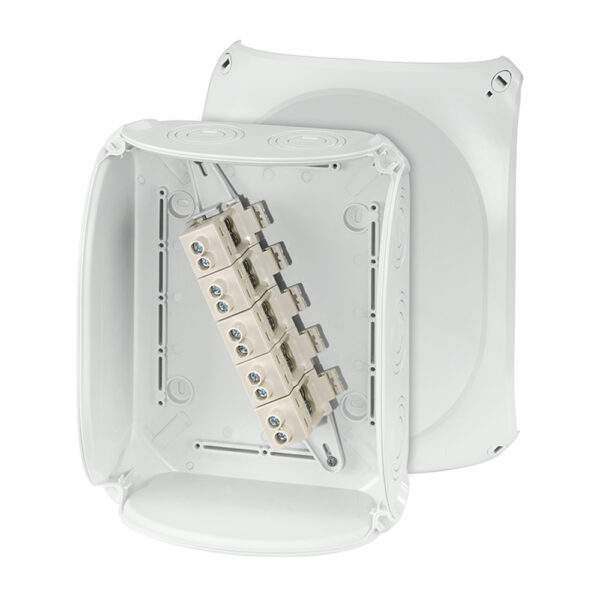

Sealcon #: KF2525G
Size: KF ENYCASE G
Material: KF 255 x 205 x 112 mm
Hensel #: KF 2525 G
Cover screws and mounting screws included.
6-25 mm², Cu 3~
Terminal with 2 clamping units per pole
5-pole per pole 6 x 6 mm² r / f, 4 x 10 mm² r / f, 4 x 16 mm² s / f, 4 x 25 mm² s / f, 2 x 35 mm² s / f
With two cable entries M 32 from the rear side
Cable entries via knockouts, order AKM separately (see cable entry systems LES)
“Weatherproof” resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
saltwater-proof
“Offshore applications”
Lid fasteners sealable without accessories
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 102 A
Material PC-GFS (polycarbonate)
Degree of protection IP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
Width 255 mm
Height 205 mm
Depth 112 mm
Weight 0,842 kg
Tightening torque for terminal 3.0 Nm
In accordance with IEC 60670-22
In accordance with DNV GL - Certificate No: TAE00000EEImpactFire Resistance
IK09 (10 Joule)
Glow wire test IEC 60695-2-11: 960° C
VDE approval VDE (Association of German Electrical Engineers)
German Lloyd
