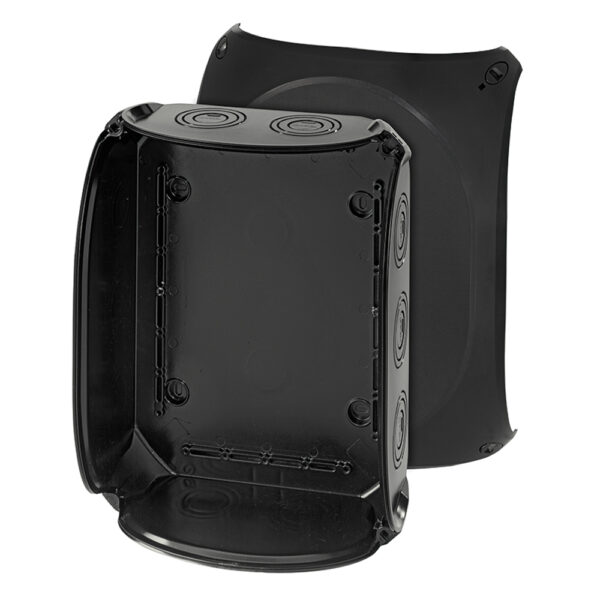

Sealcon #: KF3500B
Size: KF ENYCASE B
Material: KF 295 x 225 x 122 mm
Hensel #: KF 3500 B
Cover screws and mounting screws included.
Without terminals
Cable entries via knockouts
With two cable entries M 32 from the rear side
“Weatherproof” resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
Saltwater-proof
“Offshore applications”
Lid fasteners sealable without accessories
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 1000 V a.c./d.c.
Material PC-GFS (polycarbonate)
Degree of protection IP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
Mounting width 260 mm
Mounting height 190 mm
Max. installation depth 106 mm
Width 295 mm
Height 225 mm
Depth 122 mm
Weight 1,024 kg
In accordance with IEC 60670-22
In accordance with DNV GL - Certificate No: TAE00000EEImpact
IK09 (10 Joule)
VDE approval VDE (Association of German Electrical Engineers)
German Lloyd
