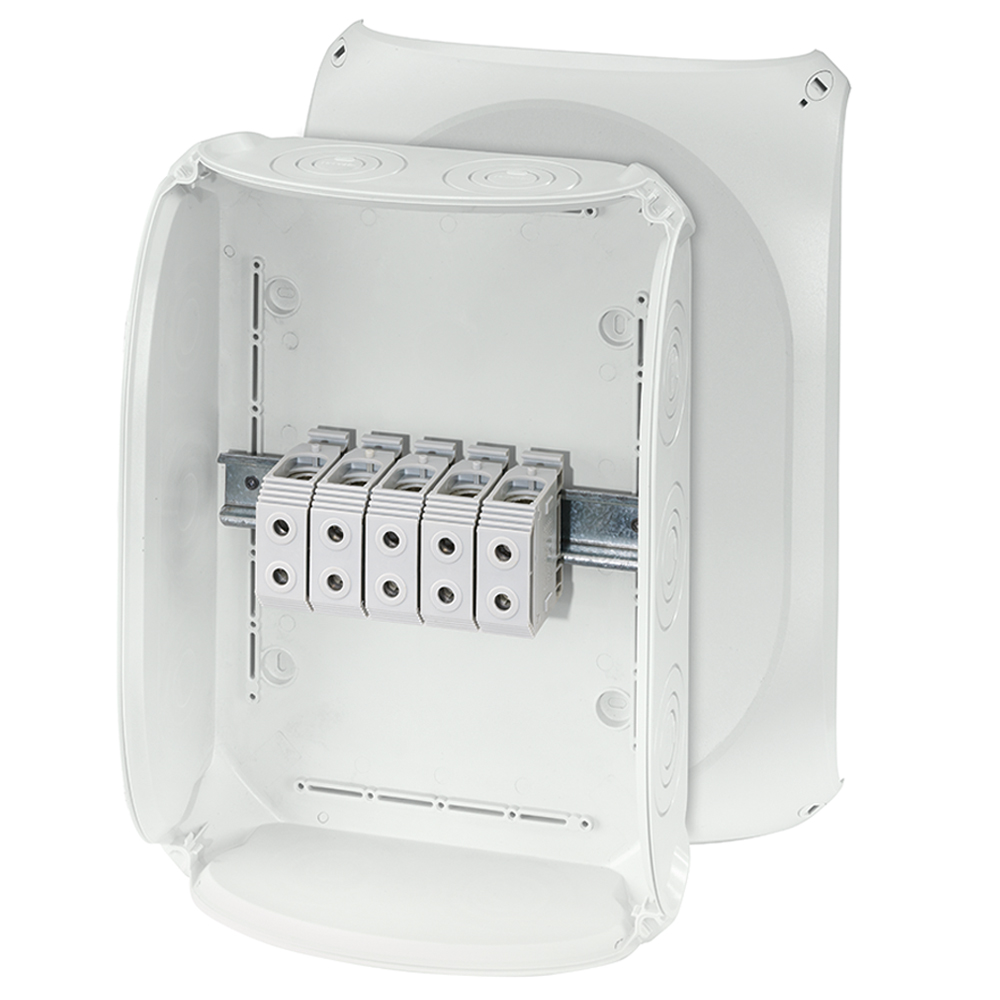

Sealcon #: KF5050G
Size: KF ENYCASE G
Material: KF 355 x 255 x 122 mm
Hensel #: KF 5050 G
Cover screws and mounting screws included.
16-50 mm², Cu 3~
Terminal with 2 clamping units per pole
5-pole per pole 6 x 16 mm² s, 4 x 25 mm² s, 4 x 35 mm² s, 4 x 50 mm² s
With two cable entries M 32 from the rear side
Cable entries via knockouts
“Weatherproof” resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
saltwater-proof
“Offshore applications”
Lid fasteners sealable without accessories
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 150 A
Material PC-GFS (polycarbonate)
Degree of protection IP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
Width 355 mm
Height 255 mm
Depth 122 mm
Weight 2,55 kg
Tightening torque for terminal 12.0 Nm
In accordance with IEC 60670-22
In accordance with Russian Maritime Register of Shipping, technical documentation is approved by the letter No. 250-A-1180-108795ImpactFire Resistance
IK09 (10 Joule)
Glow wire test IEC 60695-2-11: 960° C
VDE approval VDE (Association of German Electrical Engineers)
German Lloyd
