Sealcon #: CD12MW-RV
Cable Range: 0.16" - 0.24" (4 to 6 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: WADI-A-FKM Metric
Hummel #: 1.106.1200.58
Locking Nut Sold Separately
Limited Quantities
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 0.47" (12 mm) |
|---|---|
| Body Length (B) | 0.71" (18 mm) |
| Thread Length (D) | 0.2" (5 mm) |
| Wrench Flat (F1) | 0.55" (14 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
- Halogen- and Phosphorous free materials
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS
Also Available in Elongated and EMI

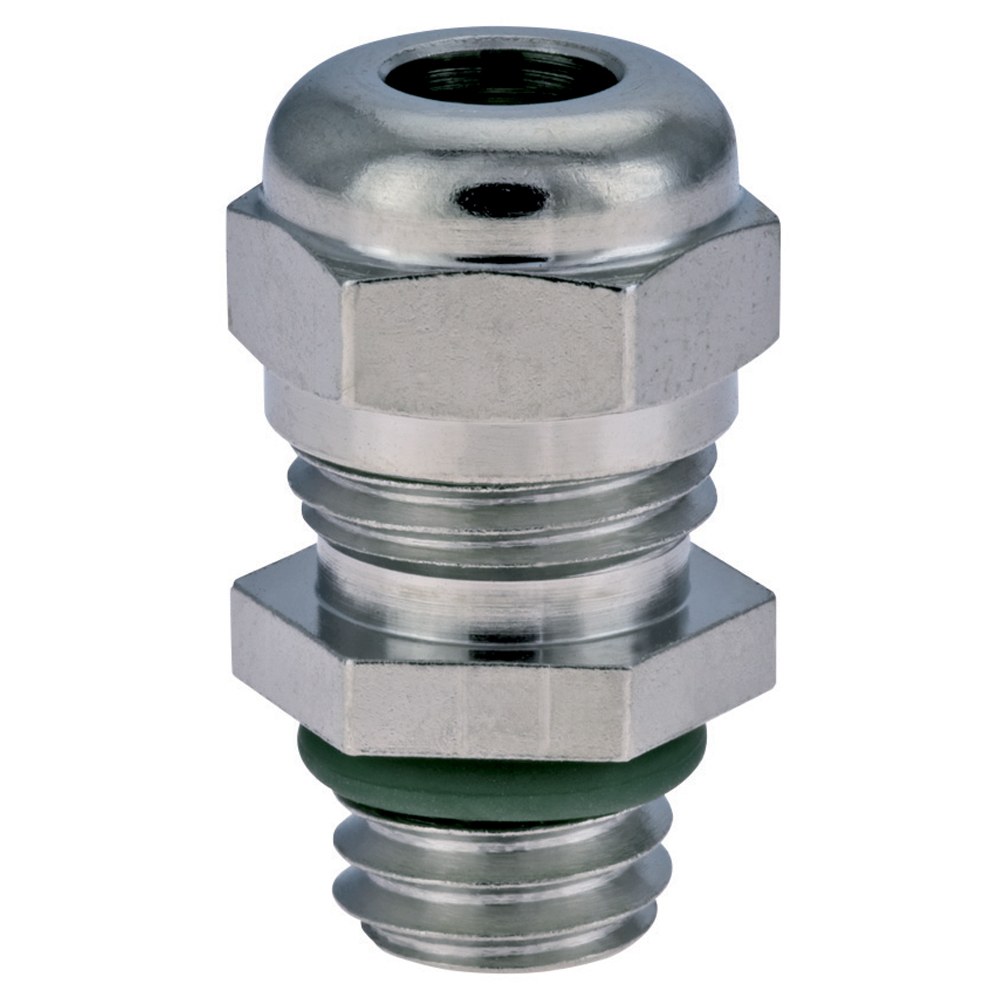

This Miniature Nickel Plated Brass Strain Relief with M12 x 1.5 Thread will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
IP 68 - 1bar / 30min- Fittings: Nickel Plated Brass
- Optional ORing: FKM or Silicone
Operating Temperature
-25C° to 200C° (-13°F to 392°F)
Restriction of Hazardous Substances in Electrical and Electronic Equipment
CE approval CE (Certified European Approval)
