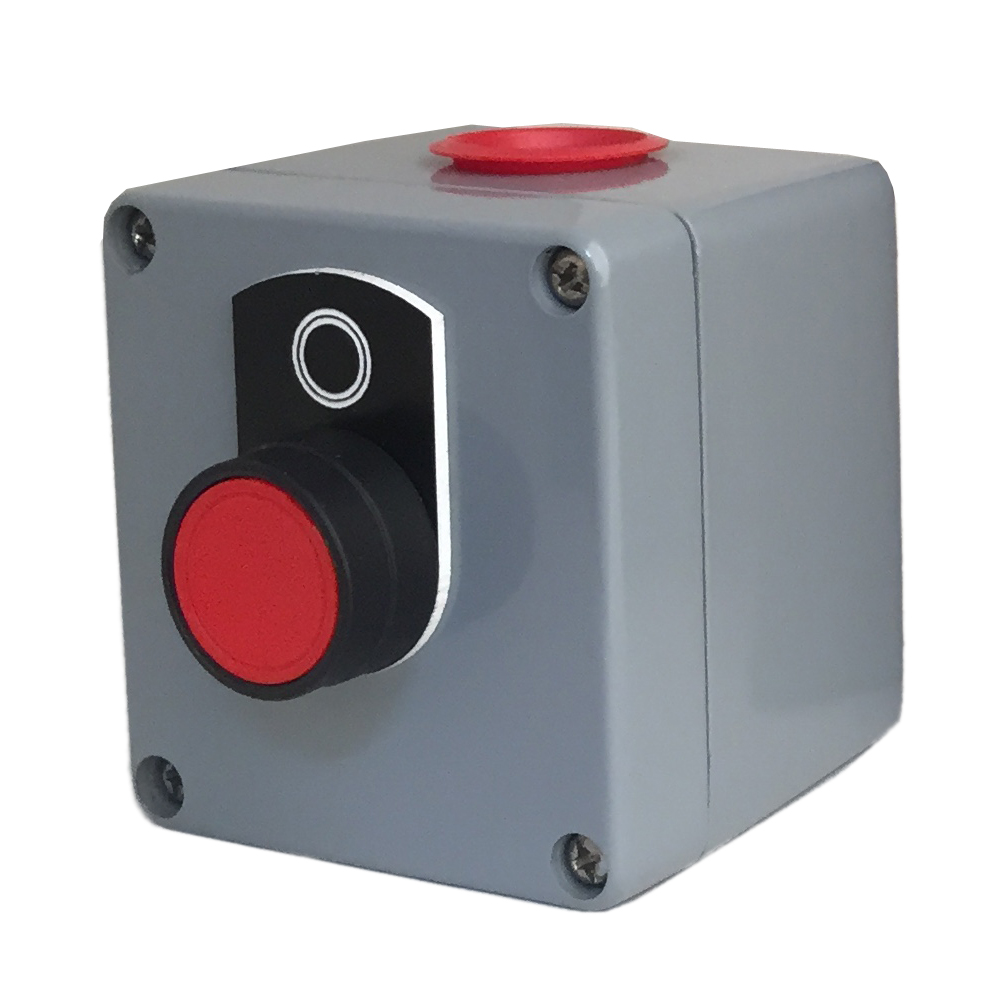

Aluminum Pushbutton Enclosure | One Button Red | MC-1BS-NC-F

Aluminum Pushbutton Enclosure | One Button Red | MC-1BS-NC-F
Sealcon #: MC-1BS-NC-F
Size: 3.15(W) x 2.95(H) x 2.24(D) (80.01 x 74.93 x 56.896 mm)
Material: Aluminum
Sealcon #: MC-1BS-NC-F
Cover screws and mounting screws included.

Button: One, Color: Red, Momentary

Flush, Spring return pushbutton

Contact: One: – NC (Normally Closed)

One: Spacers

Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page

  • Features

    Features and Benefits

    • Corrosion resistant in salt laden atmospheres
    • Die Cast in Al Si 12 grade (LM24) Aluminum alloy
    • 22 mm pushbutton holes
    • 1/2″ NPT or 7/8″ Hole on top of enclosure
    • Hazardous area approved
    • Fully assembled with buttons


  • Impact
    >7Nm
    Operating Temperature
    -40C° to 80C° (-40°F to 176°F)


  • APPROVALS
