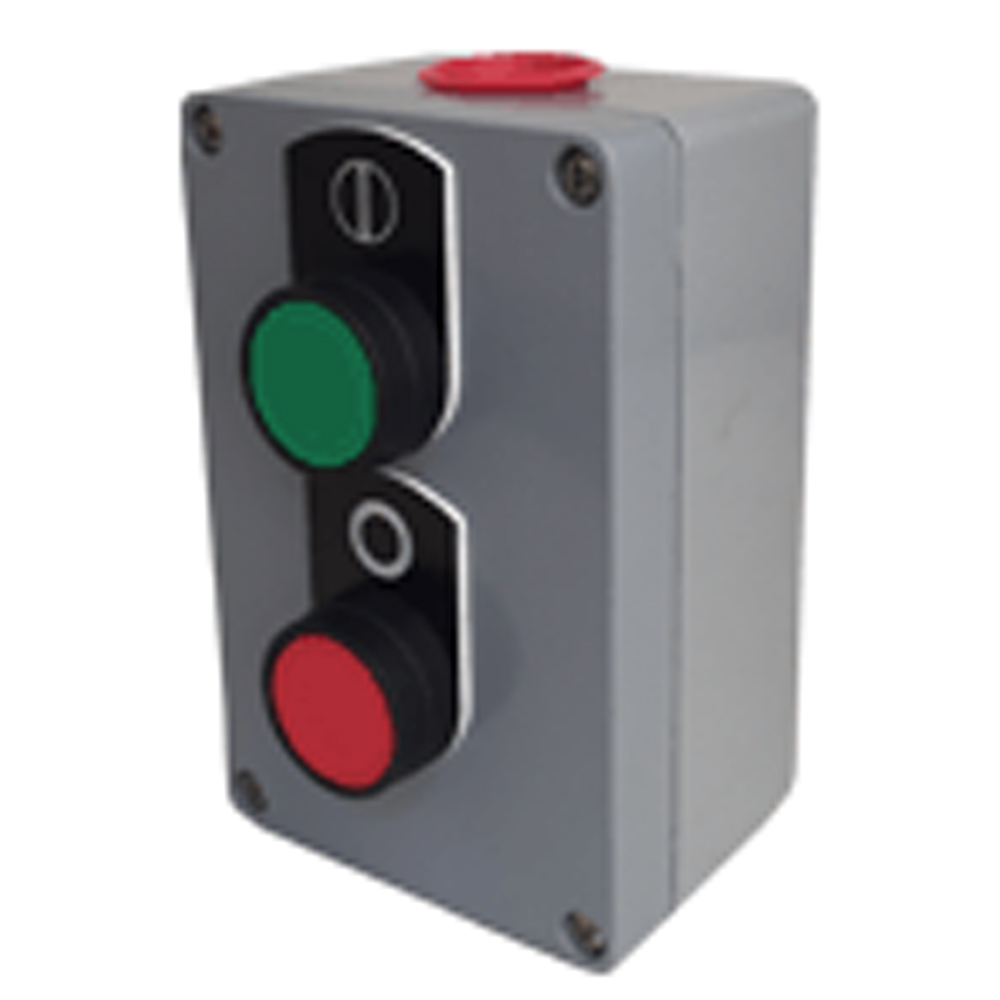

Aluminum Pushbutton Enclosure | Two Button | MC-2B-NONC-F

Aluminum Pushbutton Enclosure | Two Button | MC-2B-NONC-F
Sealcon #: MC-2B-NONC-F
Size: 4.92(W) x 3.15(H) x 2.24 (D) (124.968 x 80.01 x 56.896 mm)
Material: Aluminum
Sealcon #: MC-2B-NONC-F
Cover screws and mounting screws included.

Buttons: One Green, Momentary

Flush Spring Return Pushbutton

One Red, Momentary – Flush Spring Return Pushbutton

Contacts: One: NO (Normally Open)

One: NC (Normally Closed) Two: Spacers

Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page

  • Features

    Features and Benefits

    • Corrosion resistant in salt laden atmospheres
    • Die Cast in Al Si 12 grade (LM24) Aluminum alloy
    • 22 mm pushbutton holes
    • 1/2″ NPT or 7/8″ Hole on top of enclosure
    • Hazardous area approved
    • Fully assembled with buttons


  • Impact
    >7Nm
    Operating Temperature
    -40C° to 80C° (-40°F to 176°F)


  • APPROVALS
