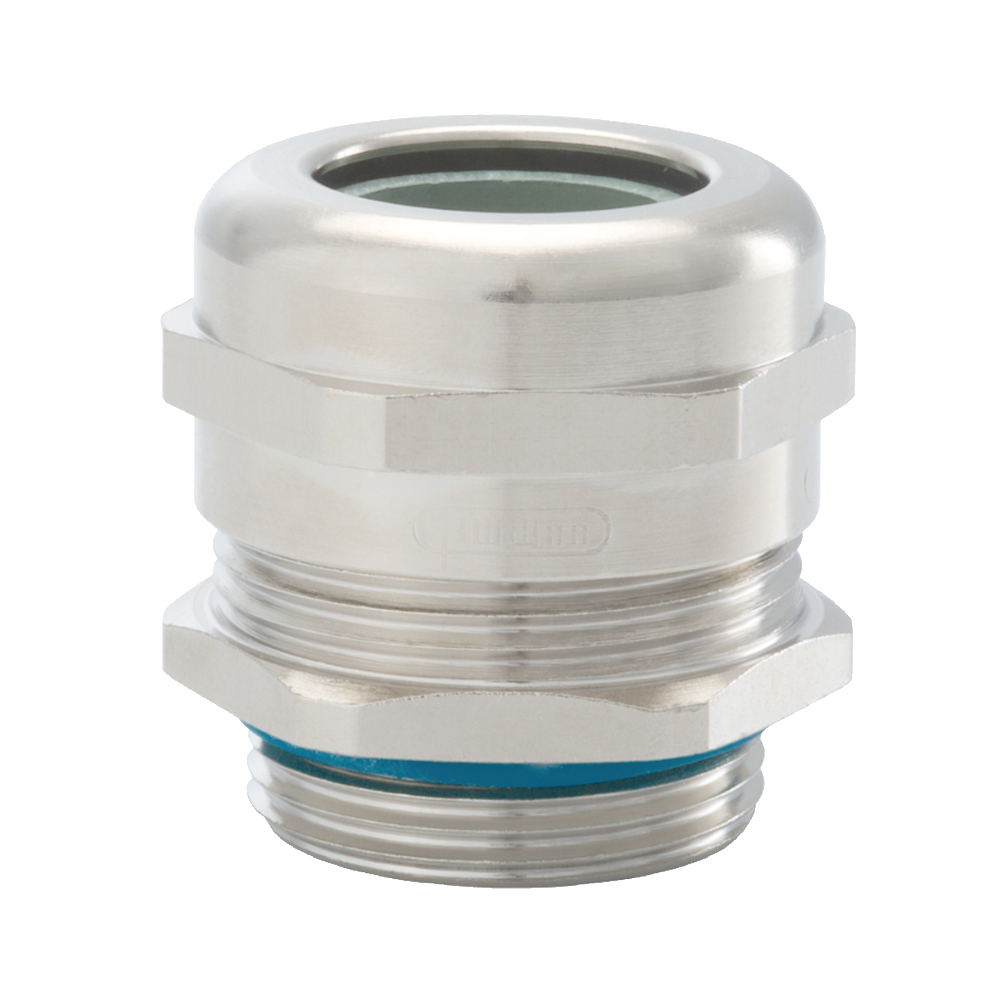

Sealcon #: CD29AR-EV
Cable Range: 0.51" - 0.79" (13 to 20 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-PVDF-EMC
Hummel #: 1.698.2900.15
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 1.47" (37.3 mm) |
|---|---|
| Body Length (B) | 1.14" (29 mm) |
| Thread Length (D) | 0.31" (8 mm) |
| Wrench Flat (F1) | 1.57" (40 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
- Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous-free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
This EMI/RFI Proof Nickel Plated Brass Strain Relief with PG 36 Thread will provide your application with a product made of exceptional quality.
Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.
-
Pressure RatingMaterials
150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K- Fittings: Nickel Plated Brass
- Form Seal: FKM
Operating Temperature
-35C° to 150C° (-31°F to 302°F)
Restriction of Hazardous Substances in Electrical and Electronic Equipment
UL approval UL (Listed Underwriters Laboratories)
CSA approval CSA (Canadian Standard Association)
Waste Electrical and Electronic Equipment Directive
EAC
CE approval CE (Certified European Approval)
German Lloyd
