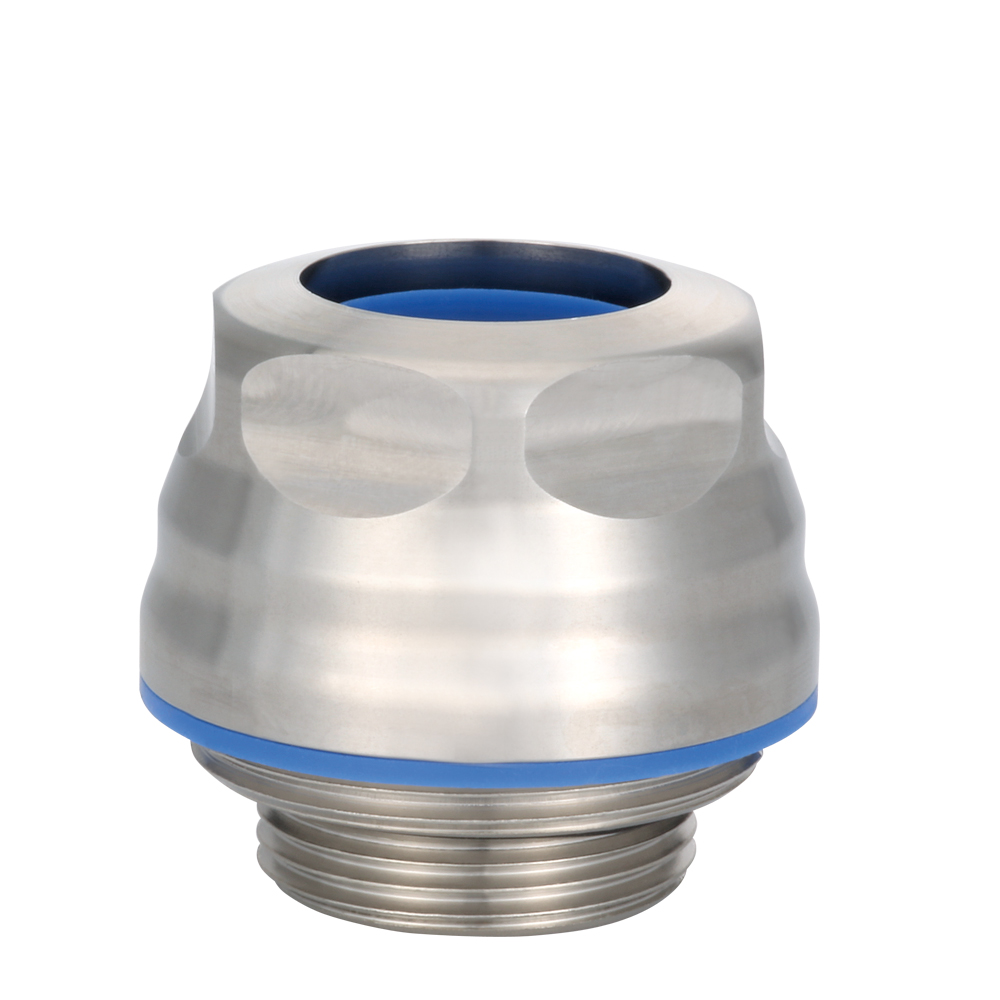

Sealcon #: RG17MR-6S
Cable Range: 0.24" - 0.3" (6 to 7.5 mm)
Color: Stainless Steel
Material: 1.44.04/ AISI 316L Stainless Steel
Hummel: HSK-INOX-HD-Pro Metric
Hummel #: 1.740.1603.51
Locking Nut Sold Separately.
Suitable for use in all areas in which the adherence of microorganisms and dirt must be prevented. e.g. Pharmaceutical, Food and Chemical Industries, Biotechnology and Clean Room Technology.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 1.06" (27 mm) |
|---|---|
| Body Length (B) | 0.79" (20 mm) |
| Thread Length (D) | 0.24" (6 mm) |
| Wrench Flat (F1) | 0.75" (19 mm) |
| Wrench Flat (F) | 0.83" (21 mm) |
PDF DOWNLOADS
Catalog Page-
Features
- IP 66, IP 68 to 10 bar, (IP69K) applications – avoiding bacteria and micro-organism deposits
- Smooth surface (no cavities, no sharp corners) preventing material from sticking
- Silicon seals for higher temp rating – 40°F to 248°F (-40°C to 120°C)
- Chemical resistant 316L Stainless Steel to sustain disinfectant, cleaners, acids and alkalis
- Cable Range: .24″ – .30″ (6 – 17.5 mm)
- EHEDG listed (European Hygienic Engineering & Design Group)
- Durable – Rugged Construction
- FDA Conforming Materials
EMC ready for braided cable
This 316L Stainless Steel Strain Relief Fitting with M16 x 1.5 Thread will provide your application with a product made of exceptional quality.
-
Materials
- Fittings: 1.44.04/ AISI 316L Stainless S
APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
UR (Recognized Underwriters Laboratories)
UL approval UL (Listed Underwriters Laboratories)
