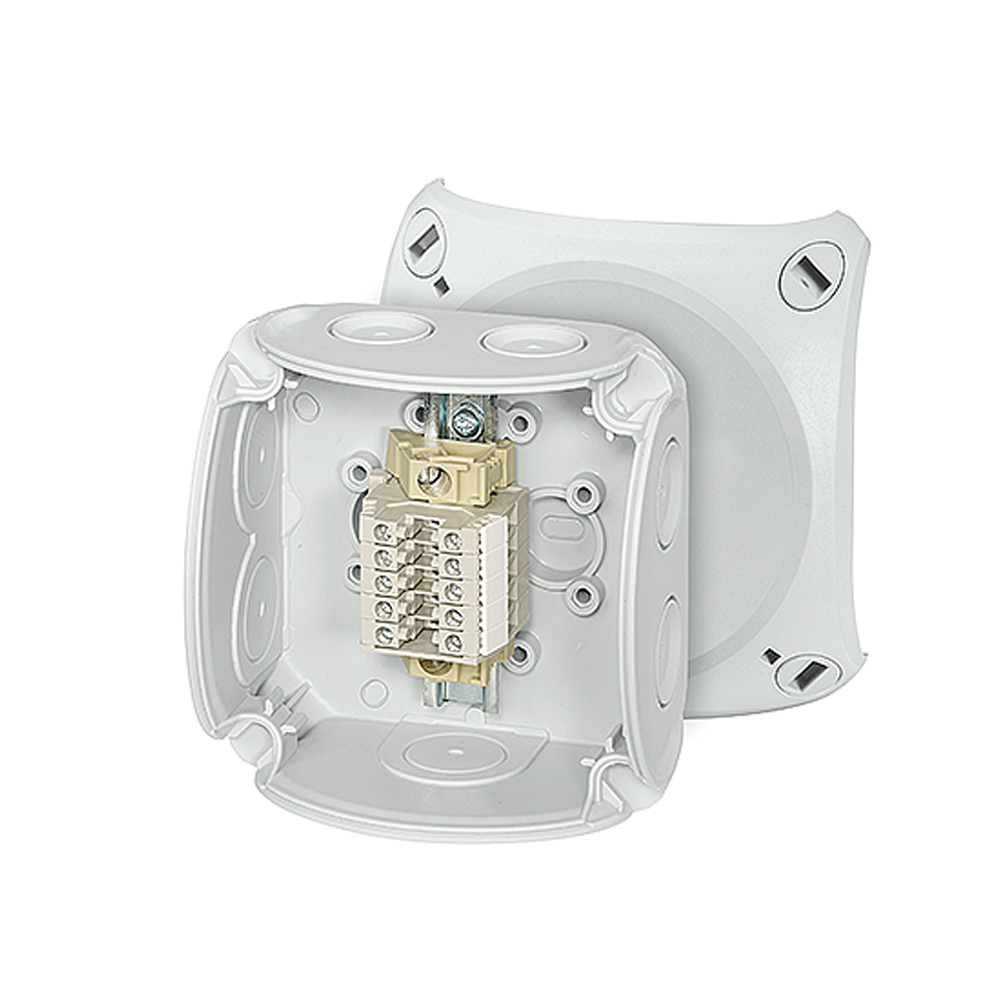

Sealcon #: RK0205T
Size: RK ENYCASE T
Material: RK 93 x 93 x 62 mm
Hensel #: RK 0205 T
Cover screws and mounting screws included.
0.5-4 mm², Cu
5 terminal blocks WKM 2.5/15
Per terminal 2 x 0,5-2,5 mm² f or 2 x 0,5-4 mm² sol,
See Technical details for more information about terminal assignment
Terminal blocks, by Wieland
Terminal marking, neutral
With integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 6.0-15.0 mm
With one cable entry in the bottom, sealing range Ø 6.0-13.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
To close opened membranes use grommets type EDK. Degree of protection = IP 66.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 500 V a.c./d.c.
Rated current: 24 A
Material PP (polypropylene)
Degree of protection IP 66

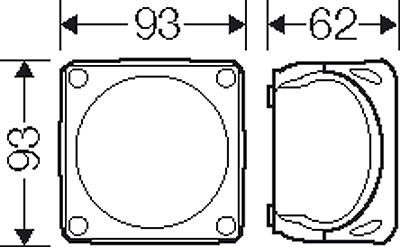

Width 93 mm
Height 93 mm
Depth 62 mm
Weight 0,137 kg
Tightening torque for terminal 0,4 NmImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750 °C
