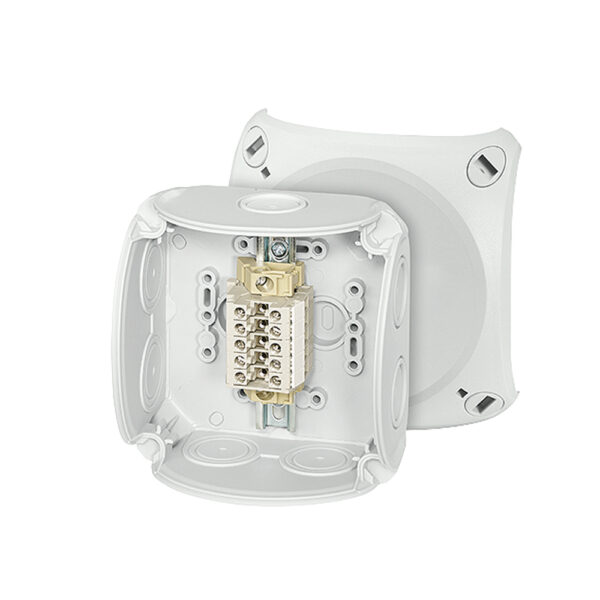

Sealcon #: RK0405T
Size: RK ENYCASE T
Material: RK 104 x 104 x 70 mm
Hensel #: RK 0405 T
Cover screws and mounting screws included.
0.5-6 mm², Cu
5 terminal blocks WKM 4/15
Per terminal 2 x 0,5-4 mm² f or 2 x 0,5-6 mm² sol,
See Technical details DK cable junction boxes for more information about terminal assignment
Terminal blocks, by Wieland
Terminal marking, neutral
With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-17.0 mm
With one cable entry in the bottom, sealing range Ø 6.0-15.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
To close opened membranes use grommets type EDK. Degree of protection = IP 66.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 500 V a.c./d.c.
Rated current: 28 A
Material PP (polypropylene)
Degree of protection IP 66
Width 104 mm
Height 104 mm
Depth 70 mm
Weight 0,171 kg
Tightening torque for terminal 0.5 NmImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750 °C
