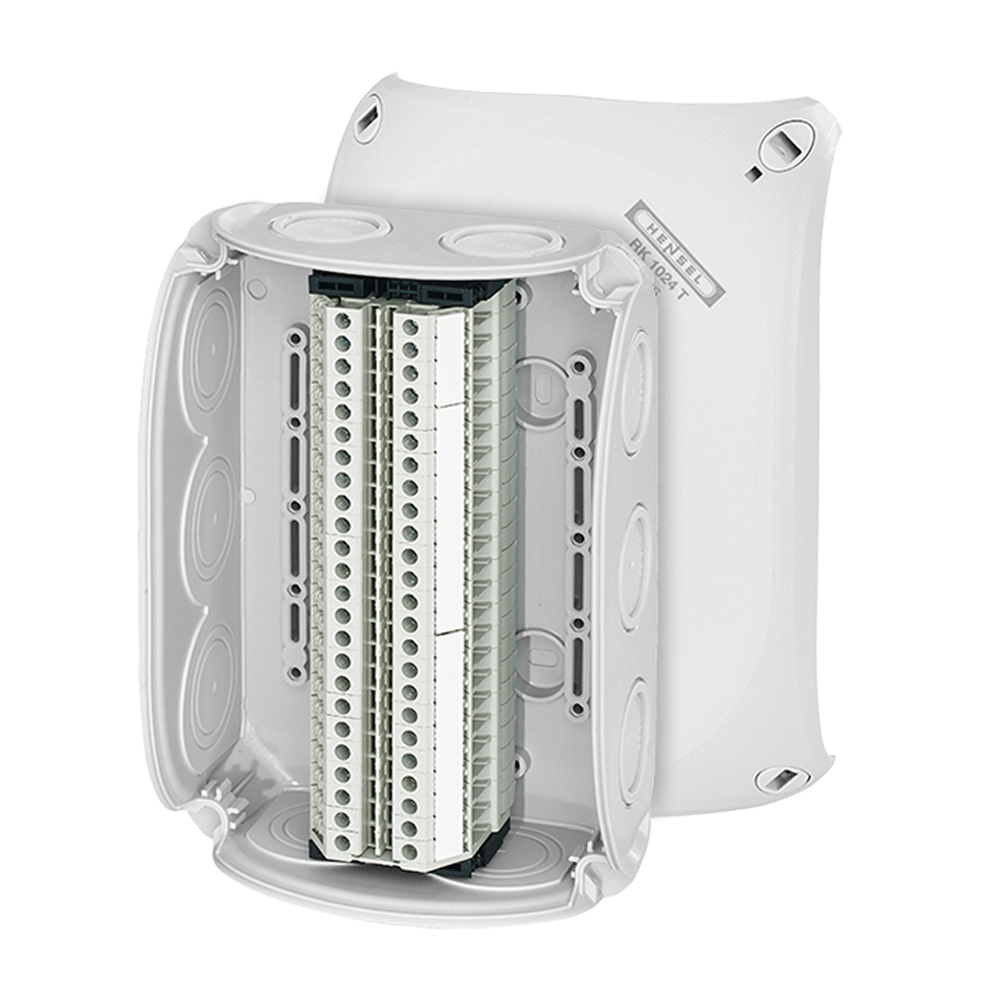

Sealcon #: RK1024T
Size: RK ENYCASE T
Material: RK 180 x 130 x 77 mm
Hensel #: RK 1024 T
Cover screws and mounting screws included.
0.14-6 mm², Cu
24 terminal blocks WT 4
Terminal blocks, by Wieland
Jumper bars for terminal blocks: make Wieland IVB WKF 4
Terminal marking, neutral
With elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-21.0 mm
With two cable entries in the bottom, sealing range Ø 9.0-20.0 mm
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
To close opened membranes use grommets type EDK. Degree of protection = IP 66.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 41 A
Material PP (polypropylene)
Degree of protection IP 66
Width 180 mm
Height 130 mm
Depth 77 mm
Weight 0,53 kg
Tightening torque for terminal 0.5 NmImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750 °C
