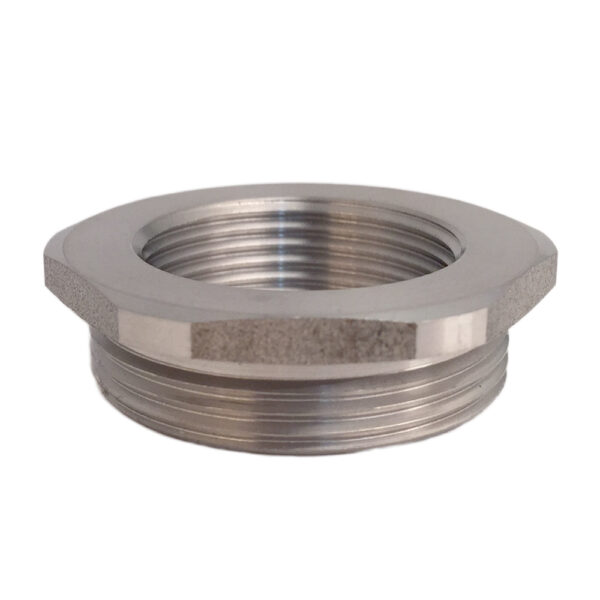

Sealcon #: RM-6340-SS
Color: Stainless
Material: Stainless Steel
Hummel: RS-INOX
Hummel #: 1.094.6340.50
Without-O-Ring
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Thread Type Male (A) | M 63 x 1.5 |
|---|---|
| Female (B) | M 40 x 1.5 |
| Height (H) | 0.65" (16.5 mm) |
| Thread Length (T) | 0.39" (10 mm) |
| Wrench Flat (F1) | 2.56" (65 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
Is your thread size off by one size?
These Reducers will solve that threading problem.
Reducers will allow you to convert holes which fit PG, NPT & Metric threads to a smaller female thread of the same thread type to fit your application needs.
Thread Reducers are available in Gray Nylon, Nickel Plated Brass and Stainless Steel. -
Materials: Stainless Steel Optional O-Ring: Buna-N, FPM or Silicone Optional Seal Ring: Polyethylene or Fiber-reinforced Plastic
Operating Temperature will vary based off selected O-Ring and the material of the product it is applied to.
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
EAC
