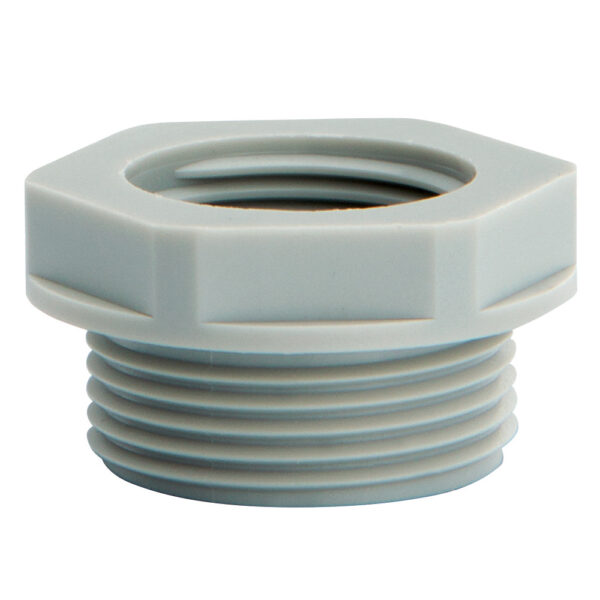

Sealcon #: RR-4032-GY
Color: Gray
Cable Range: C
Material: Nylon
Hummel: R-FS
Hummel #: 1.272.4032.50
Buna-N, FKM or Silicone O-Ring option available.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Thread Type Male (A) | M40 x 1.5 |
---|---|
Female (B) | M32 x 1.5 |
Height (H) | 0.75" (19 mm) |
Thread Length (T) | 0.47" (12 mm) |
Outer Diameter (D) | 2.01" (51 mm) |
Wrench Flat (F1) | 1.81" (46 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
Is your thread size off by one size?
These Reducers will solve that threading problem.
Reducers will allow you to convert holes which fit PG, NPT & Metric threads to a smaller female thread of the same thread type to fit your application needs. -
Materials: Gray Nylon Optional O-Ring: Buna-N, FPM or Silicone Optional Seal Ring: Polyethylene or Fiber-reinforced Plastic
Operating Temperature will vary based off selected O-Ring and the material of the product it is applied to.
