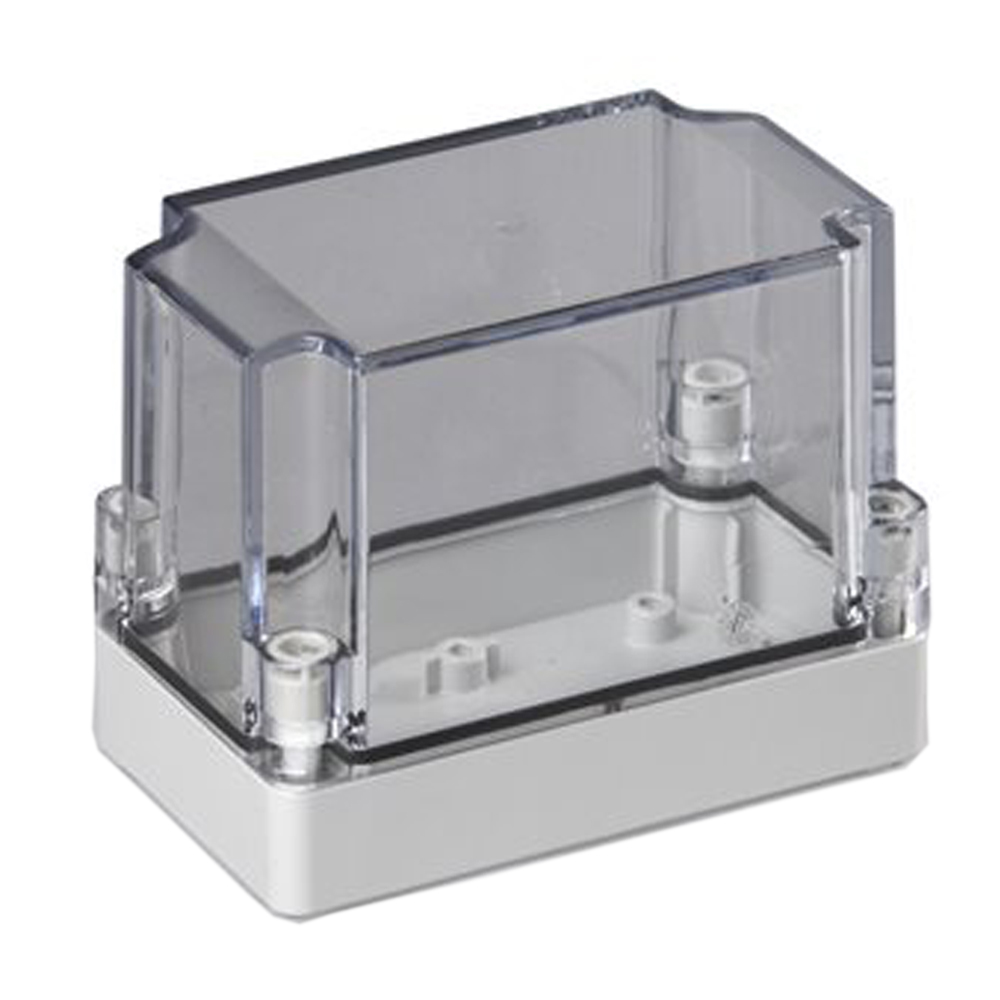

UL Polycarbonate Metric Series S Enclosures | Plain Sides Transparent Cover | S3120081310LTU

Sealcon #: S3120081310LTU

Size: L4.92" x W2.95" x D2.95" (125 x 75 x 75mm)

Material: Polycarbonate

Ensto Enclosures: Ensto Cubo S

Ensto #: SPCP081310LT.U

Cover screws and mounting screws included.

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

Features
Series S Enclosure in brief:
- Available with plain sides or knockouts
- Available in 36 sizes, two base depths (25 and 50 mm) and 5 different cover heights
- Cover and cover screws equipped with sealing holes
- Slots in the base for printed circuit boards
Contents of the product package:
- Enclosure base
- Cover
- Cover screws
- Mounting screws
UL File no:

E189312

UL category:

NITW, NITW7

Environmental type (UL):

4, 4x, 12, 13, 6

Environmental type (cUL):

4, 4x, 12, 6

Outdoor suitability:

UL 746C (f1) rated material

Insulation:

Class ||
Operating Temperature
-40C° to 80C° (-40°F to 176°F)
APPROVALS
