UL Polycarbonate Metric Series S Enclosures | Metric Knockouts Transparent Cover | S3120101006MTU

UL Polycarbonate Metric Series S Enclosures | Metric Knockouts Transparent Cover | S3120101006MTU
Sealcon #: S3120101006MTU
Size: L3.93" x W3.93" x D2.36" (100 x 100 x 60mm)
Material: Polycarbonate
Ensto Enclosures: Cubo S Enclosure
Ensto #: SPCM101006T.U

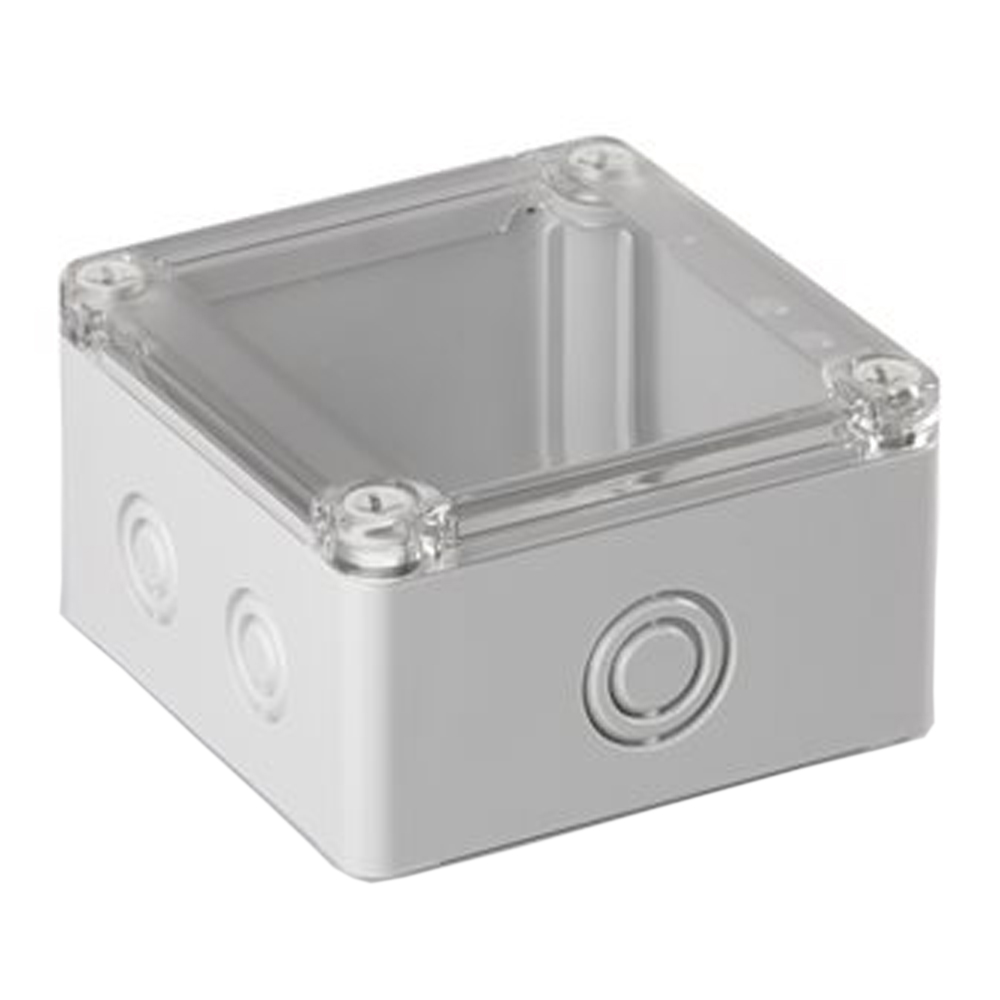

Polycarbonate Enclosure with Transparent, Metric knockouts Cover.

Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page

  • Features

    Series S Enclosure in brief:

    • Available with plain sides or knockouts
    • Available in 36 sizes, two base depths (25 and 50 mm) and 5 different cover heights
    • Cover and cover screws equipped with sealing holes
    • Slots in the base for printed circuit boards

    Contents of the product package:

    • Enclosure base
    • Cover
    • Cover screws
    • Mounting screws


  • UL File no:

    E189312

    UL category:

    NITW, NITW7

    Environmental type (UL):

    4, 4x, 12, 13, 6

    Environmental type (cUL):

    4, 4x, 12, 6

    Outdoor suitability:

    UL 746C (f1) rated material

    Insulation:

    Class ||
    Impact
    IK 08
    Fire Resistance
    UL 746C 5 inch flame test
