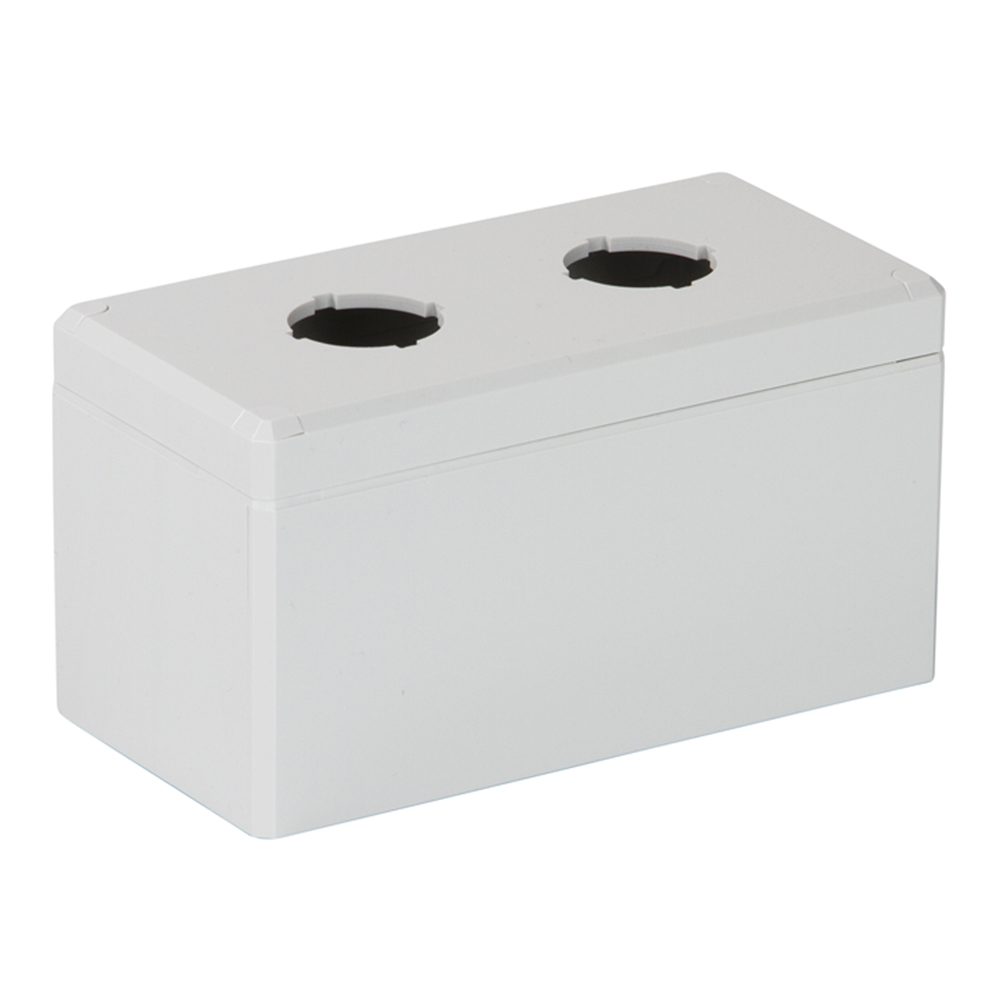

UL Polycarbonate Pushbutton Enclosure | 2×30.5mm Hole Size | S350P2305

UL Polycarbonate Pushbutton Enclosure | 2x30.5mm Hole Size | S350P2305
Sealcon #: S350P2305
Size: H6.3xW3.1xD3.4" (160.02 x 78.74 x 86.36mm)
Material: Polycarbonate
Ensto Enclosures: Pushbutton
Ensto #: DPB230
Cover screws and mounting screws included.


Polycarbonate Pushbutton Enclosure


Drawings with additional dimensions can be furnished on request.

Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page

  • Features

    Empty non-metallic Polycarbonate Pushbutton enclosures series. Enclosures are UL 508A and UL Type 4, 4X, 6, 12, 13 rated having excellent resistance against UV. Enclosures are proven to withstand arctic and changing climates.

    Pushbutton Enclosures in Brief:

    • * Available factoiry-made4way:
      – 22.5mm PB size holes
      – 30.5mm PB size holes
    • * Contemporary design with faceted corners and cover plugs
    • * Includes fastening pods inside the cover


  • UL File No:

    E189312

    UL Category:

    NITW

    Environmental Type (UL):

    4, 4x, 6, 12, 13

    Outdoor Suitability:

    UL 746C (f1) rated material

    Flammability Rating:

    UL 746C 5inch flame

    Impact Resistance:

    IK08 (-13°F...95°F / -25°C...+35°C)

    Insulation:

    Class II
    Operating Temperature
    -40C° to 176C° (-40°F to 348.8°F)
    Fire Resistance
    UL746C



  • APPROVALS
