Features

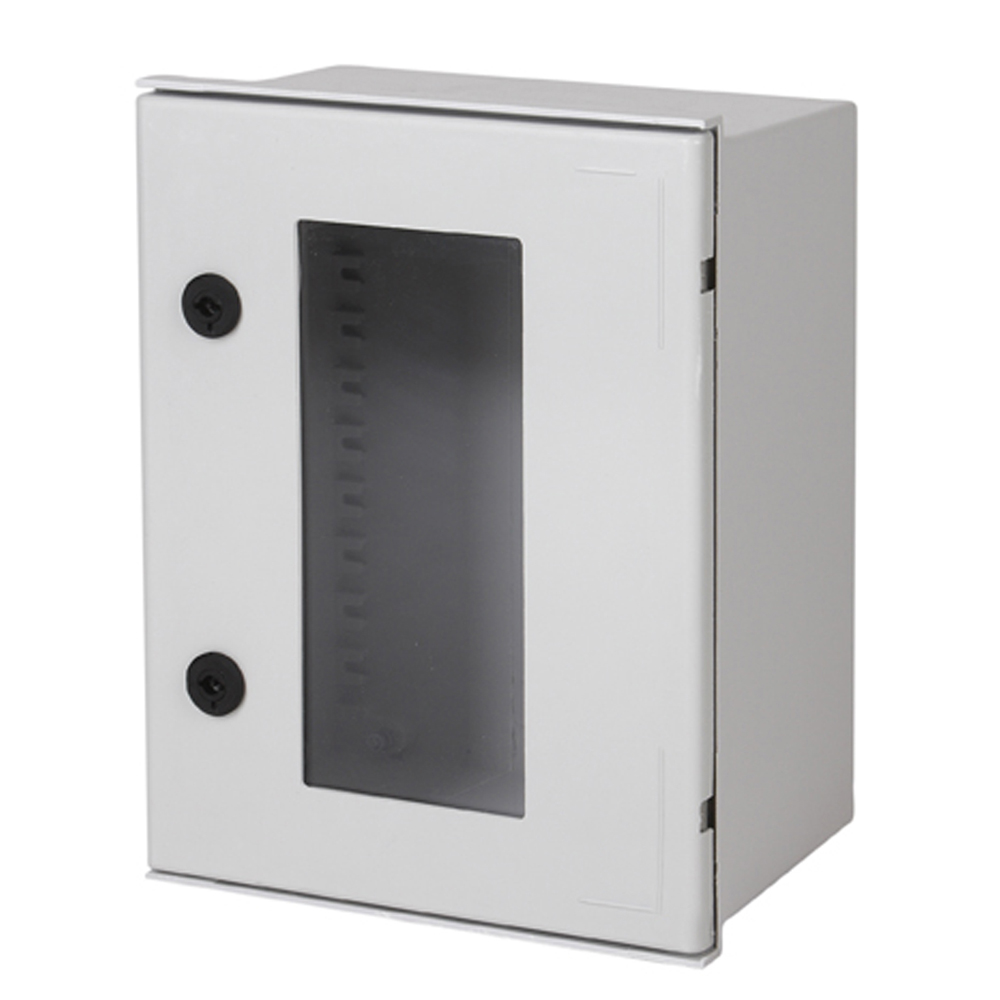

• Available with plain sides or with polycarbonate window.
• Available in 7 sizes.
• Superb temperature resistance.
• Sturdy construction and high resistance to corrosion and solvents.
• Suitable for highly demanding environments such as waste water treatment and the petrochemical/chemical industries.
• Quick fixture brackets at the back allow fitting without drilling
• Built-in protective edge allows you to open the door 180&deg in installations and also prevents entry of water when opening the door.
• Vertical patterns on the inner side of the door enables correct fittings of devices.

Contents Of The Package:

• Enclosure base
• Door
• Lock with 1/4 turn latch

UL File no:
• E189312
UL category:
• NITW, NITW7
Enviormental type (UL):
• 4, 4x,12
Flammability rating:
• UL 746C
Impact resistance:
• IK10, models with window IK07
Insulation:
• Class II
Lock:
• Double bit DIN 0.12 inch (3.0mm)
Gasket:
• PUR ( polyurethane)
Base/cover:
• Gray RAL 7035
GRP enclosures:
• Plain sides

APPROVALS

• CE approval CE (Certified European Approval)
• Restriction of Hazardous Substances in Electrical and Electronic Equipment
• UL approval UL (Listed Underwriters Laboratories)
• cULus
