Sealcon #: S7.015.953.623

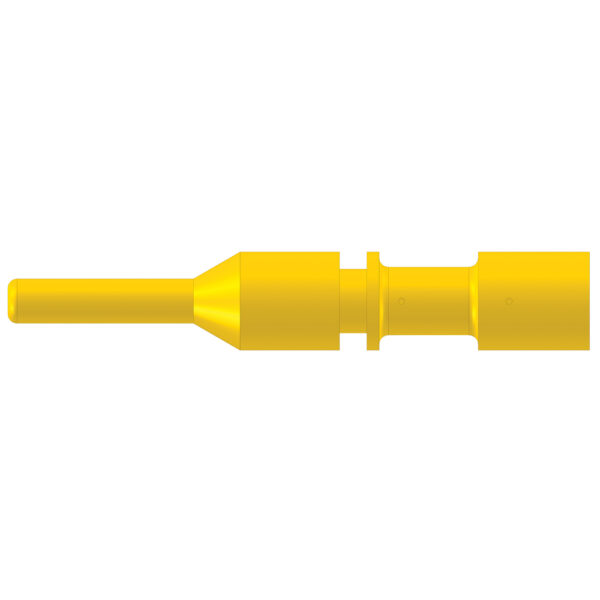

M40 Power Crimp Socket 3.6mm Machined
Hummel: CC-Contacts
Hummel #: 7.015.953.623
This Contact is Required for specific Insert Configurations.
Details for configurations can be found under Technical Data.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Crimp Range | 10.0 mm2 |
---|
PDF DOWNLOADS
Catalog Page-
This Contact Is Required for M40 Power Connectors:
Insert type Socket/Female is for Poles & Configurations:- M40 Power Connectors - Configuration 2 + 3 + PE
- M40 Power Connectors - Configuration 4 + 3 + PE
Crimp Range: 10mm2
Click Here for Crimp Tool Settings INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data M40-2x3-PIN-PE Insert 2+3+PE 2 x 2mm / 4 x 3.6mm Number of Positions: 3 + 2 + PE
Number of Contacts: 2 | 4
Contact-Ø (mm): 2 | 3.6
Nominal Current1) [A]: 28 | 55
Nominal Voltage2) [V~] degree of protection 33): 300 | 600
Test Voltage (Breakdown Voltage) 4) [V~]: 2500 | 4000
Insulation Resistance [MΩ]: > 1013
Max. Contact Resistance [mΩ]: 3 | 1M40-2x3-SOCKET-PE Insert 2+3+PE 2 x 2mm / 4 x 3.6mm M40-4x3-PIN-PE Insert 4+3+PE 4 x 2mm / 4 x 3.6mm Number of Positions: 4 + 3 + PE
Number of Contacts: 4 | 4
Contact-Ø (mm): 2 | 3.6
Nominal Current1) [A]: 28 | 55
Nominal Voltage2) [V~] degree of protection 33): 300 | 600
Test Voltage (Breakdown Voltage) 4) [V~]: 2500 | 4000
Insulation Resistance [MΩ]: > 1013
Max. Contact Resistance [mΩ]: 3 | 1M40-4x3-SOCKET-PE Insert 4+3+PE 4 x 2mm / 4 x 3.6mm CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.015.953.622 Crimp Socket 3.6mm Machined ( AWG 8)
