Sealcon #: S7.749.066.00S
(housing only)

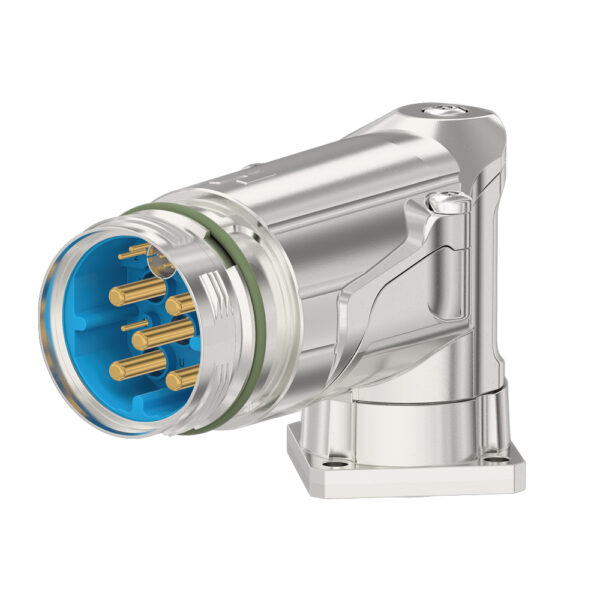

M40 Hybrid Connector Right Angle Male Twilock-S 327° Rotatable
Color: Blue
Material: Zinc Die Cast / Nickel
Hummel: M40 Hybrid panel connector
Hummel #: 7.749.066.00S
Number of Contacts: 17 = (6 + 6 + 4 + PE)
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Pressure Rating:
IP 67 / IP 69 K per EN 60 529 (connected), Type NEMA 4x
Mechanical Data:
Housing Die Casting (Zinc)
Housing Surface: Nickel Plated
Contacts: Gold-plated Brass Alloy
Type of Contacts: Crimp
Number of Contacts: 17 = (6 + 6 + 4 + PE)
Amp Rating: 2 + 7 + 55 CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.960.611
Hybrid Crimp Data Pin 0.6 mm, machined 0.05 - 0.34 mm2 (AWG 30 - 22) S7.010.960.612
Hybrid Crimp Data Socket 0.6 mm, machined 0.05 - 0.34 mm2 (AWG 30 - 22) S7.015.961.001
Hybrid Crimp Data / Signal Pin 1 mm, machined 0.14 - 1 mm2 (AWG 26 - 17) S7.015.961.002
Hybrid Crimp Data / Signal Socket 1 mm, machined 0.14 - 1 mm2 (AWG 26 - 17) S7.015.961.011
Hybrid Crimp Signal Pin 1 mm, machined 0.75 - 1.5 mm2 (AWG 18 - 16) S7.015.961.012
Hybrid Crimp Signal Socket 1 mm, machined 0.75 - 1.5 mm2 (AWG 18 - 16) S7.015.963.601
Hybrid Crimp Power Pin 3.6 mm, machined 1.5 - 4 mm2 (AWG 16 - 12) S7.015.963.602
Hybrid Crimp Power Socket 3.6 mm, machined 1.5 - 4 mm2 (AWG 16 - 12) S7.015.963.611
Hybrid Crimp Power Pin 3.6 mm, machined 6 mm2 (AWG 10) S7.015.963.612
Hybrid Crimp Power Socket 3.6 mm, machined 6 mm2 (AWG 10). S7.015.963.621
Hybrid Crimp Power Pin 3.6 mm, machined 10 mm2 (AWG 8) S7.015.963.622
Hybrid Crimp Power Socket 3.6 mm, machined 10 mm2 (AWG 8) S7.015.963.631
Hybrid Crimp Power Pin 3.6 mm, machined 16 mm2 (AWG 6) S7.015.963.632
Hybrid Crimp Power Socket 3.6 mm, machined 16 mm2 (AWG 6)
VDE approval VDE (Association of German Electrical Engineers)
