Sealcon #: SA712-7.K30.400.000
(housing only)

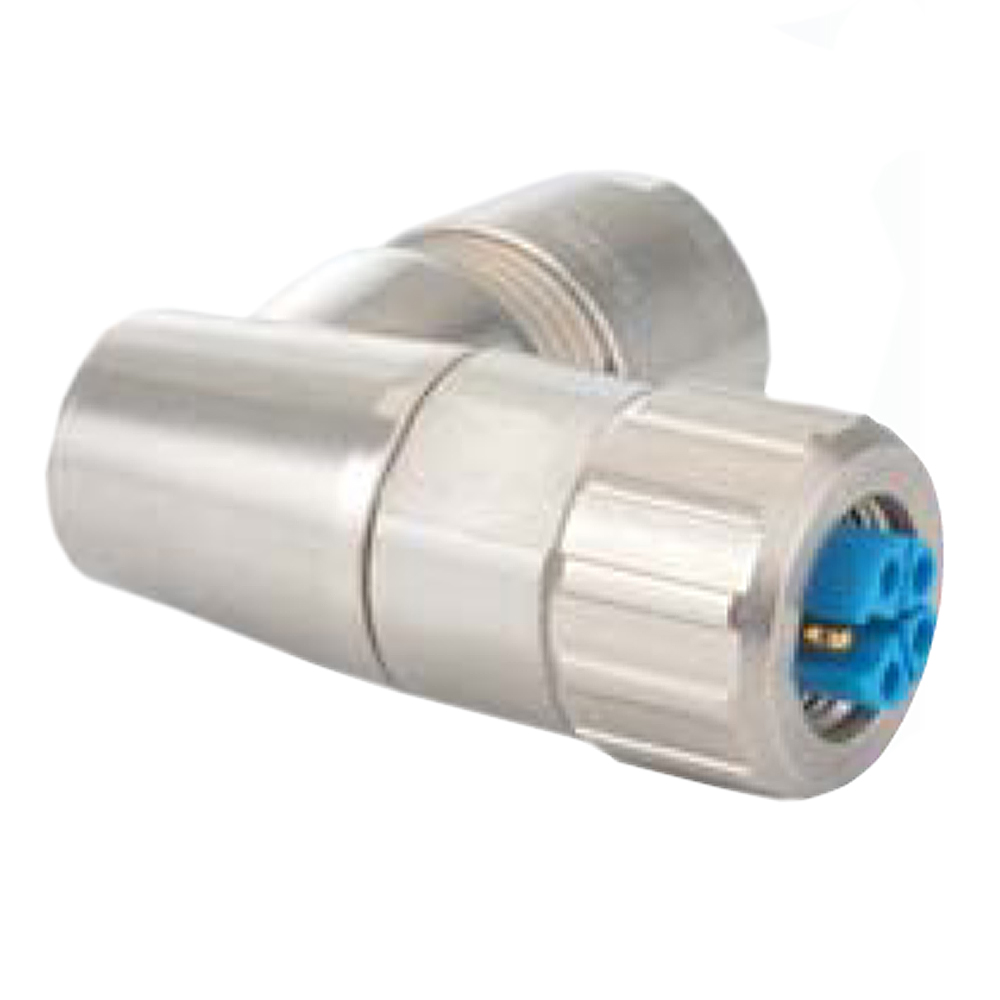

M12 Power Right Angle Connector - Female Thread
Cable Range: .20 - .35" (5-9 mm)
Material: Nickel Plated Brass
Hummel: M12 Power right angle cable connector
Hummel #: A712-7K30400000
Coding K,L (for 4 contact positions) See data sheet under Downloads
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
This circular connector opens the door to entirely
new applications and capabilities! Its high power
transmission, compact design and the large
temperature range are extraordinary features. The
electro-mechanical features of this compact power
connector are convincing!• Power transmission to 16A and 630V
• Protection IP67 and IP69K
• Cable diameter up to 9mm (0.35″)
• Temperature range to 125 degree Celsius
• EMI (EMC) Shielding in standard version
• K, L (Coding (5 positions)
• Robust metal housing
• Compact designs
• Optional stainless steel
• UL Certified -
TYPE: Power or Signal
CONTACTS: Crimp & Screw
PIN-OUT: 4, 5 (4 + PE)
AWG: S & T Screw: 16-20 K & L Crimp: 14-18
AMPERE: 12 - 16A
VOLT: 63 - 630V
CABLE RANGE: 5-9 mm (.20"- .35")
TEMPERATURE: -40°F to 257°F (-40°C to 125°C)
OPTIONS: Threaded, Over mold cord sets, 316L Stainless Steel, Black Chrome-Plated.
UNIQUENESS: Low profile, High power transmission, IP67 & IP69K, Robust metal housing, EMI ready UL, VDE.
APPLICATIONS AC / DC Motors, Motor Control Switches, Aux. Power Distribution, LED &Conventional Lighting, Network Devices, Robotics.
