M12 Power Panel Connector, Front Mount, Single Hole M16 Thread w/ rotation protection | SA712-7.K44.000.00G

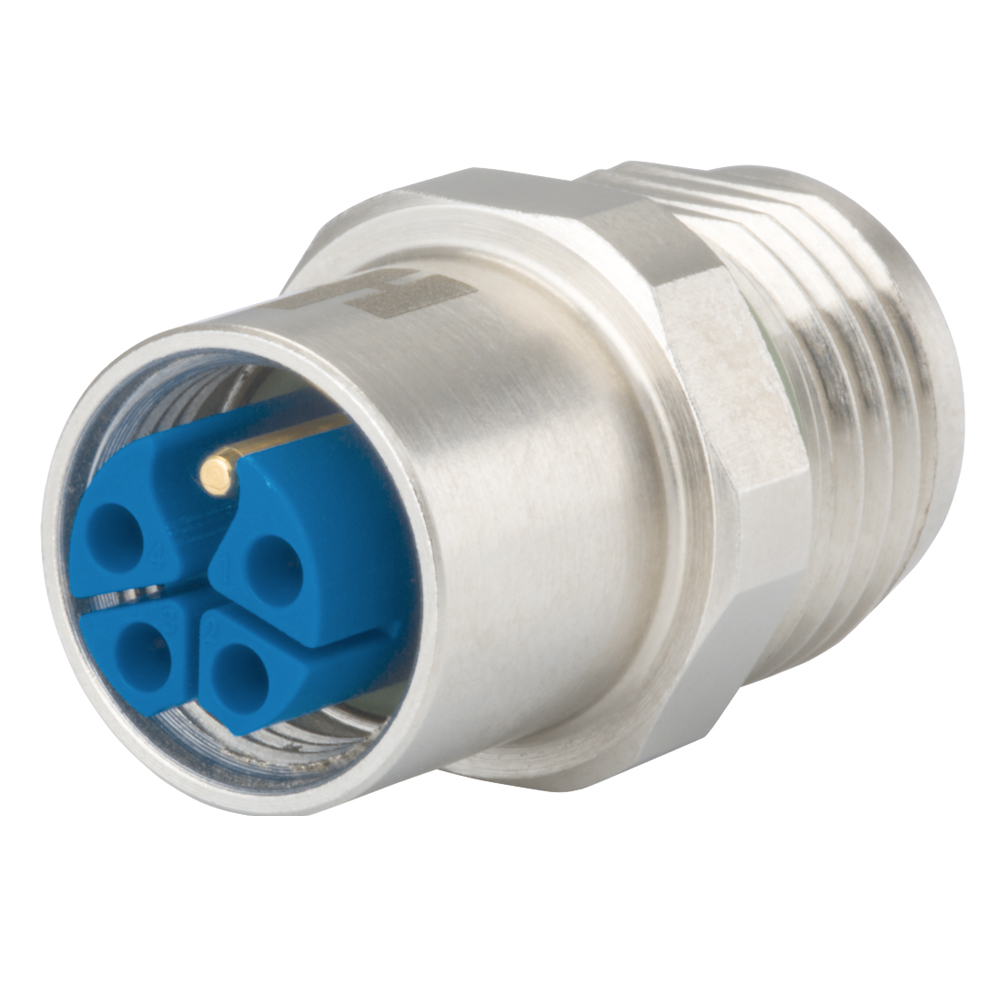

M12 Power Panel Connector
Sealcon #: SA712-7.K44.000.00G
(housing only)
M12 Power Connector- Female Thread
Material: Nickel Plated Brass
Hummel: M12 Power panel connector
Hummel #: A712-7K4400000G

Coding K,L (for 5 contact positions) See data sheet under Downloads

Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog PageData SheetAssembly Instructions

  • Features

    This circular connector opens the door to entirely
    new applications and capabilities! Its high power
    transmission, compact design and the large
    temperature range are extraordinary features. The
    electro-mechanical features of this compact power
    connector are convincing!

    • Power transmission to 16A and 630V

    • Protection IP67 and IP69K

    • Cable diameter up to 11mm (0.43″)

    • Temperature range to 125 degree Celsius

    • EMI (EMC) Shielding in standard version

    • K, L (Coding (5 positions)

    • Robust metal housing

    • Compact designs

    • Optional stainless steel
    • UL Certified



  • TYPE: Power or Signal
    CONTACTS: Crimp & Screw
    PIN-OUT: 4, 5 (4 + PE)
    AWG: S & T Screw: 16-20 K & L Crimp: 14-18
    AMPERE: 12 - 16A
    VOLT: 63 - 630V
    CABLE RANGE: 3-11 mm (.12"- .43")
    TEMPERATURE: -40°F to 257°F (-40°C to 125°C)
    OPTIONS: Threaded, Over mold cord sets, 316L Stainless Steel, Black Chrome-Plated.
    UNIQUENESS: Low profile, High power transmission, IP67 & IP69K, Robust metal housing, EMI ready UL, VDE.
    APPLICATIONS AC / DC Motors, Motor Control Switches, Aux. Power Distribution, LED &Conventional Lighting, Network Devices, Robotics.

  • INSERTS

    Part NumberImageAdd to QuoteNumber of PolesRequired ContactsElectrical Data
    SA7127K03941101
    Add to Quote
    		Insert K (Crimp)4 + PE630V16Amps
    SA7127K03941102
    Add to Quote
    		Insert K (Crimp)Insert K 4630V16Amps
    SA7127L03941101
    Add to Quote
    		Insert L (Crimp)4 + PE63V 16Amps
    SA7127L03941102
    Add to Quote
    		Insert L (Crimp)4 + PE63V 16Amps
    SA7127S05931105
    Add to Quote
    		Insert S (Screw)Crimp pin 3 + PE630V 12Amps
    SA7127S05931106
    Add to Quote
    		Insert S (Screw)Crimp socket 3 + PE630V 12Amps
    SA7127T05904105
    Add to Quote
    		Insert T (Screw)Crimp pin 4-pole63V 12Amps
    SA7127T05904106
    Add to Quote
    		Insert T (Screw)Crimp pin 4-pole63V 12Amps

  • APPROVALS
