Features

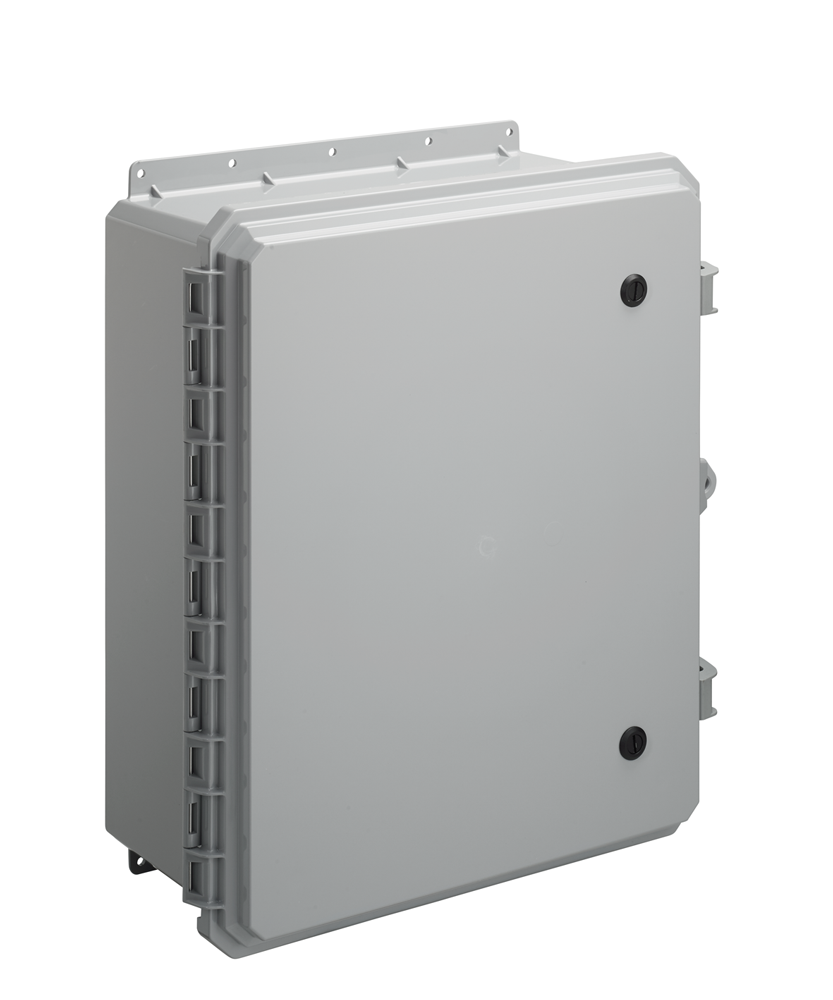

• Our largest series of polycarbonate enclosure offering
• Made in the USA
• UL/C-UL-50 listed (File # E207562)
• Light gray in color with high gloss finish
• Featuring unique Multi-Max Rail Mounting System
• Sturdy, full length piano hinged door
• Extra rigid construction utilizing unique internal Multi-Max frame
• Brass inserts on rear wall of enclosure and on lid for more mounting options
• Integrated mounting flanges eliminate the need to affix to the enclosure
• NEMA 4X | IP 66

• Hinged Cover
• Opaque Cover
• Integrated Mounting Flange
• Non-Metallic Locking Latch
• Multi-Max Rail System

Mechanical and Thermal Test Spec.

• Instrumented Dart Impact @ 73° F 565 in-lbs
• Made in the USA
• Falling Ball Impact @ 73° F: UL-746 900 in-bls
• Deflection Temperature @ 264 psi: ASTM D648 270 Deg F.
• Modulus of Elasticity: rn ASTM D790
• Temperature Range Deg. F -40 to 265

Flammable / UV Ratings Test Spec.

• Flame Rating - UL 94 5VA
• Outdoor UV Exposure - UL F1

APPROVALS

• CE approval CE (Certified European Approval)
• Restriction of Hazardous Substances in Electrical and Electronic Equipment
• UL approval UL (Listed Underwriters Laboratories)
• cULus
