Sealcon #: SJEM04M12PG9BM50

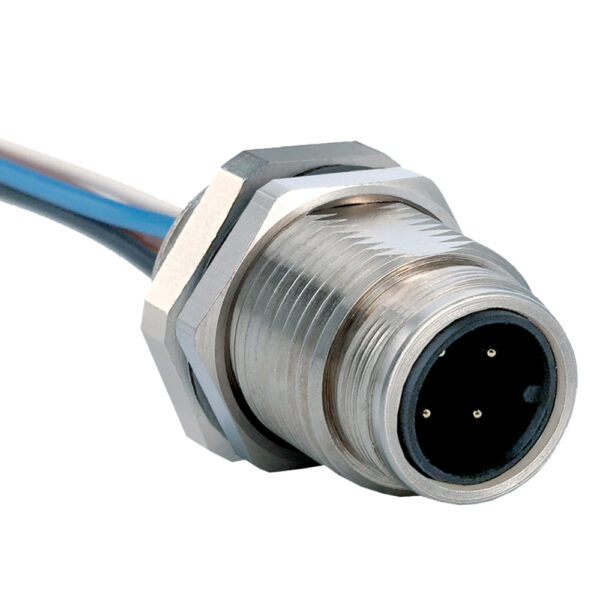

Rear Panel Mount With Cable Cordset
Thread Size: 50
Cable Range: N/A
Hummel #: JEM04M12PG9BM50

Cable Length (cm) 50
Positions 4

Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page
    • Housing: Copper-Zinc alloy
    • Overmold: Thermoplastic elastomer
    • Inserts (for contacts): PA66 / Glass Fiber
    • Contacts: Copper-Zinc alloy
    • Contact surface at point of contact: Nickel and gold plated
    • Seal / O-Rings: Fluorocarbon
    • Temperature Range: -22°F – +158°F (-30°C – +70°C)
      (static operating temperature) 23°F – +158°F (-5°C – +70°C)
      (dynamic operating temperature).

      • Electrical Data

    • Contact-Ø [mm] (AWG): 0.25(24)
    • Nominal Current [A]: 4
    • Nominal voltage [V~] degree of protection3: 60
    • Test voltage (Breakdown voltage) [V~]: 1000
    • Insulation resistance [MΩ]: >10­ to the 9
    • IO-Link Compliant
