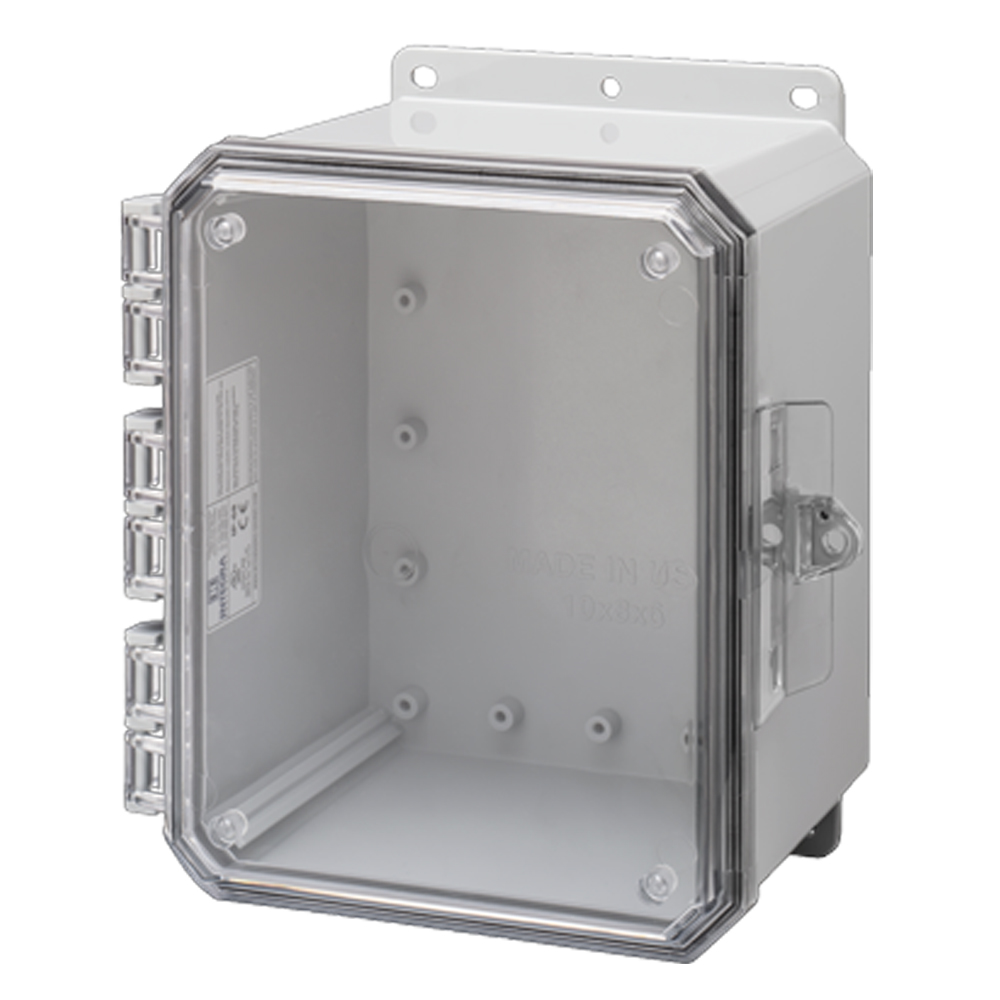

Sealcon #: SP10086C
Size: 10" x 8" x 6" (254 x 203.2 x 152.4 mm)
Material: Hinged Clear Cover INT Locking Latch
Integra Enclosures: Impact Line
Integra #: P10086C
Cover screws and mounting screws included.
- Standard Color – light gray with a high gloss finish
- Best material – bases, opaque covers and clear covers are
all made of high-impact, UV resistant polycarbonate - Easy ordering – One part number equals one completely
assembled enclosure - Super easy use – mounting flanges integral, so no extra
hardware needed - Flexible interior Mounting – bosses on rear wall and lid of
opaque enclosure provide multiple mounting options for
din rail, back panels, or other components - Advanced face plate mounting system – Brand new
completely unique and easy - Secure – Choose your level of protection: pad lockable,
tamper screw or tamper tag capable - Frequency Friendly – Available with absolutely no metals
of any kind on the enclosure which is extremely favorable
for sending and receiving wireless signals - UL-50 / c-UL Listed (file # E207562)
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Features
- Sealcon’s polycarbonate enclosures are available in 11 standard configurations. Box configurations include hinged or non-hinged lids in 2-screw, 4-screw, or stainless steel metal latched lids.
- Made in the USA
- Sealcon’s traditional high impact polycarbonate enclosure offering including eleven sizes from 4x4x3 through 18x16x10
- Light gray in color with high gloss finish
- Available in four configurations including screw cover, hinged w/two screws, hinged w/four screws and hinged with locking latch
- Available in two latch styles, stainless steel (LL) or non-metallic (NL) locking latch
- All sizes and configurations are available in clear or opaque lid
- All sizes and configurations include enclosure foot mount or flange mount system
- Features Sealcon’s unique T-Rail mounting system (brackets are option) for face plates, swing panels, layering back panels and/or infinitely variable back panel height
- Brass inserts for securing mounting feet or flange, optional back panel and lid
UL/C-UL-50 listed Nema 1,2,3,3R,3S,4,4X,5,12,13 and “S” series and “H-6P” series are NEMA 6/6P, marine use rated
-
Mechanical and Thermal Test Spec.
- Instrumented Dart Impact @ 73° F 565 in-lbs
- Made in the USA
- Falling Ball Impact @ 73° F: UL-746 900 in-bls
- Deflection Temperature @ 264 psi: ASTM D648 270 Deg F.
- Modulus of Elasticity: rn ASTM D790
- Temperature Range Deg. F -40 to 265
Flammable / UV Ratings Test Spec.
- Flame Rating - UL 94 5VA
- Outdoor UV Exposure - UL F1
ImpactFire Resistance
Instrumented Dart Impact @ 73° F in-lbs. 565
UL 94 5VA
CE approval CE (Certified European Approval)
Restriction of Hazardous Substances in Electrical and Electronic Equipment
UL approval UL (Listed Underwriters Laboratories)
cULus
