Sealcon #: SUPCG061012HNLF
Size: (12" x 10" x 6") 326mm x 276mm x 185mm
Material: Hinged Non-Metal Latch & Flange, grey Cover
Ensto Enclosures: PolyBox
Ensto #: UPCG121006HNLF
Cover screws and mounting screws included.

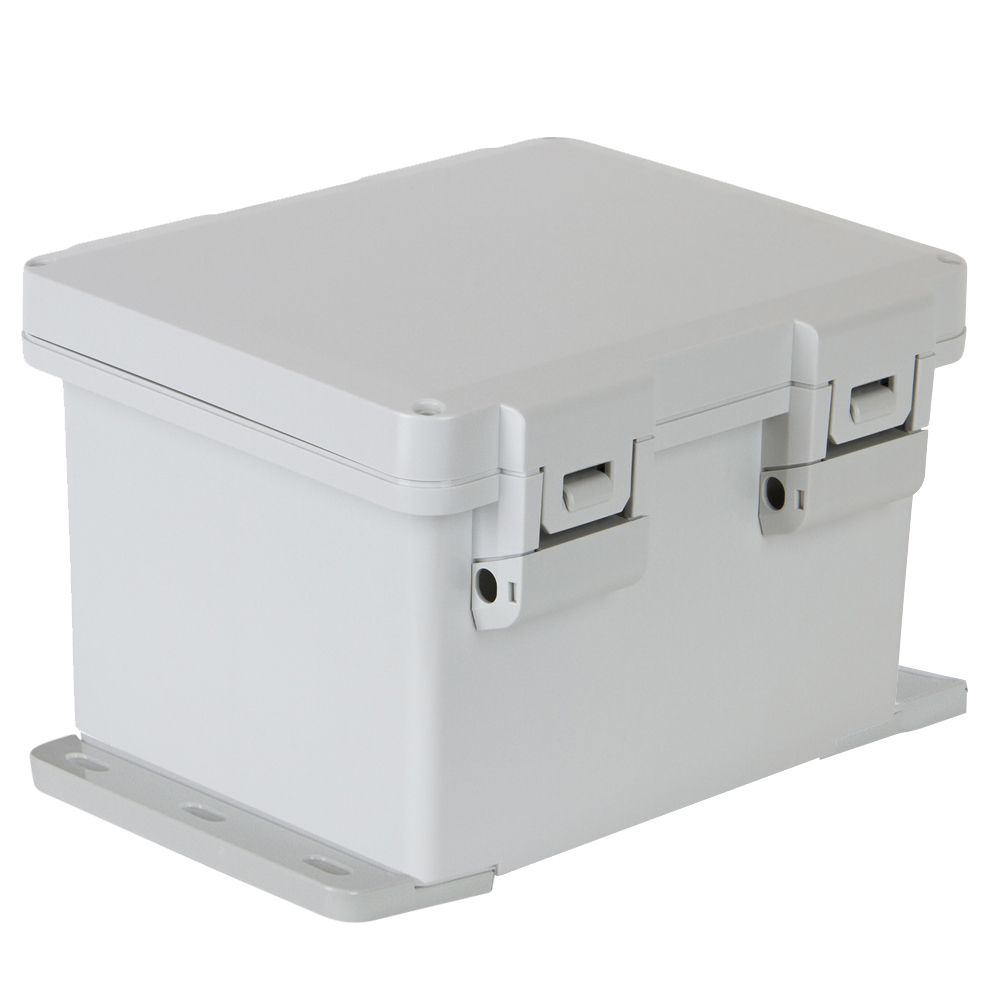

Polycarbonate Enclosure with Plain Sides and Opaque Cover.
Assembly and machining services of your enclosures are available on request.
Drawings with additional dimensions can be furnished on request.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
Polycon Enclosure in Brief:
- Industrial exclusive corner elevator system
- Light and tough-excellent impact and fire resistance
- High level of technical features and approval ratings
- Multiple modification possibilities
-
UL File no:
E189312
UL category:
NITW, NITW7
Envioronmental type (UL):
4X, 12, 13, 6P
Degree of protection:
IP66, IP68, and IP69
Insulation:
Class||Impact
IK10 -35°C +40°C -31°F 104 °FOperating TemperatureFire Resistance
-40C° to 80C° (-40°F to 176°F)
UL 746C Five inch flame test
UL approval UL (Listed Underwriters Laboratories)
CSA approval CSA (Canadian Standard Association)
CE approval CE (Certified European Approval)
cULus
Restriction of Hazardous Substances in Electrical and Electronic Equipment
