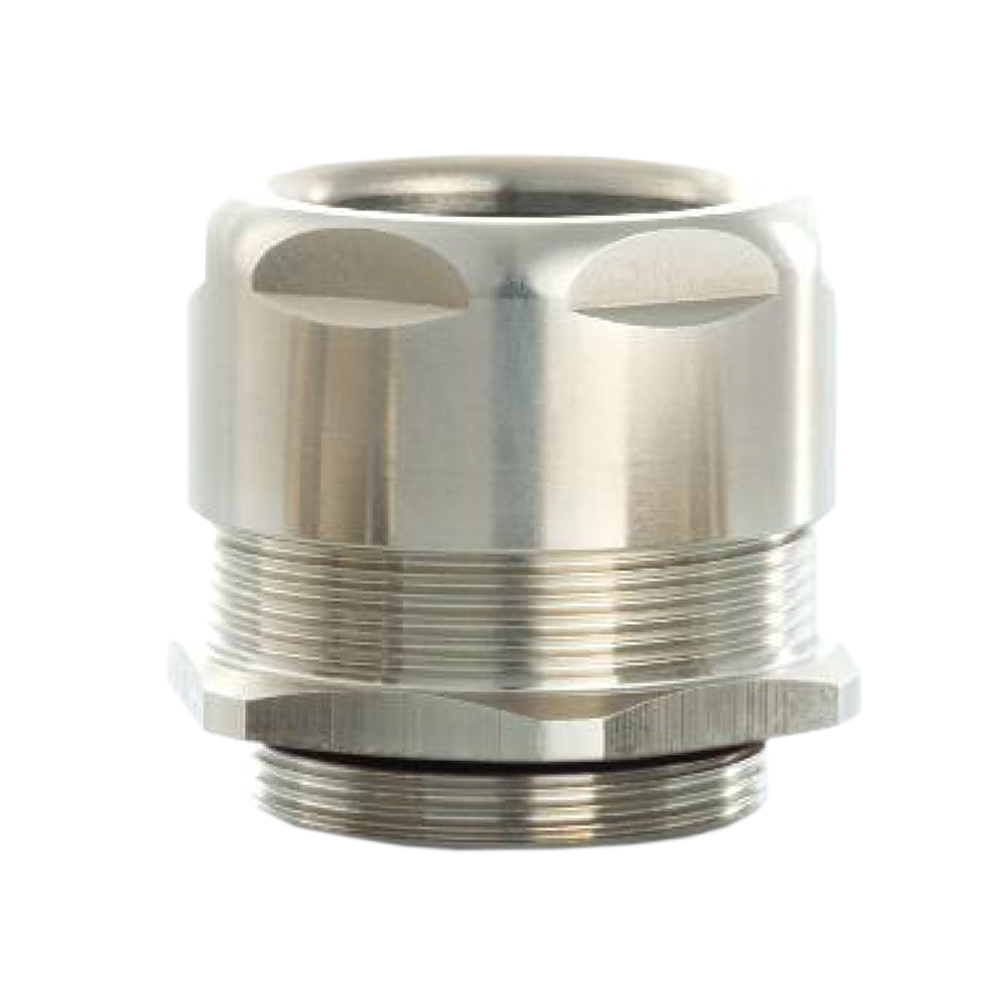

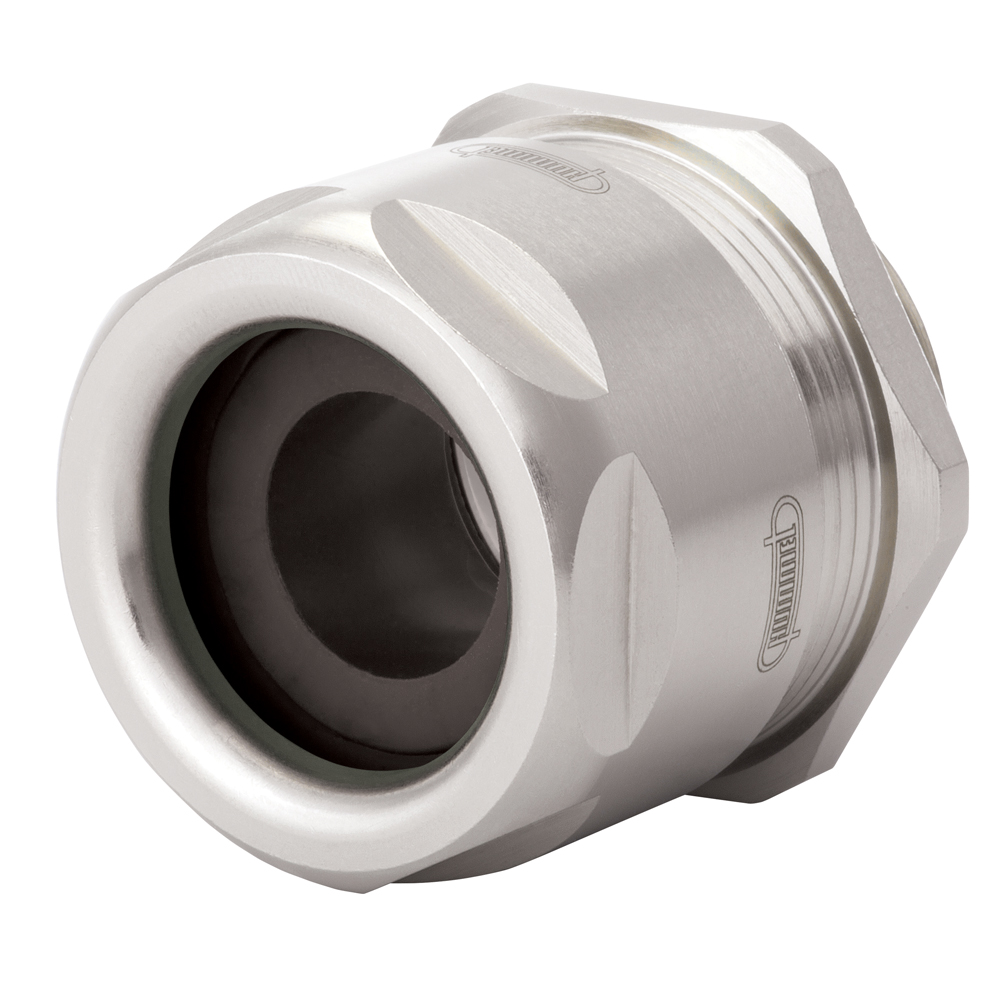

Sealcon #: VR22MR-BR
Cable Range: 0.28" - 0.55" (7 to 14 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel #: 1.750.2000.50
Suitable for application that need a Small Space Saving Solution, that is EMI (RFI) Ready It successfully passed the tests of the fire protection standards DIN EN 45545-2 and 45545-3 and meets the fire resistance class E30.
- Operating Temperature: -40°C to 100°C (-40°F to 212°F)
- Cable Range: 0.28″ – .55″ (7 – 14 mm)
- Housing: Nickel Plated Brass

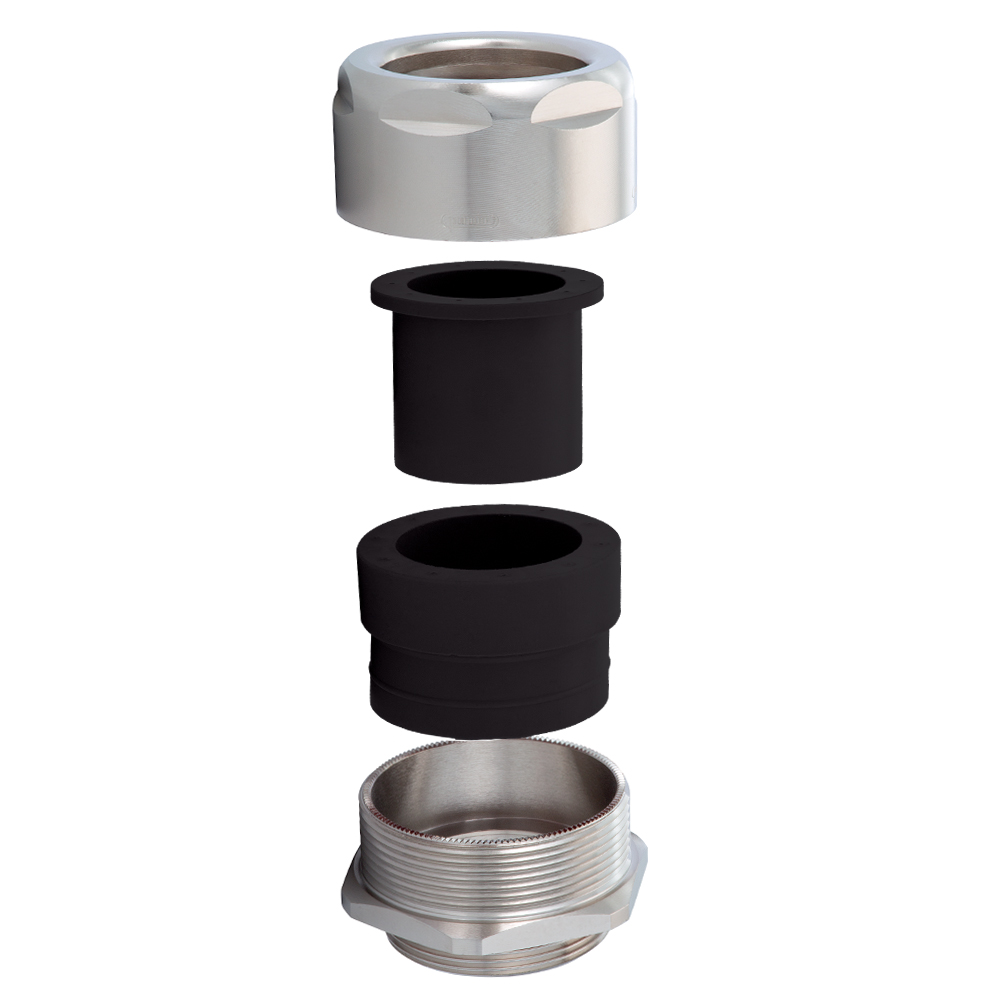

- Form Seal: Rubber (EPDM) Ethylene-Propylene Diene Monomer
- O-Ring: Rubber (EPDM) Ethylene-Propylene Diene Monomer
- Sizes: M20
- EMI (RFI): Ready
Locking Nuts Sold Separately!
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 0.79" (20 mm) |
|---|---|
| Body Length (B) | 1.06" (27 mm) |
| Thread Length (D) | 0.24" (6 mm) |
| Wrench Flat (F1) | 0.87" (22 mm) |
| Wrench Flat (F) | 0.94" (24 mm) |
PDF DOWNLOADS
Catalog Page-
Features
VariaPro
-
- is suitable for applications that need a
Small Space Saving Solution, that is EMI (RFI) Ready.
- Operating Temperature: -40°C to 100°C (-40°F to 212°F)
- Housing: Nickel Plated Brass
- Form Seal: Rubber (EPDM) Ethylene-Propylene Diene Monomer
- O-Ring: Rubber (EPDM) Ethylene-Propylene Diene Monomer
- Fire Protection: DIN EN 45545-2 & DIN EN 45545-3
- Impact Resistant: 7 Joule (According to DIN IEC 62444)
The VariaPro has a striking slim structure making this cable gland a space saving solution.
It is easily installed and has an integrated EMI (RFI) ready feature as a standard option.This VariaPro cable gland is available in four sizes M20, M25, M32 and M40. Thanks to the intelligent combination of seal inserts and reducers, VariaPro can accommodate cables of diameters from 0.28″ to 1.26″ (7 to 32 mm).
-
-
Materials
- Fittings: Nickel Plated Brass
- Form Seal: Rubber (EPDM) Ethylene-Propylene Diene Monomer
Operating Temperature
-40C° to 100C° (-40°F to 212°F) APPROVALS
