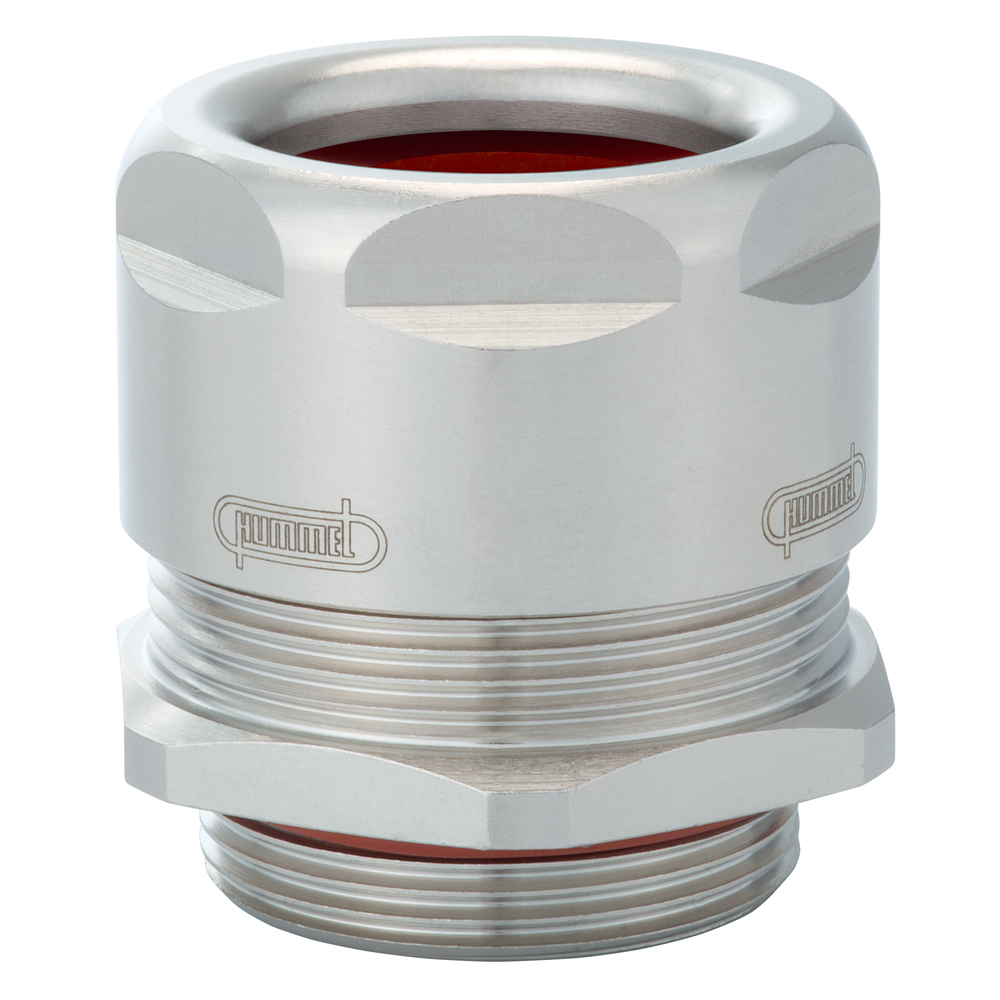

Sealcon #: VT22MR-BR
Cable Range: 0.28" - 0.55" (7 to 14 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel #: 1.751.2000.50
Suitable for application with “Extremely Low or High Temperatures”
- Operating Temperature: -60°C to 200°C (-76°F to 392°F)
- Cable Range: 0.28″ – .55″ (7 – 14 mm)
- Housing: Nickel Plated Brass
- Form Seal: Silicone (VMQ)
- O-Ring: Silicone (VMQ)
- Sizes: M20
- EMI (RFI): Ready
Locking Nuts Sold Separately!
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 0.79" (20 mm) |
|---|---|
| Body Length (B) | 1.06" (27 mm) |
| Thread Length (D) | 0.24" (6 mm) |
| Wrench Flat (F1) | 0.87" (22 mm) |
| Wrench Flat (F) | 0.94" (24 mm) |
PDF DOWNLOADS
Catalog Page-
Features
VariaPro Temp
-
- is suitable for application with
“Extremely Low or High Temperatures”
- Operating Temperature: -60°C to 200°C (-76°F to 392°F)
- Housing: Nickel Plated Brass
- Form Seal: Silicone (VMQ)
- O-Ring: Silicone (VMQ)
The slim structure of the VariaPro is striking. It thereby meets the requirements for a space saving solution. In addition this cable gland is easily installed. The EMI (RFI) feature is already integrated as standard solution. The housing is made of nickel plated brass.
This VariaPro Temp cable gland is available in four sizes M20, M25, M32 and M40. Thanks to the intelligent combination of seal inserts and reducers, VariaPro Temp can accommodate cables of diameters from 0.28″ to 1.26″ (7 to 32 mm).
-
-
Materials
- Fittings: Nickel Plated Brass
- Form Seal: Silicone
Operating Temperature
-60C° to 200C° (-76°F to 392°F) APPROVALS
