Sealcon #: WP1006B
Size: WP ENYCASE B
Material: WP 180 x 130 x 77 mm
Hensel #: WP 1006 B
Cover screws and mounting screws included.
1.5-6 mm², Cu 3~
With terminals
5-pole per pole 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 2 x 10 mm² r / f
Cable entries via knockouts

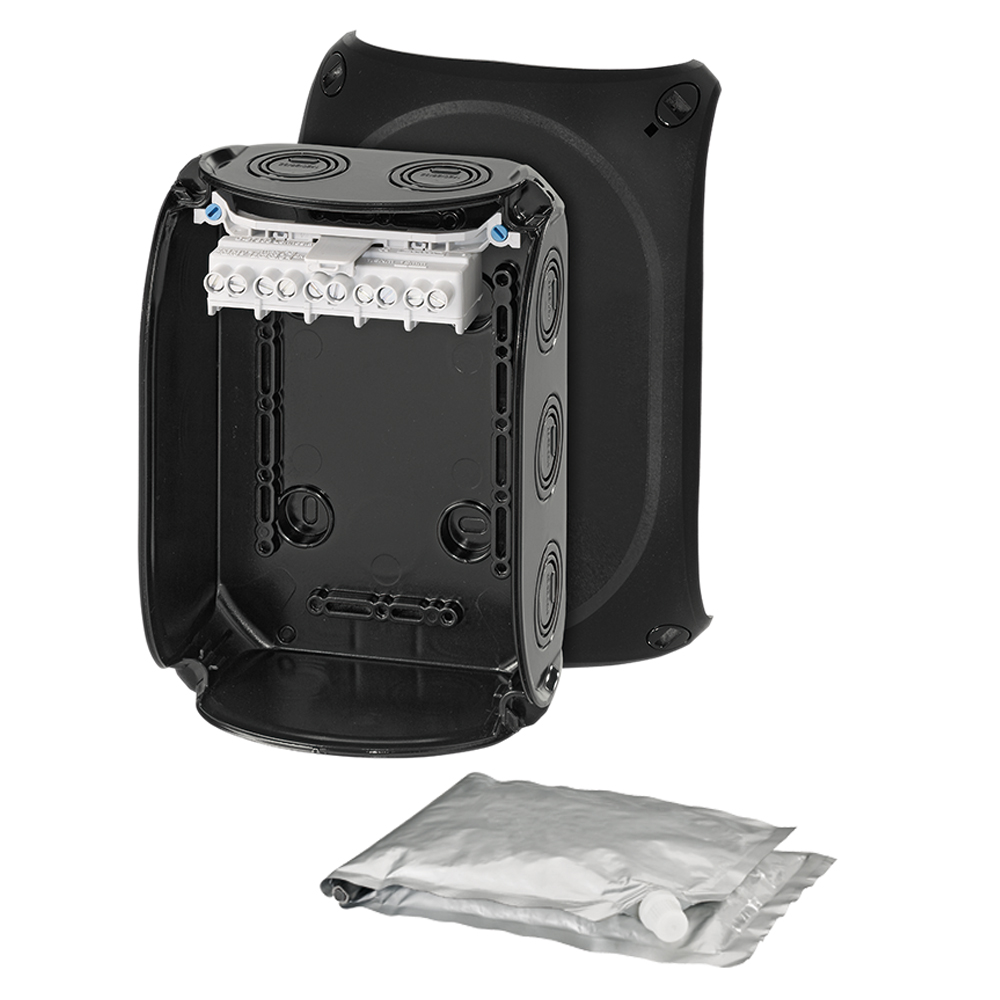

Cable junction box for encapsulating
For ground installation without live loads or in risk of condensation formation and ingress of liquids
Usable for heating cable / heating tape up to max. 70 °C surface temperature
With sealing compound and sealing plug
In case of re-installation or testing the sealing compound can be removed easily
Durability of sealing compound to processing ≥ 12 months at a storage temperature of 5 – 50 °C
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 40 A
Material PC-GFS (polycarbonate)
Width 180 mm
Height 130 mm
Depth 77 mm
Weight 1,696 kg
Tightening torque for terminal 1.5 Nm
In accordance with EN 60670-1
DIN VDE V 0606-22-100
VDE approval VDE (Association of German Electrical Engineers)
