Sealcon #: WP1006G
Size: WP ENYCASE G
Material: WP 180 x 130 x 77 mm
Hensel #: WP 1006 G
Cover screws and mounting screws included.
1.5-6 mm², Cu 3~
With terminals
5-pole per pole 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 2 x 10 mm² r / f
Cable entries via knockouts, order AKM separately (see cable entry systems LES)

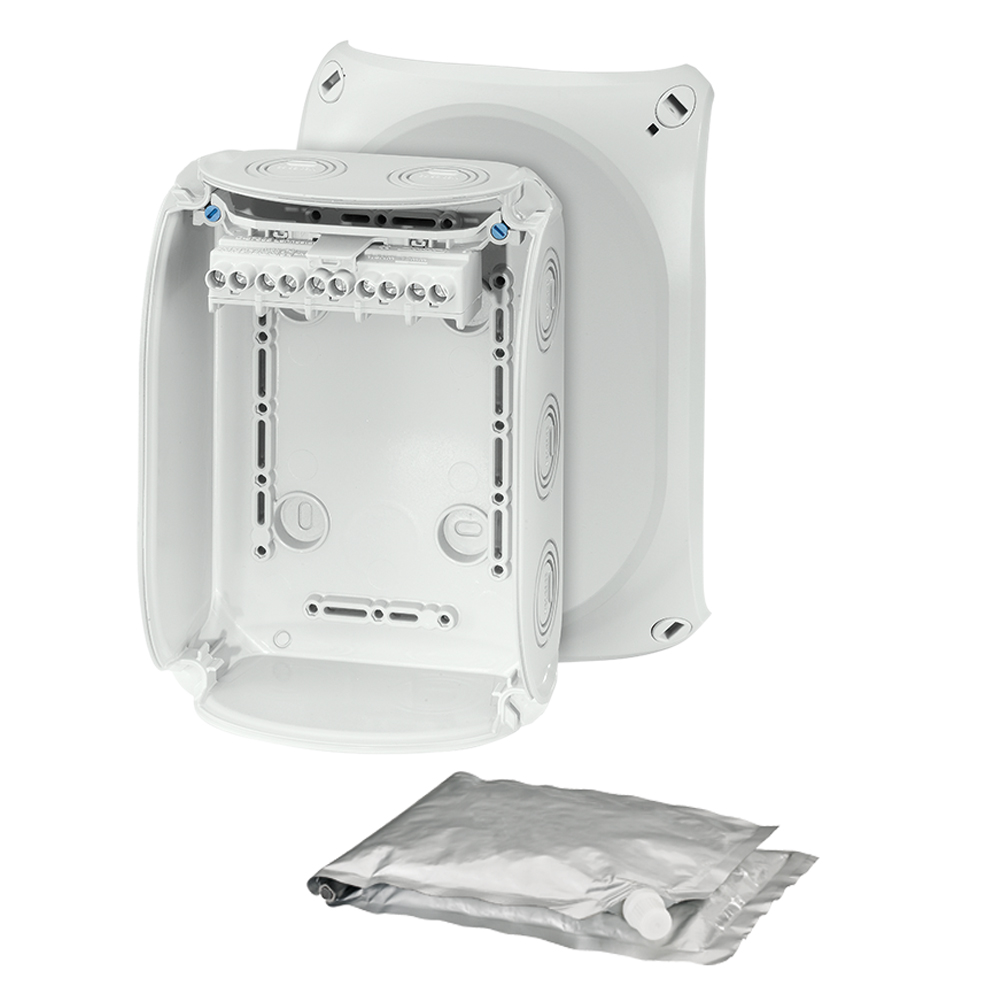

Cable junction box for encapsulating
For ground installation without live loads or in risk of condensation formation and ingress of liquids
Usable for heating cable / heating tape up to max. 70 °C surface temperature
With sealing compound and sealing plug
In case of re-installation or testing the sealing compound can be removed easily
Durability of sealing compound to processing ≥ 12 months at a storage temperature of 5 – 50 °C
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 40 A
Material PC-GFS (polycarbonate)
Width 180 mm
Height 130 mm
Depth 77 mm
Weight 1,687 kg
Tightening torque for terminal 1.5 Nm
In accordance with EN 60670-1
DIN VDE V 0606-22-100
VDE approval VDE (Association of German Electrical Engineers)
