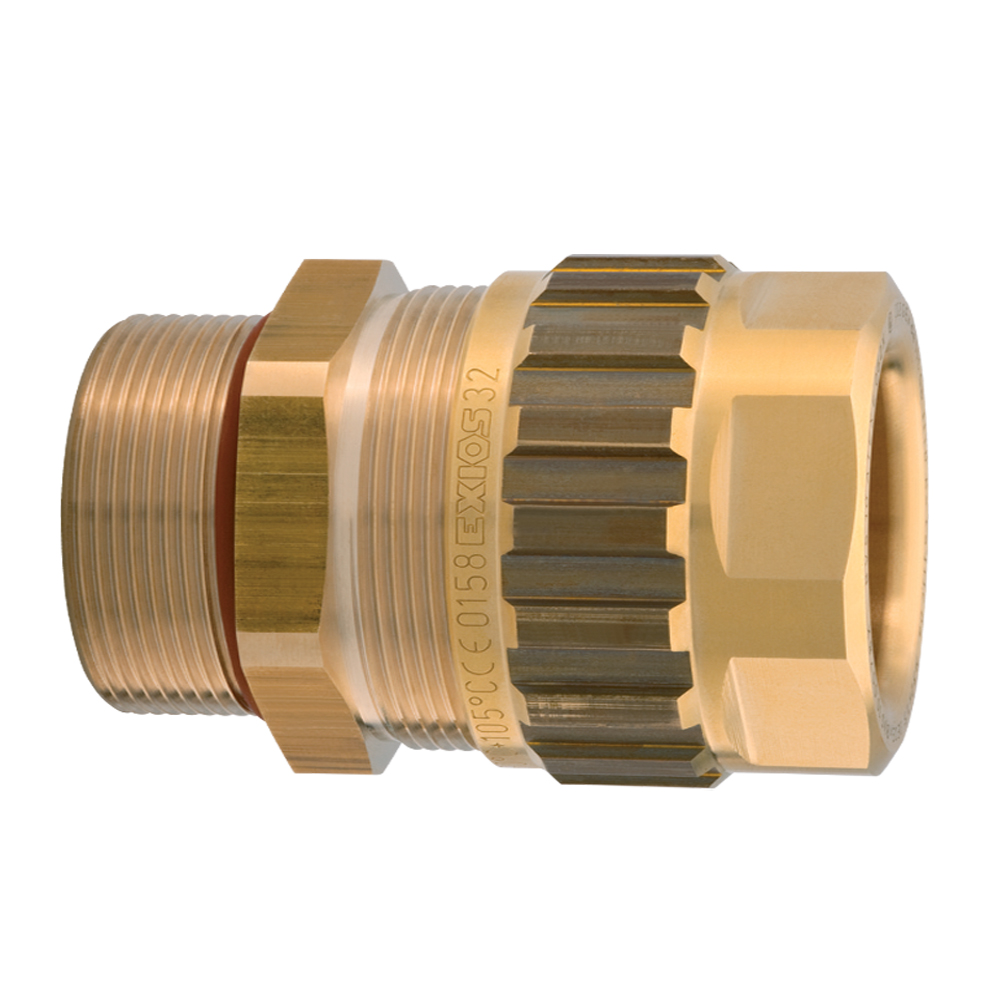

EXIOS A2F – Dual Certified Ex-de or Ex-d/Ex-e Cable Glands 3/4″ NPT | YA21NK-BB

YA21NK-BB

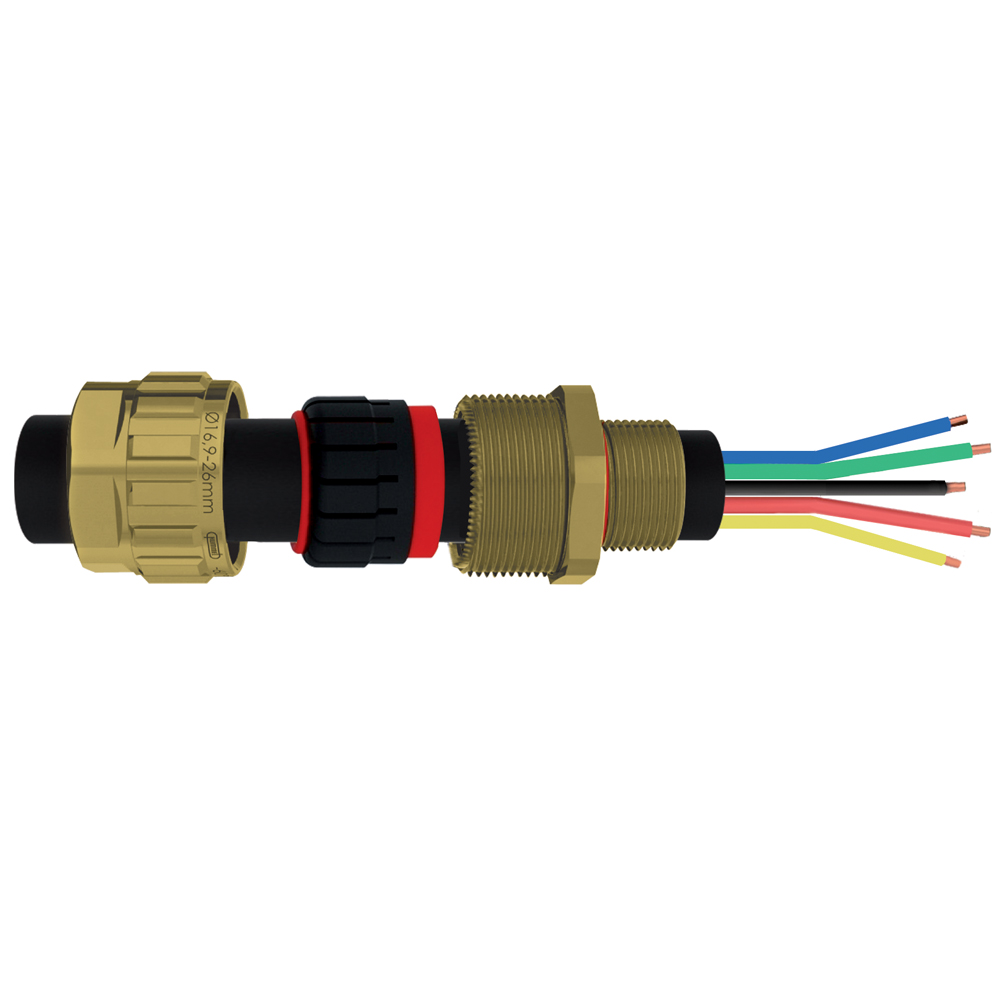

YA21NK-BB cable gland exploded view
3D CAD VIEWER
Sealcon #: YA21NK-BB
Material: Raw Brass
Hummel: EXIOS A2F
Hummel #: 1.608.3400.70
Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)1.05" (26.7 mm)
Body Length (H)1.87" (47.5 mm)
Thread Length (GL)0.81" (20.5 mm)
Wrench Flat (F1)1.18" (30 mm)
Cable Range 1.49 - .81" (12.5 - 20.5 mm)
Gland Size20-3
Outer Diameter (D)1.38" (35 mm)
  • Materials
    • Form Seal: silicone, VMQ
    Operating Temperature
    -60C° to 105C° (-76°F to 221°F)
