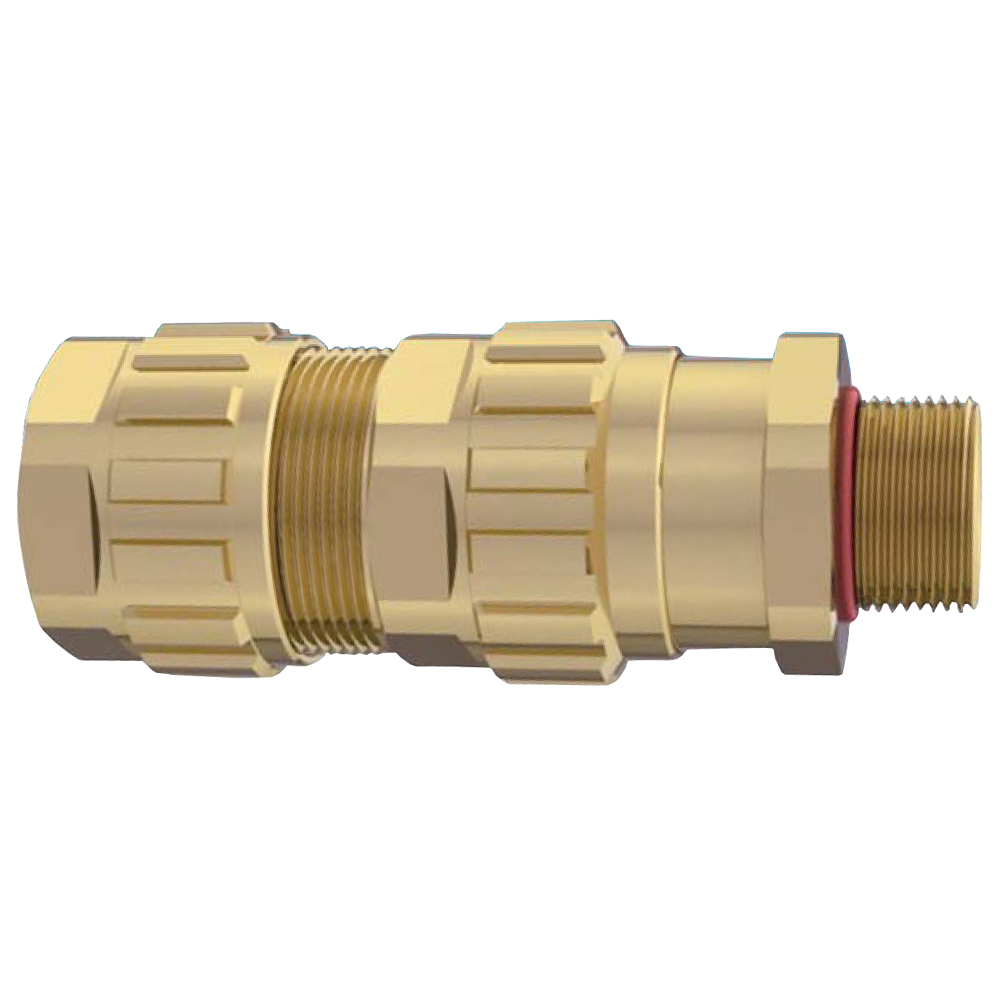

EXIOS Barrier Gland Dual Certified Ex-de or Ex-d/Ex-e Cable Glands 1/2" NPT

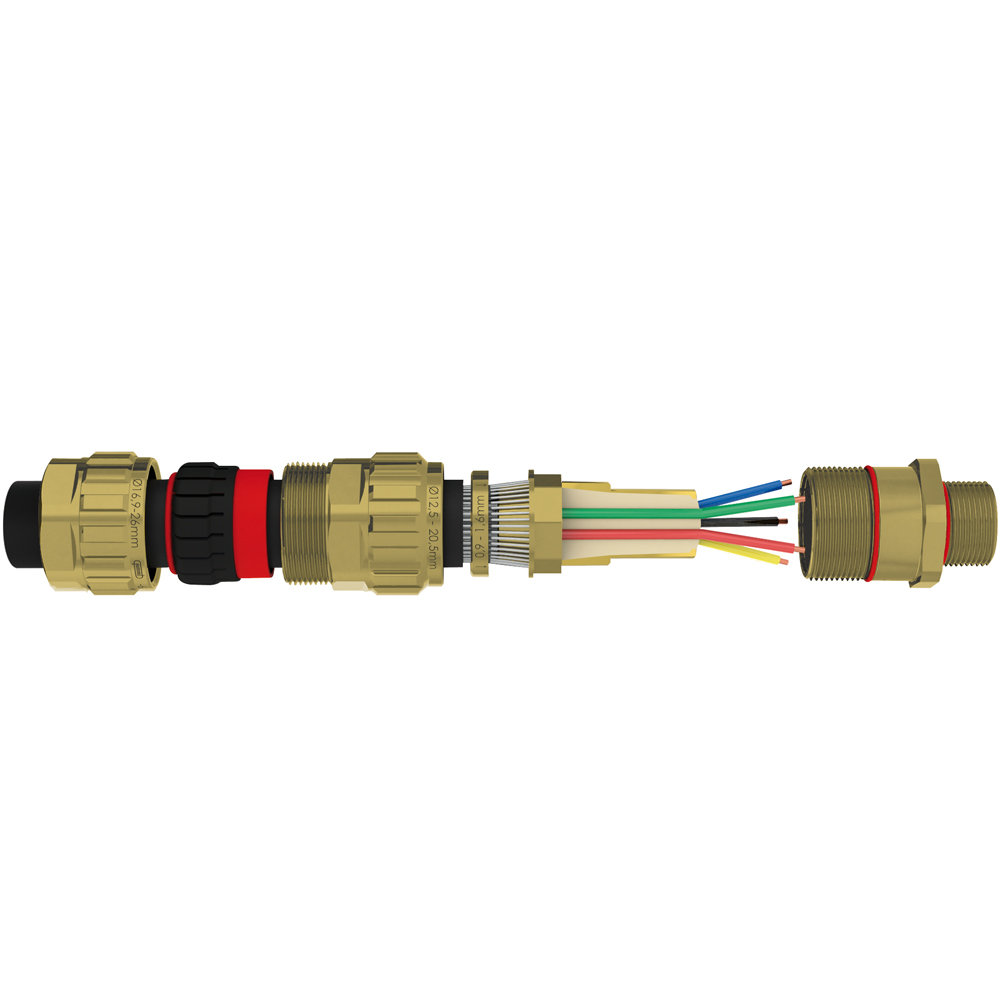

YP13NM-BB cable gland exploded view

Sealcon #: YP13NM-BB

Material: Raw Brass

Hummel: EXIOS Barrier

Hummel #: 1.606.1200.70

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

Body Length (B)	2.68" (68,0 mm)
Thread Length (D)	0.79" (20 mm)
Wrench Flat (F1)	0.94" (24 mm)
Gland Size	20-2
Outer Diameter (D)	1.14" (29 mm)

PDF DOWNLOADS

Materials
- Form Seal: silicone, VMQ
Operating Temperature
-60C° to 85C° (-76°F to 185°F)
Fittings:
Raw Brass(Other Available Materials)BR = Nickel Plated BrassSS = Stainless Steel 316B1 = Brass Gland with Nickel Plated Thread

Ratings:
ATEX IECEx Cable Glands - cUS Class 1, Div 2 rated Armored Cable Glands
APPROVALS
