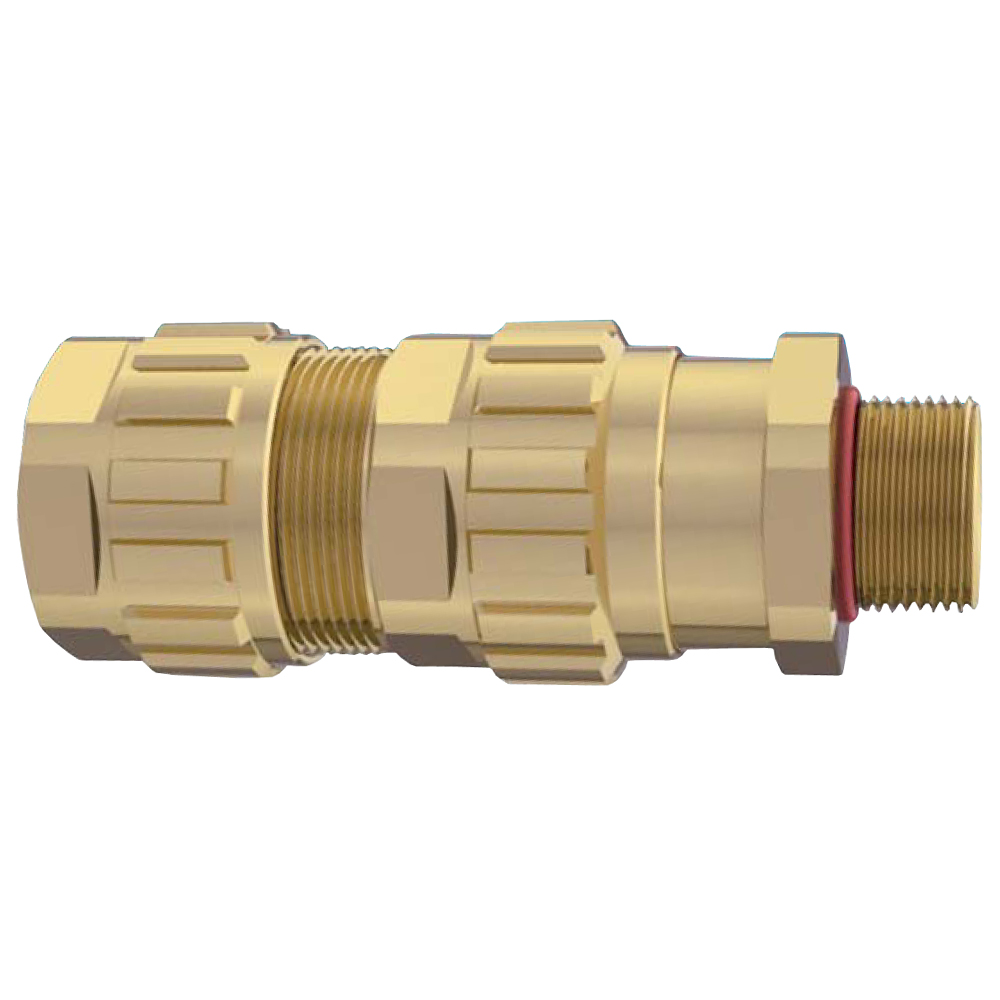

Sealcon #: YP30NK-BB
Material: Raw Brass
Hummel: EXIOS Barrier
Hummel #: 1.606.3000.70
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 3.5" (88.9 mm) |
|---|---|
| Body Length (B) | 5.37" (136.5 mm) |
| Thread Length (D) | 0.63" (16 mm) |
| Wrench Flat (F1) | 3.74" (95 mm) |
| Cable Range 1 | 2.24 - 3.07" (57 - 78 mm) |
| Cable Range 2 | 2.69" (68.2 mm) |
| Cable Range 3 | 2.28" (58.0 mm) |
| Clamping Ring 2 | 0.06 -0.10" (1.5 - 2.5 mm) |
| Gland Size | 75 |
| Outer Diameter (D) | 4.21" (107 mm) |
-
Features
O-Ring Not IncludedMaterials Part Number Key ( Last 2 letters)
xxxxx-BB = Raw Brass
xxxxx-BR = Nickel Plated Brass
xxxxx-B1 = Brass Gland with Nickel Plated Thread.
xxxxx-SS = Stainless Steel 316 -
Materials
- Form Seal: silicone, VMQ
Operating TemperatureFittings:
-60C° to 85C° (-76°F to 185°F)
Raw Brass(Other Available Materials)BR = Nickel Plated BrassSS = Stainless Steel 316B1 = Brass Gland with Nickel Plated Thread
Ratings:
ATEX IECEx Cable Glands - cUS Class 1, Div 2 rated Armored Cable Glands
ATEX - ATmosphere Explosible
IECEx
ABS
CE approval CE (Certified European Approval)
PCT Approval
National Institute of Metrology, Standardization and Industrial Quality
German Lloyd
DET NORSKE VERITAS (DNV) Certificates
CSA approval CSA (Canadian Standard Association)
