Hole Diameter (A) | 1.26" (32 mm) |
---|---|
Body Length (B) | 3.78" (96 mm) |
Thread Length (D) | 0.63" (16 mm) |
Wrench Flat (F1) | 1.81" (46 mm) |
Cable Range 1 | .87 - 1.30" (22 - 33 mm) |
Cable Range 2 | 1.02" (26 mm) |
Cable Range 3 | .84" (21.4 mm) |
Clamping Ring 2 | 0.05 - 0.08" (1.3 - 2.0 mm) |
Gland Size | 32 |
Outer Diameter (D) | 2.05" (52 mm) |
-
Features
This Gland for armored cable is being UL tested for Class & Div 1 for Marine Shipboard cable. CSA (US) will be done for Class & Group, maybe also for Class & Div 2 during the first half of 2013. To familiarize yourselfs, a fantastic new Exios Barrier product video

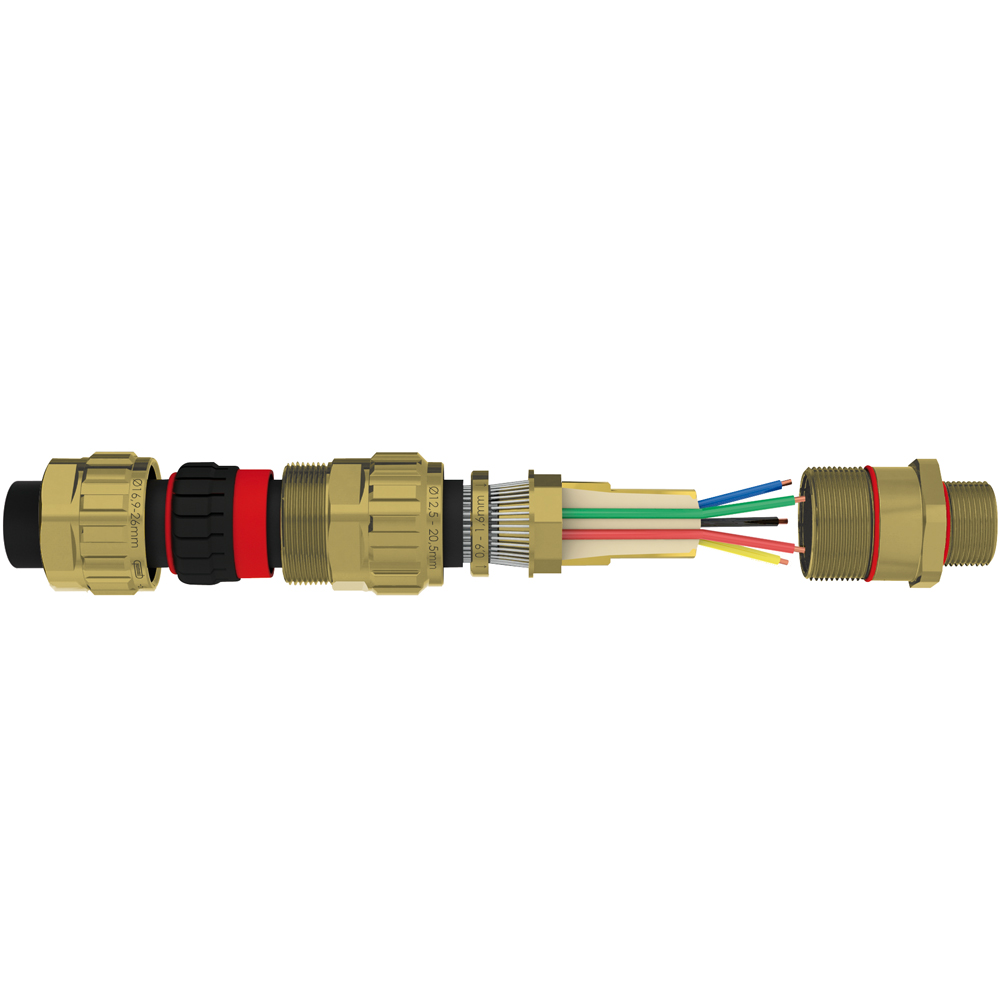

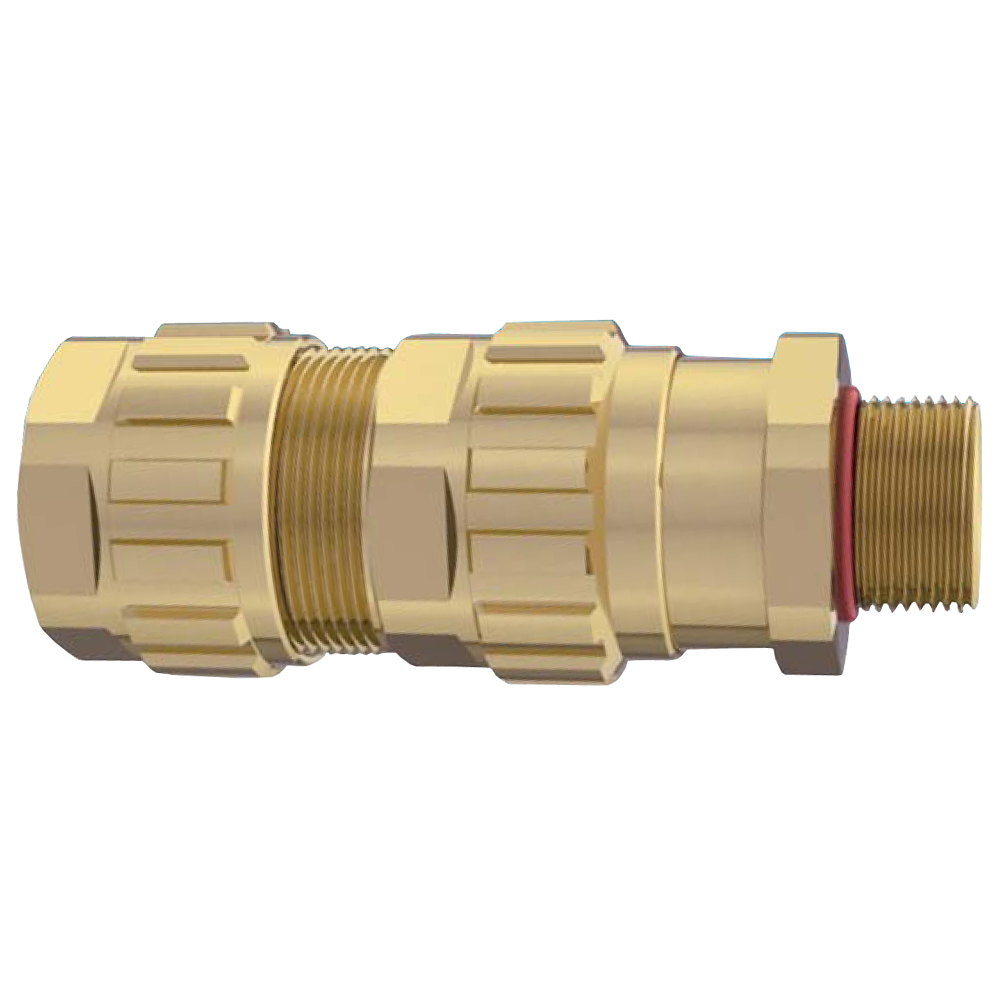

High-end Raw Cable Gland for armored cables suitable for for applications in challenging hazardous locations.
Designed for all explosion proof areas with high performance regarding reliability and tightness, e.g. marine, offshore, gas conveying machinery, refineries and chemical industry.
IECEx and ATEX certified, for use in Ex-e, Ex-d areas.ATEX
- ATEX 95 equipment directive 94/9/EC, Equipment and protective systems intended for use in potentially explosive atmospheres.
- ATEX gets its name from the French title of the 94/9/EC directive:
Appareils destinés à être utilisés en ATmosphères EXplosibles - The regulations apply to all equipment intended for use in explosive atmospheres, electrical or mechanical, including protective systems. There are two categories of equipment I for coal mining and II for industrial applications.
- Once certified, the equipment is marked by the ‘CE’ (meaning it complies with ATEX and all other relevant directives) and ‘Ex’ symbol to identify it as approved under the ATEX directive.
- Ex-e = Explosionproof (Increased Safety)
Ex-d = Flameproof (Combustible Environment)
Materials Part Number Key ( Last 2 letters)
xxxxx-BB = Raw Brass
xxxxx-BR = Nickel Plated Brass
xxxxx-B1 = Brass Gland with Nickel Plated Thread.
xxxxx-SS = Stainless Steel 316 -
Materials
- Form Seal: silicone, VMQ
Operating TemperatureFittings:
-60C° to 85C° (-76°F to 185°F)
Raw Brass(Other Available Materials)BR = Nickel Plated BrassSS = Stainless Steel 316B1 = Brass Gland with Nickel Plated Thread
Ratings:
ATEX IECEx Cable Glands - cUS Class 1, Div 2 rated Armored Cable Glands
