| Hole Diameter (A) | 1.65" (41.9 mm) |
|---|---|
| Body Length (H) | 3.72" (94.4 mm) |
| Thread Length (GL) | 0.63" (16 mm) |
| Wrench Flat (F1) | 2.17" (55 mm) |
| Cable Range 1 | 1.10 - 1.61" (28 - 41 mm) |
| Cable Range 2 | 1.31" (33.2 mm) |
| Cable Range 3 | 1.09" (27.6 mm) |
| Clamping Ring 2 | 0.05 - 0.08" (1.3 - 2.0 mm) |
| Gland Size | 40 |
| Outer Diameter (D) | 2.52" (64 mm) |
-
Features
Designed for all explosion proof areas with high performance regarding reliability and tightness, e.g. marine, offshore, gas conveying machinery, refineries and chemical industry.

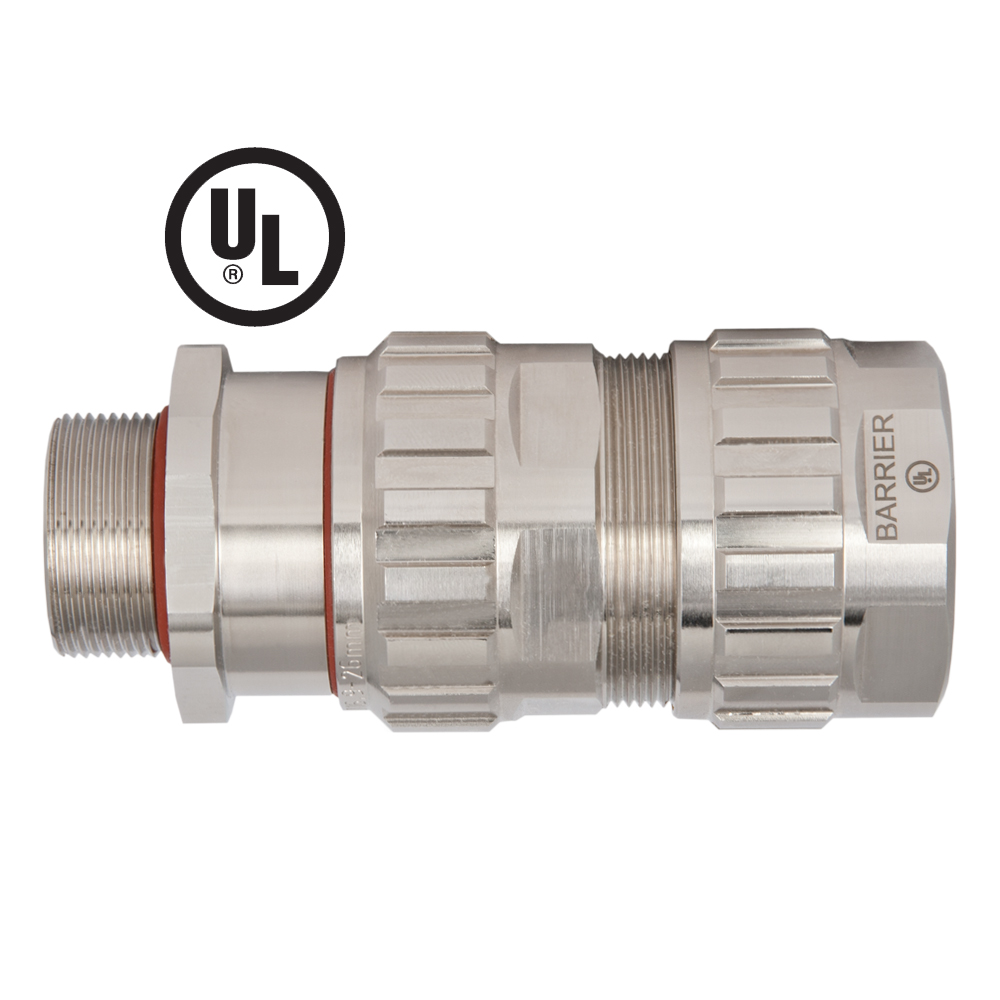

for use in Ex-e, Ex-d areas.Certification Details: EXIOS UL Barrier
UL File: E351373
Class I, Division 1 & 2, Groups C and D
Class II, Division 1 & 2, Groups E, F and G
Class III
Class I, Zone 1, AEx d IIB
Class I, Zone 1, AEx e II

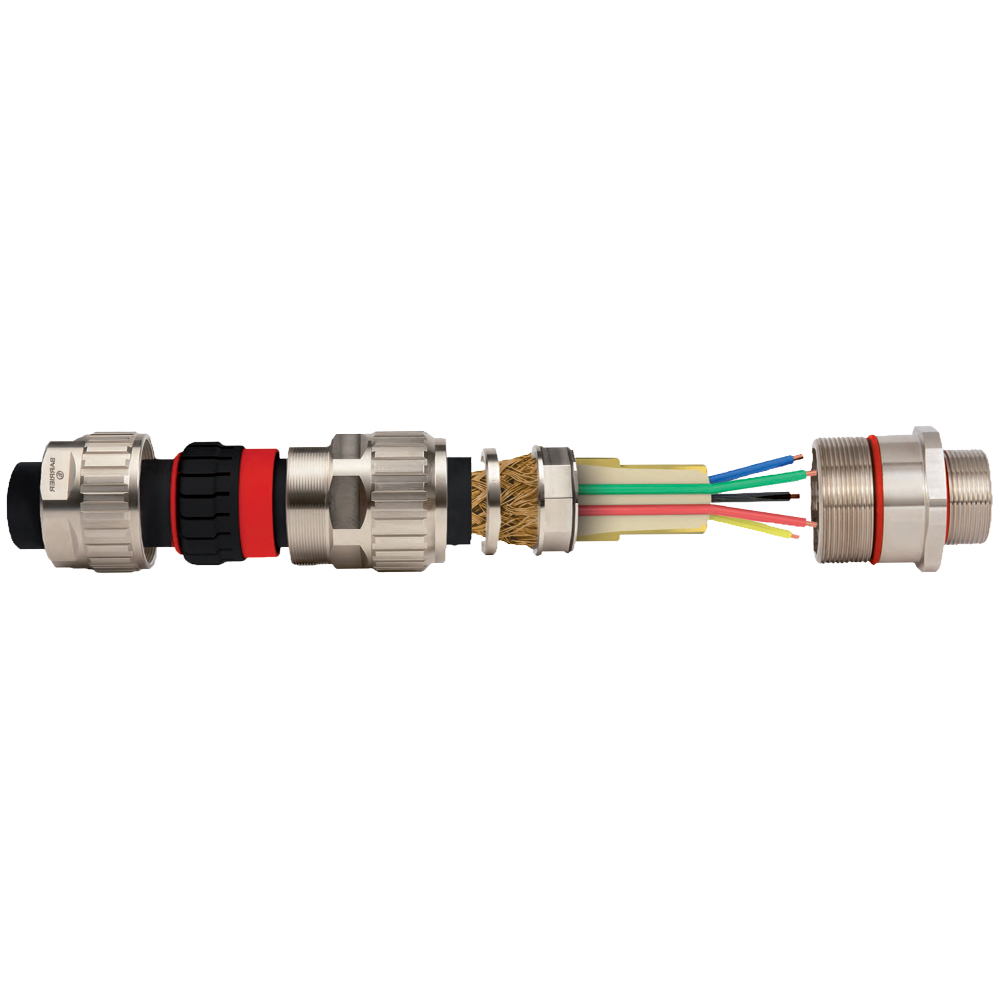

For use with armored braided marine shipboard cable
Class I, Division 2, Groups C and D
Class II, Division 2, Groups F and G
Class III
For use with unarmored marine shipboard cable
UL 2225 3rd Edition UL 514B 6th Edition
CSA C22.2 No. 174-M1984 CSA C 22.2 No. 18.3Materials Part Number Key ( Last 2 letters)
xxxxx-BB = Raw Brass
xxxxx-BR = Nickel Plated Brass
xxxxx-B1 = Brass Gland with Nickel Plated Thread.
xxxxx-SS = Stainless Steel 316 -
MaterialsOperating TemperaturePressure Rating:
-25C° to 85C° (-13°F to 185°F)
IP 68 / 5 bar
Materials:
Fittings: Raw Brass / Nickel Plated Brass
Seals: Silicone, VMQ
O-Rings: None
Clamping Insert: PA 6
Armor: Metalic Armor or Screen
Compound: Epoxy-Putty
Operating Temperature:
- 25°C to 85°C (- 13°F to 185°F)
Ratings:
UL Class 1 & 2, Div 1 rated Armored Cable Glands APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
UL approval UL (Listed Underwriters Laboratories)
ATEX type designation Flameproof and ATEX type designation Explosion Protection
